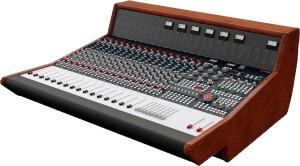

The combination of classic circuitry and modern circuitry in one console

The Custom Series 75 was designed by experienced sound engineers. Tom Misner was the driving force behind the unique features of this console.

One year labor and five (5) years parts guarantee

From 8 to 64 channels

Flexible Master Section position

Flexible Channel numbering

Fader swap and patchable insert points

Wood Panels: Rosewood, Ash, clear and black.

Redundancy broadcast power supply

Leather Handrest: black, red, blue

Optional patch bay

Dual stereo outputs (classic and modern)

Fader Automation (from mid 2011)

Retrofit HUI automation (from mid 2011)

All Direct Transformer outputs, 8 sub groups

In line design with great monitor features

Channel Strip Features

The Input Module hosts the Channel Input Selector, Gain and Trim, Phase, 48V, and High Pass Filter. All buttons are recallable using the console's scenes.

The console output stages use the Neve 1073 line amplifiers and the classic Neve 70' mic preamps including a built in high pass filter.

Each module contains two stereo (A & B) and three mono (Aux 1, Aux 2, Aux 3) Auxiliary Sends.

All features other than the level controls in the Auxiliary Section are recallable.

The 2081 EQ is based on the acclaimed 1081 EQ. It blurs the line between circuitry and musicality!

If you are familiar with the original, you will experience far cleaner and quieter output, with the same 'musical' quality.

Switchable insert point.

The Monitor path section features a rotary trim control and two selectable inputs, DAW and Line. The Pan controls are dual function and will Solo Isolate when depressed.

Retro routes the Channel path to the Retro Output Stage (voltage summing).

Switchable "retro" (transformer) or "modern" (transformerless) output

Voltage and current summing mix busses

WIMA polypropylene film capacitors

Rubycon ZLH electrolytic capacitors

Gold plated switchers and audio connectors

Stereo 2254 compressor (option)

Four stereo reverb returns

Eight recallable master scenes

Up to twelve monitoring sources

True stereo to 7.1 monitoring

Original mic pre amp from the Neve 1073

4 band EQ based on the 1073 circuitry & 1081 functionality

Five AUX sends (2 stereo & 3 mono)

Amplifying stage based on BA338

BA283 output stage

Neve LO1166 output transformers

Full technical specs on line
