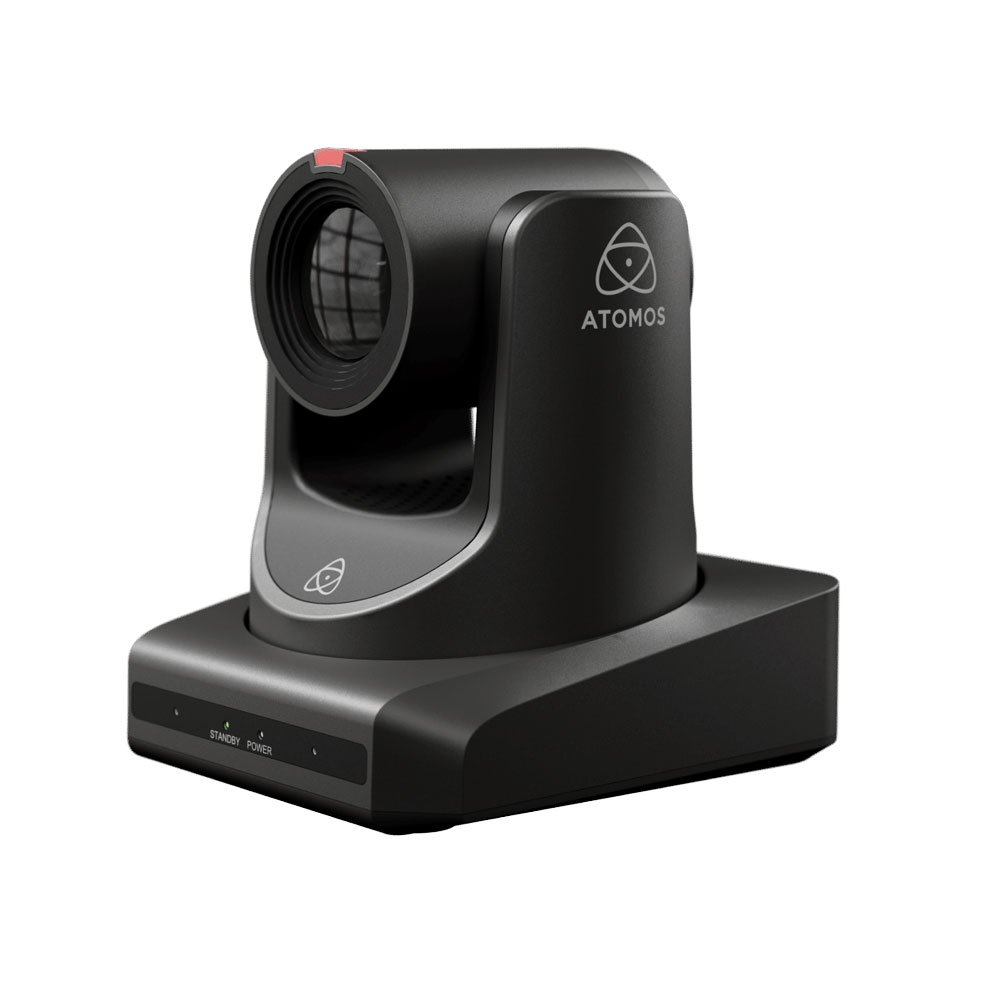

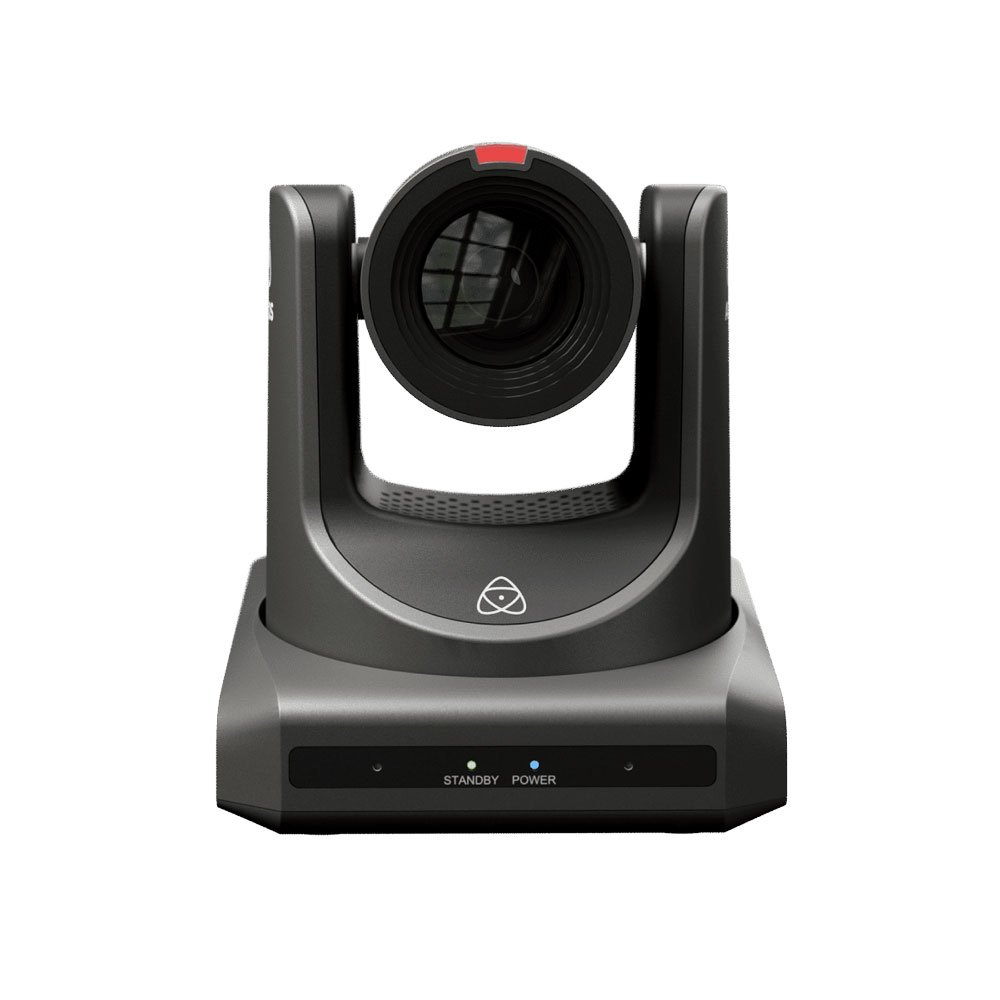

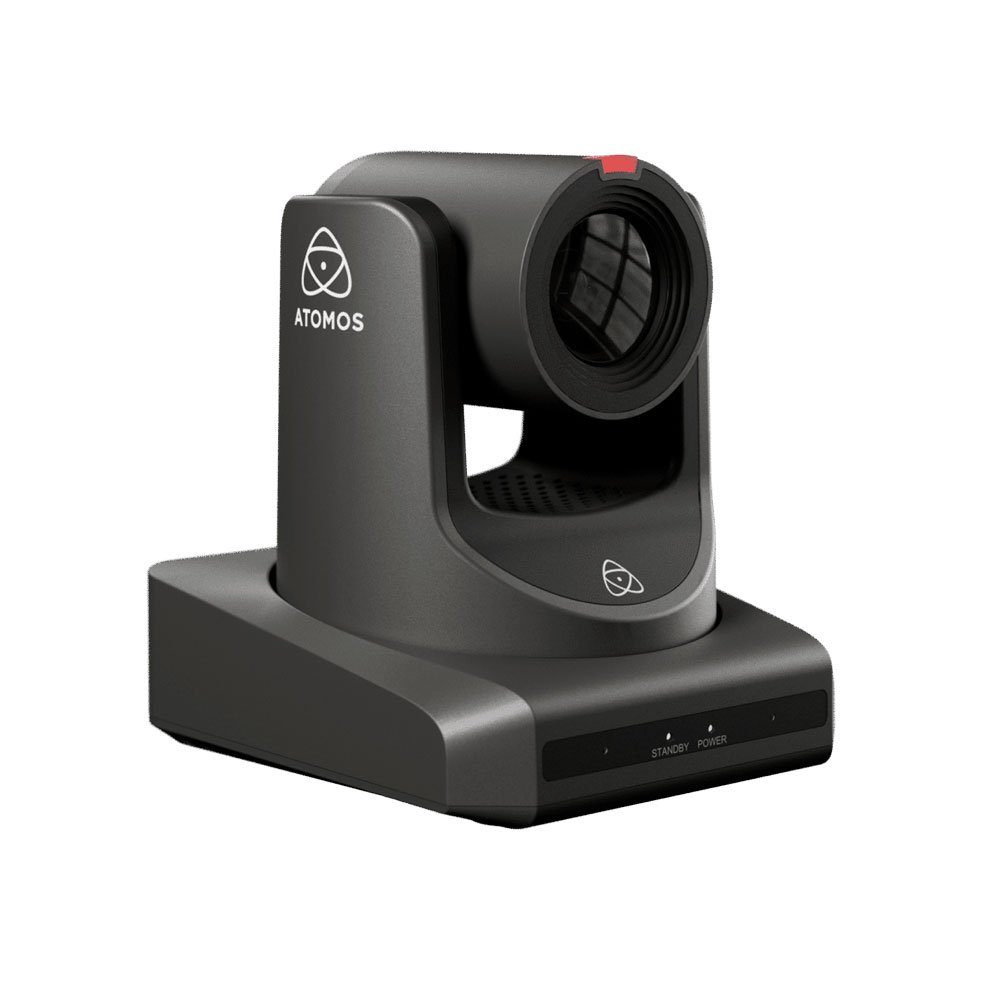

Atomos A-Eye HD-20X - PTZ Camera
MPN #ATOM-AE4K20
HD AI PTZ camera, 20x optical zoom, 170 degree pan, 30 to 90 degree tilt, auto tracking, HDMI SDI USB IP, PoE plus, 1 over 2.8 inch CMOS, 16x digital zoom, 60.7 to 3.36 degree FOV
The A-Eye HD-20X PTZ Camera is an AI-powered HD solution designed for cost-effective professional production in classrooms, houses of worship, and live events. Featuring a 1/2.8-inch CMOS sensor, 20x optical zoom, and dual built-in microphones, it captures sharp 1080p video with natural audio.
With intelligent auto-tracking and smooth PTZ movement (+/-170 degree pan and -30 degree to +90 degree tilt), the HD-20X keeps presenters and performers perfectly framed without an operator. Flexible connectivity via HDMI, SDI, USB, and IP streaming protocols like NDI HX3, RTMP, and SRT ensures seamless integration into modern production workflows.
Features
Full HD Imaging " 1/2.8" CMOS sensor with 2.07M effective pixels for sharp 1080p video.20x Optical Zoom " Capture detail from wide shots to tight close-ups.AI Auto-Tracking " Real-time subject tracking with smooth pan/tilt/zoom.Flexible Motion " +/-170 degree pan, -30 degree to +90 degree tilt, with 255 programmable presets.Streaming Ready " Supports NDI HX3, RTMP/RTMPS, RTSP, SRT, ONVIF, and more.Multiple Outputs " HDMI, 3G-SDI, USB, and network streaming.Audio Integration " Built-in dual mics plus line in/out connectivity.Low-Light Performance " 0.5 Lux minimum illumination with 2D/3D noise reduction.Compact & Durable " ABS body, 1.5 kg weight, PoE or DC12V power.Included " Remote controller, wall mount rack, RS-232 cable, USB 3.0 cable, power adaptor with 4 plugs, and Quick Start Guide.
Specifications
General Specifications
Model: A-Eye HD-20X PTZ CameraSensor: 1/2.8 inch CMOS 2.07 MPLens: 20x optical zoom f = 4.42 " 88.5 mm F1.8 " F2.8Digital Zoom: 16xMinimum Illumination: 0.5 Lux F1.8 AGC ONShutter: 1/30 " 1/10000 sSNR: greater than or equal to 55 dBDNR: 2D and 3D
Mechanical
Pan Angle: plus minus 170 degreesTilt Angle: minus 30 degrees to plus 90 degreesPan Speed: 1.7 " 100 degrees per secondTilt Speed: 1.7 " 69.9 degrees per secondPresets: 255 accuracy 0.1 degreeHorizontal FOV: 60.7 " 3.36 degreesVertical FOV: 34.1 " 1.89 degrees
Video
Scanning: ProgressiveOutput Resolutions: 1080p60 1080p59.94 1080p50 1080i60 1080i59.94 1080i50 1080p30 1080p29.97 1080p25 720p60 720p59.94 720p50Compression: YUY2 MJPEG H.264Formats: YUY2 max 1080p at 5 fps H.264 AVC max 1080p at 30 fps
Network Streaming
First Stream Resolutions: up to 1920x1080Second Stream Resolutions: up to 1280x720Video Bitrate: 32 kbps to 20480 kbpsControl: CBR or VBRFrame Rate: 1 " 60 fpsAudio Compression: AAC at 96 128 or 256 kbpsProtocols: NDI HX3 TCP IP HTTP RTSP RTMP RTMPS ONVIF DHCP SRT Multicast
Audio I O
Built in dual microphone frequency response 100 Hz to 16 kHzInput: Line In 3.5 mmOutput: Line Out 3.5 mm HDMI USB
Control Interfaces
RS 485: 2 pin Phoenix max 1200 m VISCA Pelco D Pelco PRS 232 In: 8 pin Mini DIN max 30 m VISCA Pelco D Pelco PRS 232 Out: 8 pin Mini DIN VISCA network onlyUSB: USB 2.0 Type A supports UVC 1.1 1.5 and PTZ control

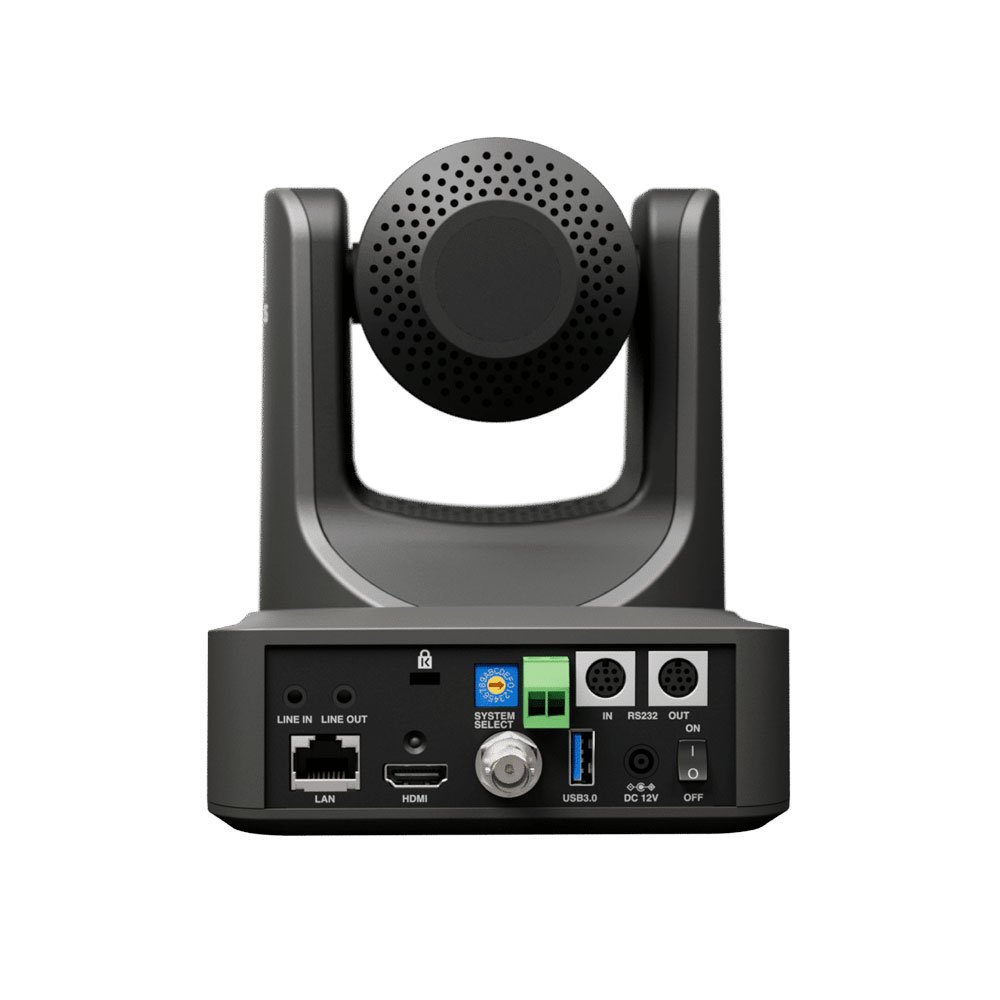

Connectivity
Ethernet: 10 100 MbpsSDI: 3G SDI BNC 800 mVp p 75 Ohm SMPTE 424MHDMI: HDMI version 1.3Power Input: DC 12V JEITA type or PoE plus 802.3atPower Consumption: Max 15 W
Physical
Dimensions W x H x D: 139.2 x 176.5 x 165.8 mmWeight: 1.5 kgOperating Temperature: up to 40 degrees CelsiusBody: ABS
Indicators
Tally Light: YesPower On Indicator: Yes
Package Contents
A-Eye HD-20X PTZ cameraRS 232 serial cable 2 mUSB 3.0 A A cable 1.5 mLens coverRemote controllerAccessory trayWall mount rackScrew packPower adaptor with 4 plugsQuick Start Guide
Warranty
1 year standard2 years with product registration
