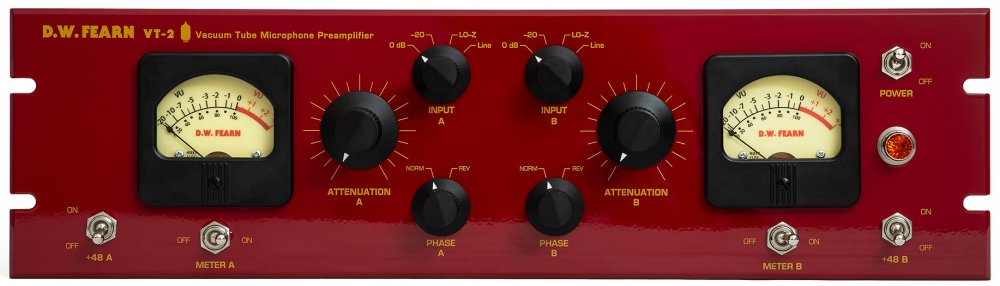

D.W. Fearn VT-2

The D.W. Fearn VT-2 is A Dual Channel Vacuum Tube Microphone Preamplifier.

The VT-series microphone preamplifiers will change the way you think of audio quality. The transparency is astounding. Vocals sound smoother, warmer, more intimate, with a compelling presence. Any microphone and any sound will benefit from the improved clarity, definition, and lack of solid-state artifacts.

The D.W. Fearn VT-2 recreates the sound of classic tube preamps of the 1960s. Modern components and computer-optimized circuitry, unavailable during the vacuum tube era, elevate this design to a new level of performance.

Design Philosophy
In designing the VT-2, no compromise in sonic quality, reliability, or ruggedness were permitted. Like the best tube equipment of the 1950s and '60s, the VT-2 is built on a heavy-guage aluminum chassis, utilizing point-to-point wiring. Each vacuum tube is selected for minimum noise and microphonics, and maximum sonic clarity. The front panel switches control sealed, gold-contact precision relays for all audio switching, eliminating the possibility of dirty contacts degrading the sound and minimizing the internal audio path. Four class-A triode amplifier sections (in two tubes) in each channel comprise the entire active circuit. This surprisingly simple circuit, along with top-quality components and careful design optimization, results in the sonic superiority that the VT-2 has become known for.

All over the globe, VT-2 preamps are in daily use in the world's best studios, as well as in home project studios, helping many top recording artists achieve the best possible sound.
  • all vacuum-tube design
  • clean and airy high end
  • fat low end
  • unsurpassed warmth, transparency, and musicality
  • Lo-Z input position for superior performance with transformerless mics
  • Phase (polarity) reverse switch
  • +48 volt phantom power (completely disconnected when off)
  • custom-design Jensen input and output transformers for superb sonics
  • 20 dB input pad (switchable)
  • true VU meters (amplifier isolated)
  • all point-to-point audio wiring
  • high-performance, fully-regulated power supplies with exceptional reserve
  • gold input and output XLR connectors
  • polypropylene and polystyrene coupling capacitors
  • all audio switching through gold-contact, sealed precision relays
  • international operation on 100, 120, or 220 VAC, 50/60 Hz
  • CE certified, RoHS-compliant
  • +4 dBm output
  • - Conservatively rated precision components and rugged construction for stability and long life
  • line-level processing with the LP-1 Line Padaccessory
  • - Single-channel version D.W. Fearn VT-1 also available
    - direct recording of electric instruments with the D.W. Fearn VT-3 Vacuum Tube DI or PDB Passive Direct Box
  • Input 150 ohms
  • Input Load Impedance 1.5k ohms
  • Minimum Input Level -65 dBm nominal
  • Maximum Input Level @ 20 cps -30 dBm without pad, -5 dBm with 20 dB pad
  • Gain 53 dB
  • Frequency Response +/-0.25 dB 20 cps to 20 kc; -3 dB @ 0.5 cps and 55 kc
  • THD+Noise less than 0.25% 20 cps to 20 kc
  • Intermodulation Distortion SMPTE less than 0.02%
  • Signal to Noise Ratio 74 dB minimum
  • Equivalent Input Noise -124 dBm maximum
  • Output low-Z, transformer-balanced
  • Maximum Output Level +22 dBm, 20k ohm load
  • Power Requirements 100, 120, or 220 VAC, 50/60 Hz
  • Dimensions 19" (48.26cm) W, 5.25" (13.34cm) H, 14" (35.56cm) D
  • Weight 18 lbs (8.16kg)

  • NOTE: Frequency is specified in cycles per second (cps) or kilocycles per second (kc). These units correspond to Hz and kHz respectively. Measurements made with -50 dBm input and 50 dB gain in a 22 cps to 22 kc bandwidth. Specifications and price subject to change without notice.
    Price *
    Free shipping in Canada. Conditions
    1 Day
    3 Days
    5 Days
    12 Days
    28 Days
    Additional information
    For more information about the VT-2, please visit the website of D.W. Fearn
