Automatic mixing controller with balanced analog I/O for 12 Analog plus 16 ADAT channels of processing



The Dugan Model E-2A Automatic Mixing Controller helps professional audio mixers handle multiple live mics without having to continually ride their individual faders. This signal processor can be patched into the input insert points of an audio mixing console. Then each mic channel is processed in the Dugan controller and returned to the console for mixing. Alternatively, internal mix buses in the Model E-2A can be used to sum channels.
The Dugan detects which mics are being used and makes fast, transparent cross- fades, freeing the mixer to focus on balance and sound quality instead of being chained to the faders. The Model E-2A crossfades unscripted dialogue which eliminates cueing mistakes and late fade-ups. It also reduces comb filtering from adjacent mics while avoiding the choppy and distracting effects common to noise gates.
  • 28 channels of processing, 12 Analog plus 16 ADAT
  • All Dugan algorithms: Speech System, Music System and Gain Limiting
  • Six-bus pre/post matrix mixer
  • Channels may be grouped into three independent automixers
  • Four switched Ethernet ports available for control network
  • Remote control from Dugan Control Panel for Java (included) and Dugan Control Panel for iPad (sold separately)
  • Physical remote control from Dugan Model K Control Surface (sold separately)

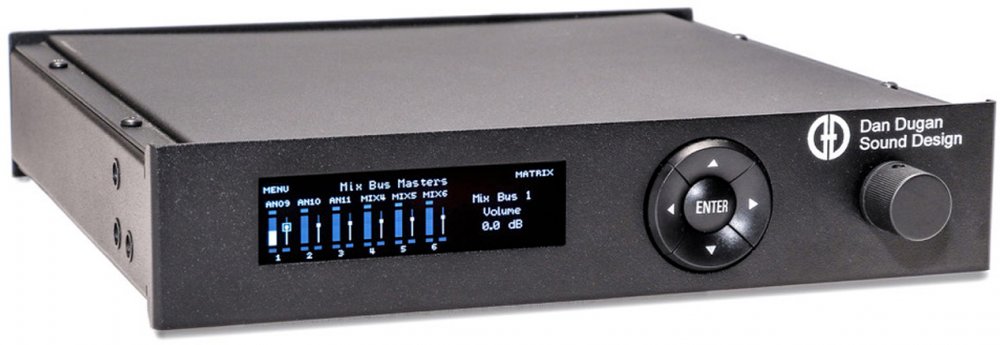

  • Miniature control panel for setup or adjustments from front panel Standard Dugan linking for larger systems
  • audio
    analog i/o: 12 inputs active balanced, 12 outputs balanced and cross-coupled
    digital i/o: 8 inputs, 8 outputs, ADAT optical
    Linking disabled: LINK connectors reassigned as ADAT I/O 9-16
    gain: Unity
    sample rate: Analog: 48 kHz, Digital: 48 or 44.1 kHz (synchronizes to input)
    bit depth: 24 bit
    audio latency: 1.8 ms
    frequency response: 20 Hz to 12 kHz +/- 0.05 dB, 20 Hz to 20 kHz +/- 0.2 dB
    output noise: -87.5 dBu
    maximum output: +22 dBu
    distortion: 0.003% (THD + N)
    linking: Up to 8 units can be linked into one system in an optical ring network

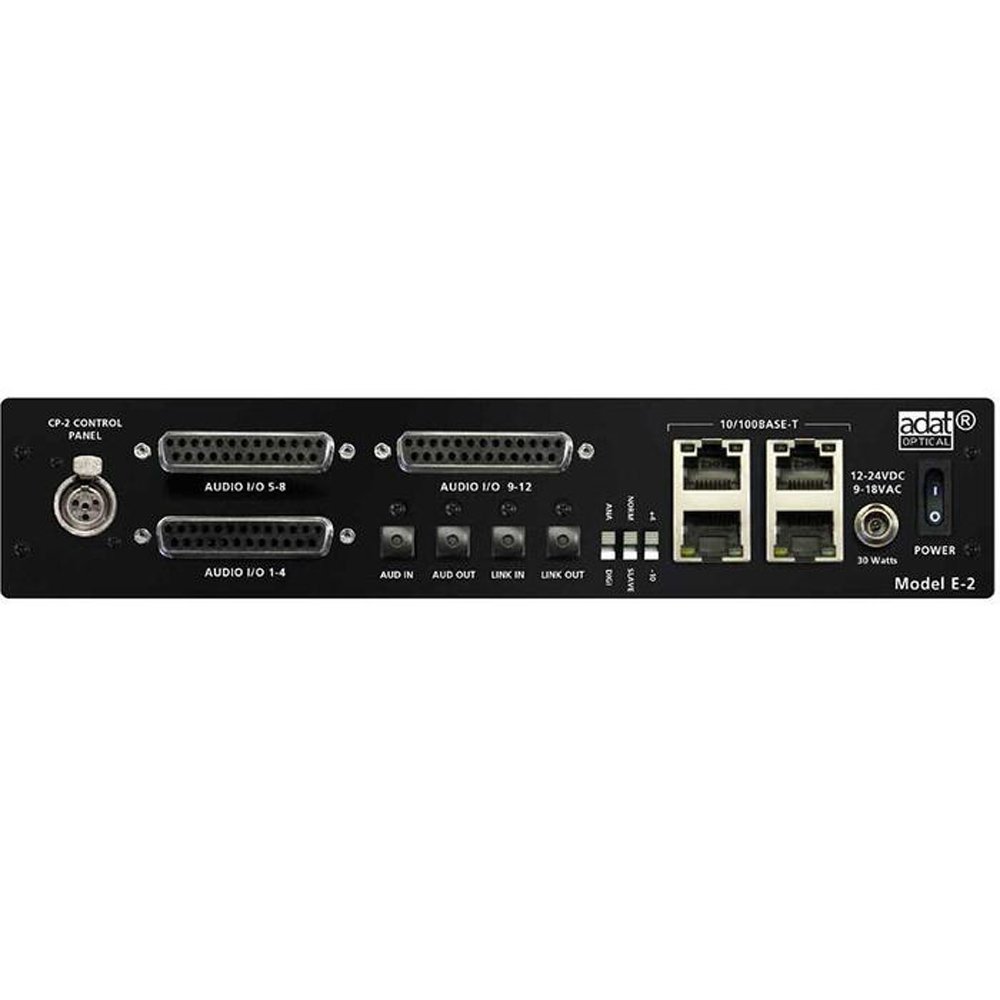

    connectors
    audio: Analog: 3x DB25 wired to TASCAM digital audio pinout Digital: ADAT optical I/O
    control: 4 x RJ45: Four-port internal switch for network
    Linking: ADAT optical with proprietary format, reassigned for audio I/O when linking disabled

    power
    connector: Coaxial with locking collar, 5.5 mm o.d., 2 mm i.d., center positive
    electrical: Nominal 12 VDC, 1.5 A maximum; accepts 12"24 VDC
    external supply: Input: 100-240 VAC, 50-60 Hz, 30W Output: 18 VDC, 1.33 A Approved UL, CE

    physical
    dimensions: Height = 1.75 in (4.5 cm) Depth = 8.3 in (21 cm) Width = 8.75 in (22.2 cm)
    rack mounting: 1 RU, parts included to mount single unit or two units side-by-side
    weight: 5.9 lb (1.6 kg), 7 lb (2.6 kg) in shipping box with power supply



    Applications
    TV news and sports panels, political debates
    Conference reinforcement, video trucks
    Reality shows, game shows
    Wireless mics for theater
    Boardrooms, civic meeting rooms
    Teleconferencing and distance learning Houses of worship

    Benefits
    Eliminates late upcuts
    Reduces PA feedback and studio noise
    Reduces comb filtering from adjacent mics
