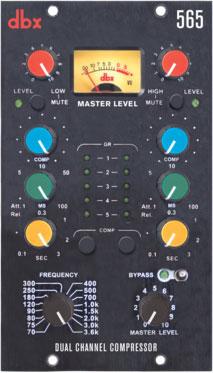

The dbx 565 Dual Comp is the ideal 500 series dual chassis optical compressor for a discriminating user who is seeking an optical compressor for their studio or live sound.


The 565 feaures Dual-channel multi-frequency-band optical compressor, Linkwitz-Riley 4th-order (24dB/octave) crossover slope, Master level display: VU meter w/ -20dBu - +3dBu range, Gain reduction LED display, Independent compression, attack time, and release time controls, Circuit bypass switch. The 565 will work in any 500 series approved power supply rack.
Features
  • 565 Dual compressor
  • Suitable for use in all 500-series-compatible systems
  • Dual-channel multi-frequency-band optical compressor
  • Linkwitz-Riley 4th-order (24dB/octave) crossover slope
  • Master level display: VU meter w/ -20dBu - +3dBu range
  • Gain reduction LED display
  • Dual input gain controls
  • 16-stage frequency range selector
  • Independent compression, attack time, and release time controls
  • Circuit bypass switch
  • Independent channel mutes
  • Master output level control
  • Specifications
  • Mic/Line Input Connectors : TRS balanced
  • Impedance : 3k Ohms
  • Mic Input Gain : 10dB to 60dB
  • Phase Reversal : Switchable
  • Phantom Power : +48V, switchable
  • Instrument Input Connector : 1/4" jack unbalanced (or XLR from back panel)
  • Instrument Input Gain : 0dB to 45dB
  • Output Connectors : XLR & 1/4" jack (back panel)
  • Line in Frequency Response : 6Hz to 40kHz within 1dB
  • Compressor Ratio : 1:1 - 10:1
  • Compressor Attack : 1ms - 100ms
  • Compressor Release : 0.1s - 3s
  • Crossover : 70Hz - 3.6kHz
  • Slope : 24dB
  • VU meter : -20dBu - +3dBu
  • THD : 0.022% (unweighted)
  • Signal to Noise : >101dB
  • Power Supply : 198ma from standard 500 series power chasis
