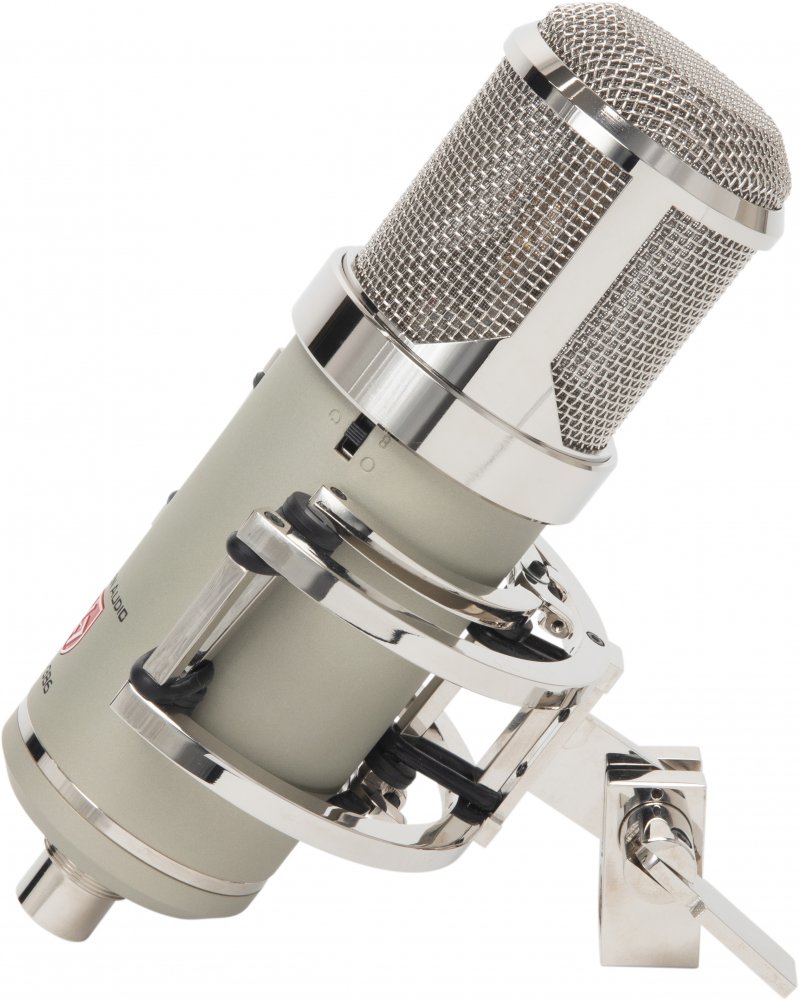

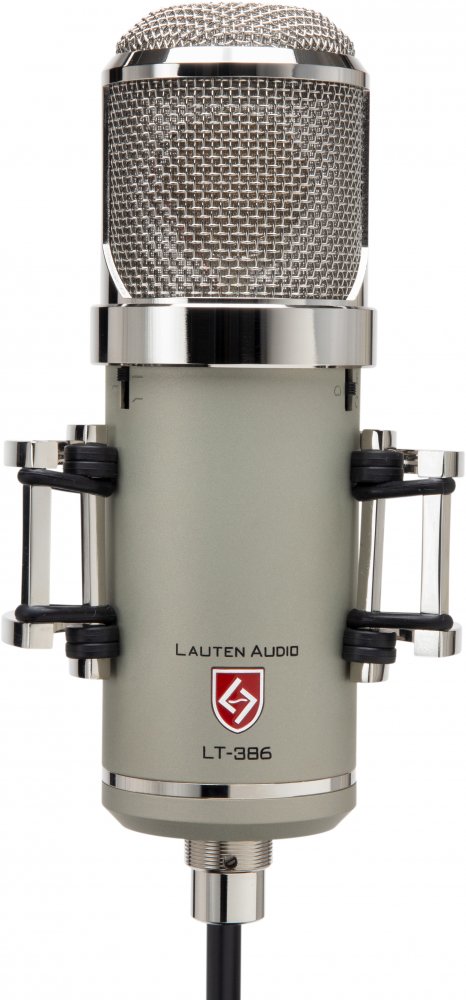

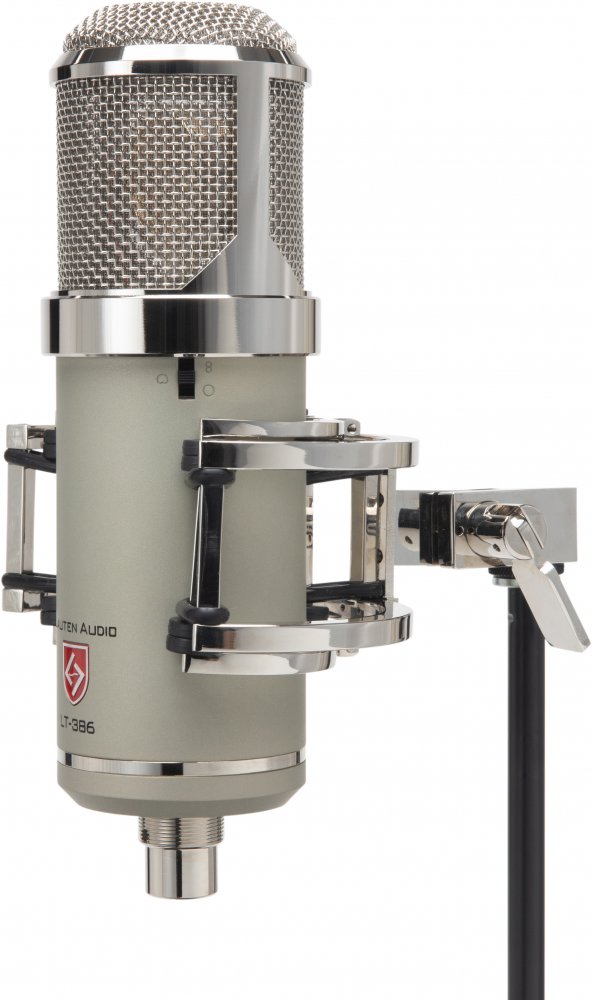

Lauten Audio Eden LT-386

The Eden LT-386 by Lauten Audio is a Multi-voicing™ vacuum tube large diaphragm condenser microphone.

The LT-386 is for discerning recordists in search of the most diverse and useful studio vacuum tube microphone. It offers a unique blend of classic and modern design theory which exhibits a smooth, rich low and mid-range as well as high mid and high timbre reminiscent of premier classic vacuum tube microphones. From its attached, semi-permanent, suspension mount, to its three different switches housed on the microphone itself, Eden offers an endless palette of sound.

Pattern switching on the microphone
The polar pattern switch gives recordists the option of choosing between Cardioid, Omnidirectional or Figure-8 polar patterns. Having the pattern switch on the microphone, rather than the power supply, allows you or the artist to quickly and easily make your selection. Although not as common today, we were inspired by the most admired classics when we decided to put this feature on the microphone itself.

Vocal and Kick-drum shaping high-pass filters
Next up we have our unique 2-stage, high-pass filters we call "Kick-shaper" and "Vocal-shaper". These filters are uniquely tuned to shape the low-end for two of the most commons trouble areas. In its default position there is no high-pass. Stage one, or the middle position, is the "Kick-shaper"; as you can probably guess, this was specifically designed for kick-drums. With its very steep cut of the low-end, it removes excess boominess that might actually take away from a big sounding kick. But feel free to try it on toms, vocals, guitars etc. Moving the switch to stage 2, or the bottom position, is the "Vocal-shaper" which is designed to clean up your vocal tracks for an amazingly smooth and classic sound. Of course, it will be useful for many more sources as well.

Proprietary Multi-voicing technology
Multi-voicing is a process that can only be achieved in the microphone itself. This is Lauten Audio's proprietary technology that uses three separate signal paths for unique frequency shaping. The multi-voicing functions in Eden are specifically designed and tuned for this microphone and are not the same as the Atlantis. But for consistency we kept the same names; Forward, Neutral and Gentle. The Gentle position provides maximum control of bright or peaky sources or to achieve a very warm, vintage vibe. Select one of the high-pass filters and you'll think you have a completely different microphone. Neutral offers a nice even response with good control over S's, and starts moving more toward a modern microphone but still wrapped in a vintage vibe. Lastly Forward opens up the microphone for that familiar "air" of classic microphones from the past with our own modern touch that Lauten Audio is known for.

Included Accessories:

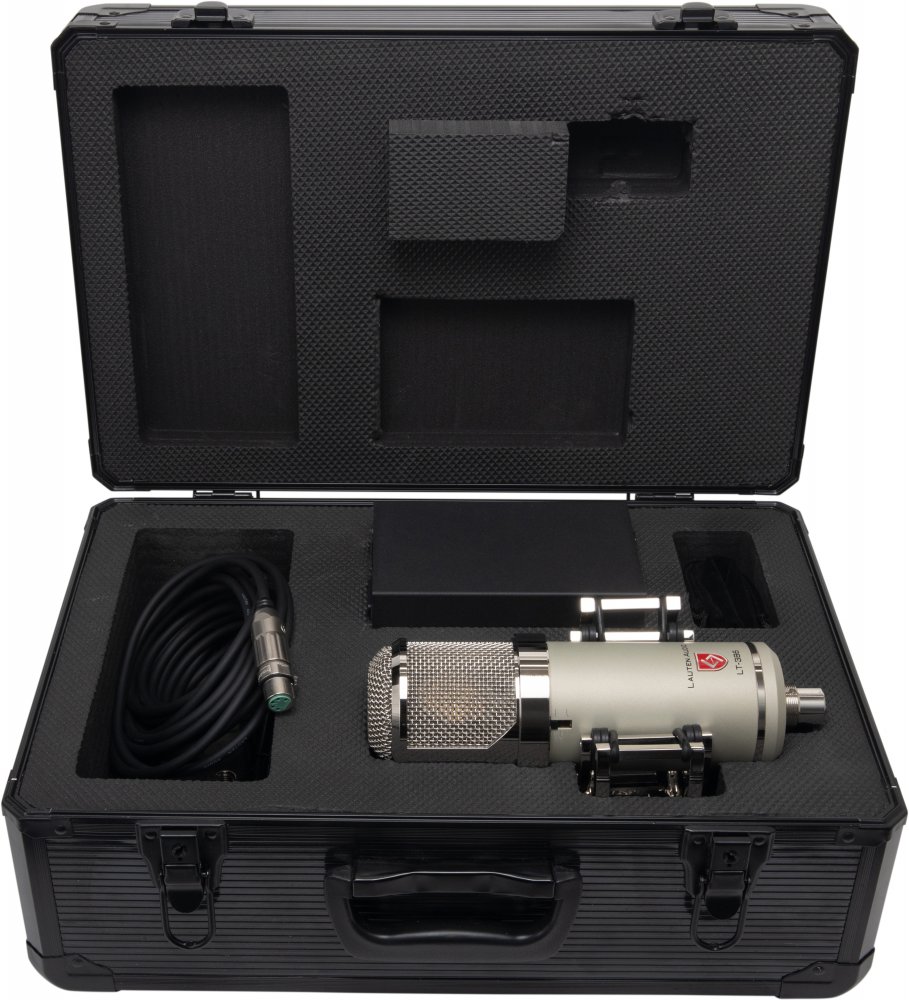

Custom cable, Custom power supply, Custom Hardcase, Suspension mount
Features
  • Designed for the most discerning ears in the business
  • Multi-voicing switch for three distinct timbres
  • Vocal shaping high-pass filter
  • Kick-drum shaping high-pass filter
  • Switchable patterns on the microphone
  • Stunning appearance, built to the hilt, refined character
  • Specifications
  • Type: 31.25mm dual large diaphragm pressure gradient transducer microphone.
  • Polar Patterns: Omnidirectional, Cardioid and Figure-8 selectable.
  • Circuit: Vacuum tube, transformer balanced
  • Frequency Range: 20Hz-20KHz
  • Dynamic Range: 120dB minimum
  • Impedance: < 200 ohms
  • Max. SPL: 0.5%THD@1000Hz: 120dB
  • Self-noise Level: < 20dB(A)
  • Sensitivity: 16mV/Pa OR -36±2dB 0dB=1V/Pa 1000Hz
  • Special Features: Kick-shaper & Vocal-shaper, High-pass filters, 3-stage Multi-voicing™ switch, Polar pattern switch
  • Connector: 5-pin XLR (PSU to microphone) and 3-pin XLR (PSU to Preamp)
  • Power Requirement: Custom power supply (100v to 240v compatible)
  • Reviews
    Price *
    $3999.00
    $2999.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the Eden LT-386, please visit the website of Lauten Audio
