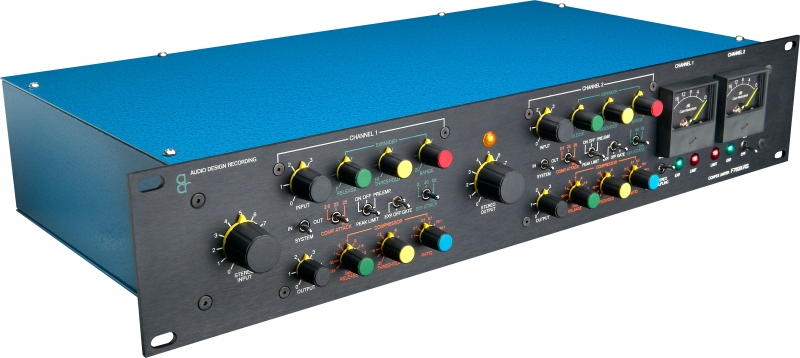

Q2 Audio Compex F760X-RS

Manufactured by Q2 Audio in close collaboration with Audio & Design, this remake of the classic Compex is authentic and reproduces the exact sonic qualities of the original.

Using the original discrete analogue circuit design employing a feedback FET technique and maintaining the use of the same components that give this product such a distinctive sound, the new Compex compressor/limiter & expander/gate will add dynamic punch to your sound as well as controlling peak excursions and gating unwanted instrument/vocal artefacts & noise.

The Compex was used by major recording artists worldwide throughout the 60's, 70's, and 80's. This famous, iconic processor was instrumental in shaping the sounds of that era. Now the Compex returns to place it's unique signature on the sounds of today.
Features
  • Dual channel/stereo level control offering simultaneous compression gain reduction with peak limiting and expansion/gating.
  • Precision calibrated compressor/limiter threshold control which allows the user to "dial up" the amount of compression required before peak limiting occurs.
  • Switched Compression values from 1:1 (amplifier), 2:1, 3:1, 5:1, 10:1 & 20:1 (limiter).
  • Ultra fast compressor and expander attack values.
  • Auto dual platform release function - allows fast transient recovery on a "build-up" slow release.
  • Specifications

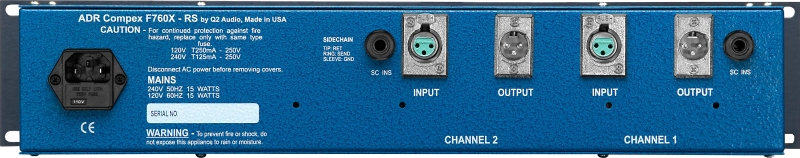

    Inputs
    3 pin XLR - Unbalanced - (pin 2 hot). Nominal imp 10K.

    Side Chain Insert
    Compressor side chain insert: Normalised 3 pole jack (type B) Tip= return, Ring= send, Sleeve= Ov.

    Output
    3 pin XLR - Unbalanced (pin 2 hot). Source Imp < 1; Maximum output level normally +18dBu - unbalanced. /T option with balancing transformers +22dBu, source Imp < 75.
    */T option: Balanced input/output fully isolated transformers to order.

    System Gain
    34dB with input/output attenuators fully open. Unity gain in Bypass mode.

    Thresholds
    Peak Limiter: +14dBu maximum with unattenuated output. Referred to unattenuated input level 20dBu.

    Compressor
    Calibrated with reference to Peak Limiter thresholds and marked 0 - 20dB in 2dB steps. (Reference to
    unattenuated input level this is -20dBu to -40dBu).

    Expander/Gate
    -40dBu to +14dBu, with reference to input.

    Release
    Peak Limiter: 250mS,
    Compressor: 25mS, 50mS, 100mS, 200mS, 400mS, 800mS, 1.6 secs, 3.2 secs + Auto release function.
    Expander/Gate: Continuously variable from 25mS to 5 secs.

    Attack
    Peak Limiter: < 250uS for 100% control of overshoot - without any over limiting. (measured at 1KHz for 10dB gain reduction).
    Compressor: 250uS, 2.5mS, 25mS.
    Expander/Gate: 20uS, 2mS, 40mS.

    Distortion
    Measured at 1KHz for 10dB compression & 3.2 secs release time.
    Compressor: at +10dBu threshold <0.1% (typically 0.04%).
    Peak Limiter: at +14dBu threshold <0.3%.

    Frequency Response
    Unbalanced: 30Hz - 20KHz, +0dB, -0.5dB.
    Balanced (/T option): < -1dB at 30Hz & 20KHz.

    Signal - Noise Ratio
    Referred to Peak Limiter threshold level as set by output attenuator: better than -80dB; with Expander operational, better than -87dB
    (Measured with low pass filter -3dB at 25HKz).

    Stereo Matching
    Control volts matching on compressor and expander sections to within ±1dB of each other, consequently no image shift during operation.

    Selectable Peak Limiter operation
    Peak Limiter on - off or Pre-emph (50uS time constant).

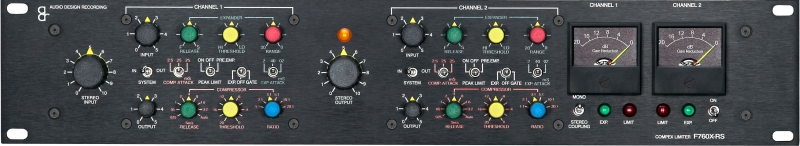

    Indicators
    Overall Gain Reduction Meter scaled 0 - 20dB in 4dB divisions. White scale on black background with yellow pointer.
    Peak Limiter operating: Red indicator.
    Compressor operating: Orange indicator.
    Expander/Gate operating: Green indicator.

    Power
    110v - 240vac 50/60Hz - Selectable working voltage for 110 -120v & 220 - 240v.

    Size
    482.6mm (19) wide x 88.9mm (2U) high x 229mm deep.

    Weight
    3.5Kg (net).
    Reviews
    Price *
    $4749.00
    $3653.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the Compex F760X-RS, please visit the website of Q2 Audio
