UPC/EAN #684284071811     MPN #E110

$959.00

Save 14.8%, MSRP $1125.00
Financing available

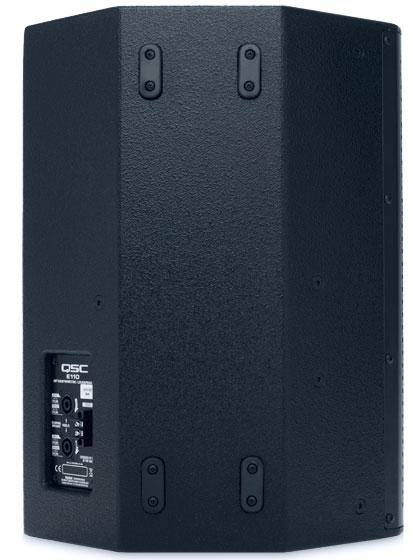

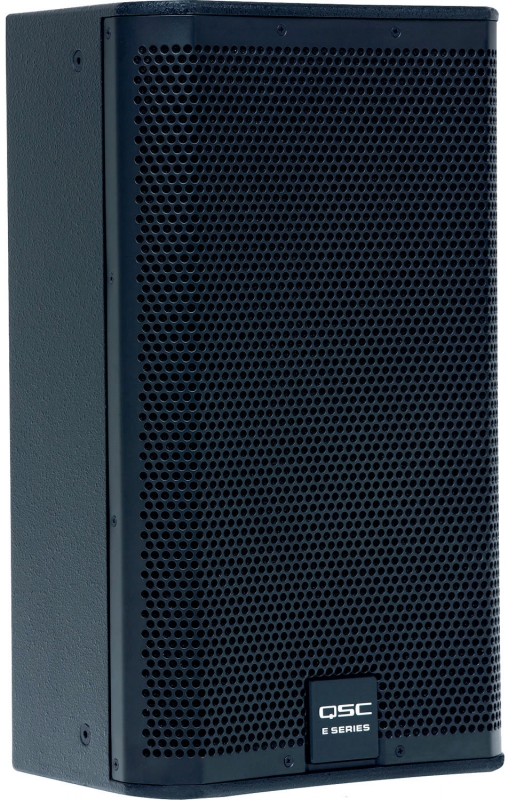

The E110 is a compact, two-way loudspeaker with a 10-inch, die cast frame woofer with a 2.5-inch voice-coil housed in a multi-purpose enclosure



It incorporates QSC's DMT (Directivity Matched Transition) design with a wide 85° coverage. When used as a stage monitor, the E110 is angled up at a 55° angle allowing it to be placed near the performer when used on a crowded stage.

E Series loudspeakers will perform very well with any quality, professional power amplifier - but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today's powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.
  • High output, professional quality sound with 300 W continuous power
  • E Series Entertainment System - Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
  • E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers:
  • - For PLD/CXD visit Amplifier Navigator Software
    - For GXD visit the GXD Firmware Updater
  • Rugged tour-grade textured paint
  • Foam-lined perforated steel grill
  • Suitable for main PA and stage monitor
  • Available U-Style Yoke and M8 rigging kit for permanent installation
  • Dual angle pole socket
  • Model: E110
    Configuration: 1 x 10-inch, 2-way, non-powered
    Frequency Response (-6 dB): 68Hz - 20kHz
    Frequency Range (-10 dB): 50Hz - 20kHz
    Power capacity²: continuous/peak: 300 W / 1200 W
    Sensitivity: 95 dB, 1 W @ 1 m
    Coverage Angle: 85° conical DMT
    Output1 (Peak SPL @ 1m): 126 dB

    Drivers
    LF: 254 mm (10-inch) driver with 64 mm (2.5-inch) voice coil;
    HF: 25 mm (1-inch) exit, 45 mm (1.75-inch) voice coil, compression driver

    Nominal Impedance: 8
    Cross-over: Full-range only, 1.8 kHz
    Input Connections: 2 x NL4, 1 x barrier strip
    Enclosure: Multi-angle plywood, black texture paint finish. One top-mounted handle. Perforated, powder-coated steel grille with foam lining.
    Mounting and suspension: 9 x M8 suspension points, dual angle, 35 mm pole-socket
    Net weight: 20kg / 44lbs
    Shipping weight: 23kg / 50lbs
    Dimensions: (WxHxD): 330 x 560 x 330 mm, 13 x 22 x 13-inch
