MPN #V2108

$4903.00

Financing available

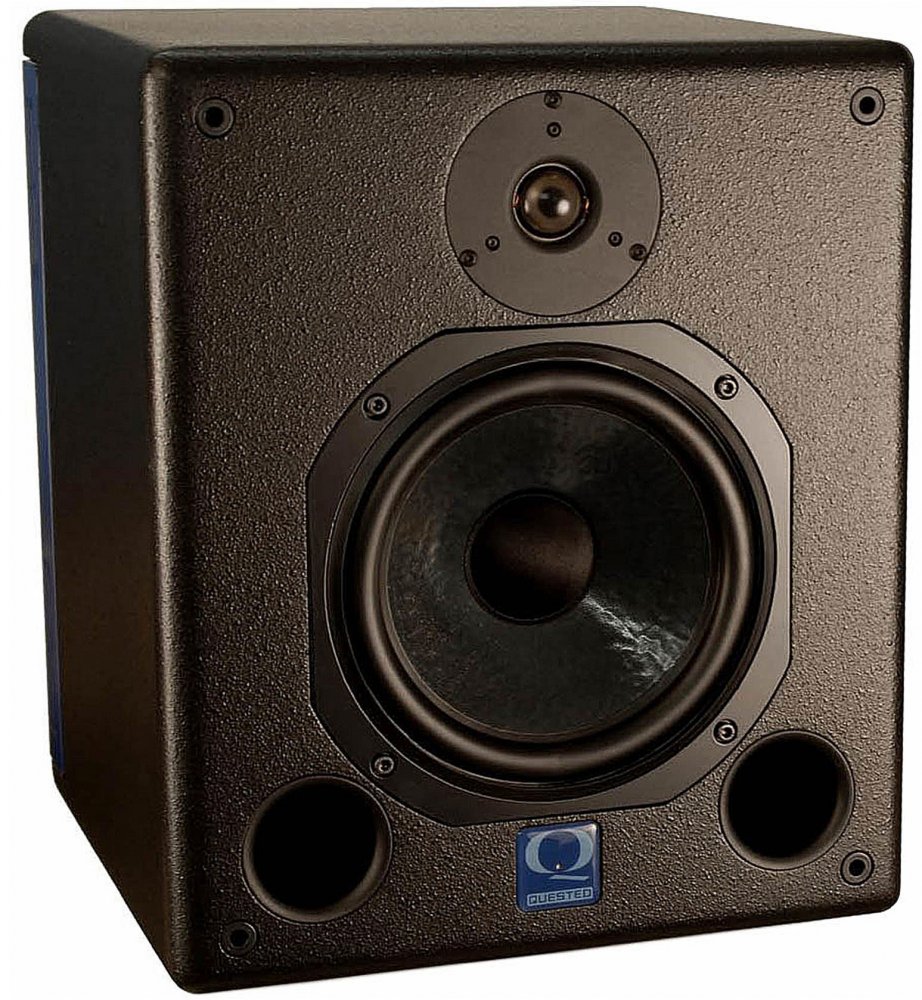

Self powered 2-way, 8", 400W studio monitor, black



Improved dynamics delivery and mid-range clarity have been at the heart of the design process for this new monitor and the system delivers these with astounding ability.

It takes our trusted driver layout, and teams it to the company's new current-driven, floating drive stage Class A/B amplification platform, delivering two pristine channels of 200W to each of the drivers. The results are a mid-range that opens up a clearer picture of what is going on, plus the control from the extra power gives the V2108 a clean response down to 40Hz. Another reason for the clearer picture is the new dust cap on the custom 8" drive unit and improved stiffening of the cone, which extends the LF response.

One of the world's finest speakers is ready to help your tracking, composing or mixing reach a new level.
TECHNICAL SPECIFICATION
Dimensions: 340 x 400 x 365mm (w x h x d)
Weight: 23kg / 50.5lb
Drivers: Low Frequency 1 x 200mm(8) LF
High Frequency: soft dome - 1 x 28mm (1. 1/8)
Maximum SPL: 108.5 dB continuous pink noise @ 1m Leq 1 minute. 114 dB per pair continuous pink noise @ 1m Leq 1 minute
Frequency Response: 45 Hz - 20 kHz ± 2dB / 38 Hz- 22 kHz -6 dB

INPUT
Connector: XLR3 type-Female
Impedance: 10k Electronically balanced with RF filters
Wiring: Pin 1 ground, Pin 2 hot, Pin 3 cold

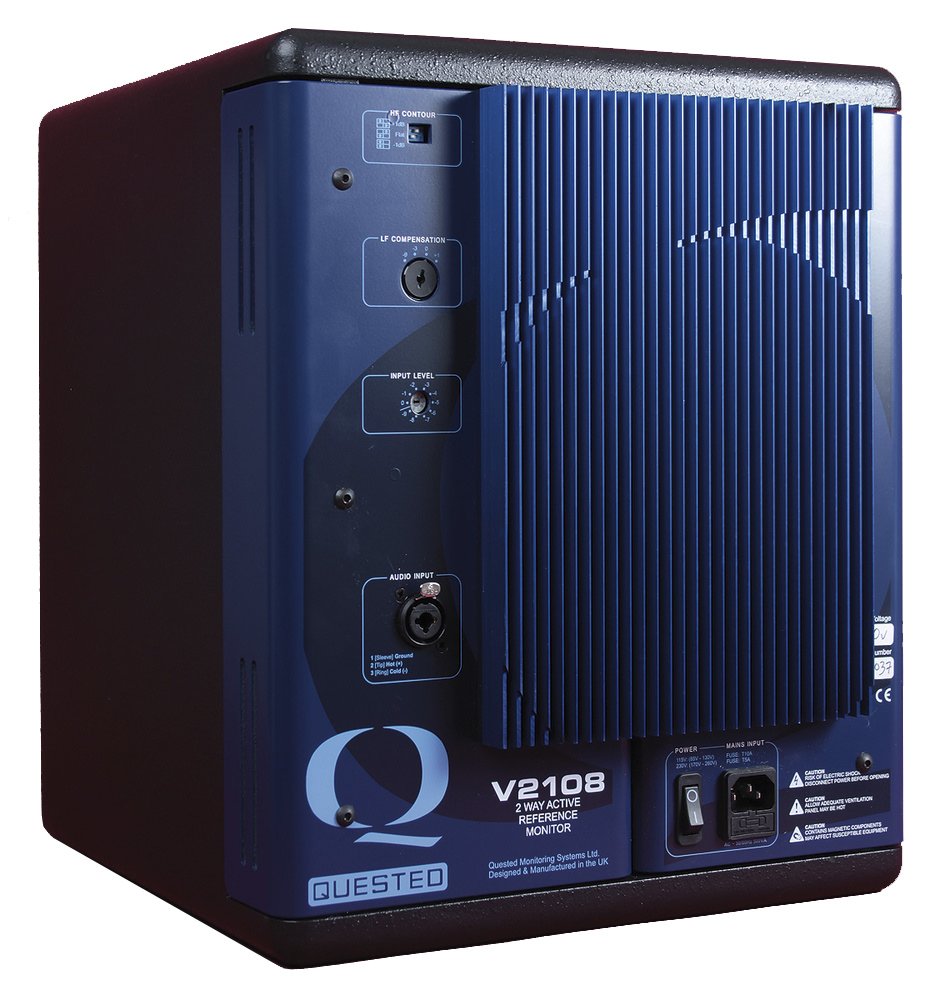

Sensitivity: Rear mounted 10 position rotary switch calibrated in 2dB steps
Minimum sensitivity +7dBu for 100dB SPL @ 1m
Maximum sensitivity -11dBu for 100 dB SPL @ 1m

FILTERS
Subsonic: -3dB @ 20Hz, 24dB/oct
Crossover Point: 1k4H, 24dB/oct
User LF EQ: 4 position rear mounted selector to select FLAT for normal use. -3/- 9dB for cut below 40Hz, 0, +1dB.
User HF EQ 3 position rear mounted switch to select FLAT for normal use, CUT/LIFT +/-1dB above 2k5Hz.

POWER AMPLIFIERS
HF output power: > 200W rms continuous (Note 1)
LF output power: > 200W rms continuous (Note 1)
THD: < 0.03% at levels up to 1dB below clip, 20Hz - 20kHz. typ 0.005% @ 20W rms 1kHz.
Hum + Noise: > -100dB referred to clip

Note 1: The continuous rating is for a period not exceeding 5 minutes with unrestricted airflow (>100mm clearance) around the amplifier rear panel and ambient temperatures is <30 Degrees C

INDICATION
Power on: Front mounted LED (flashing blue) indicates power applied and warm-up cycle.
Optimum Performance: Front mounted LED lights constant blue.
Overload: Front mounted LED flashes red (HF 1dB below signal clip, LF 2dB below signal clip)

Thermal Protection: Front mounted LED turns red, signal is muted and amplifier switches to standby mode during thermal protection cooling cycle. Normal operation resumes when amplifier temperature drops by 20 o C.

POWER REQUIREMENTS
Voltage: Set by internal plugs: nominal 115V or 230V @ 50-60Hz AC.
230V setting: Min 160V (restricted output power): Max 263V
115V setting: Min 80V (restricted output power): Max 132V

CONSUMPTION
Quiescent 32W, Typical use 92W.
Note 0dBu = 775mV into open circuit.
This product is built to conform to the requirements for CE marking.
