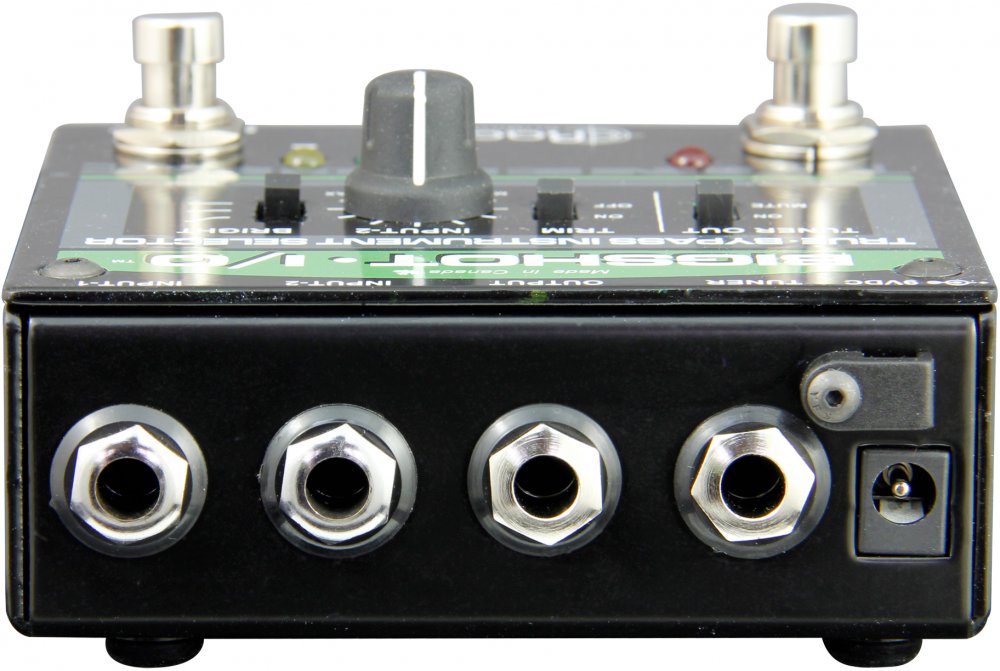

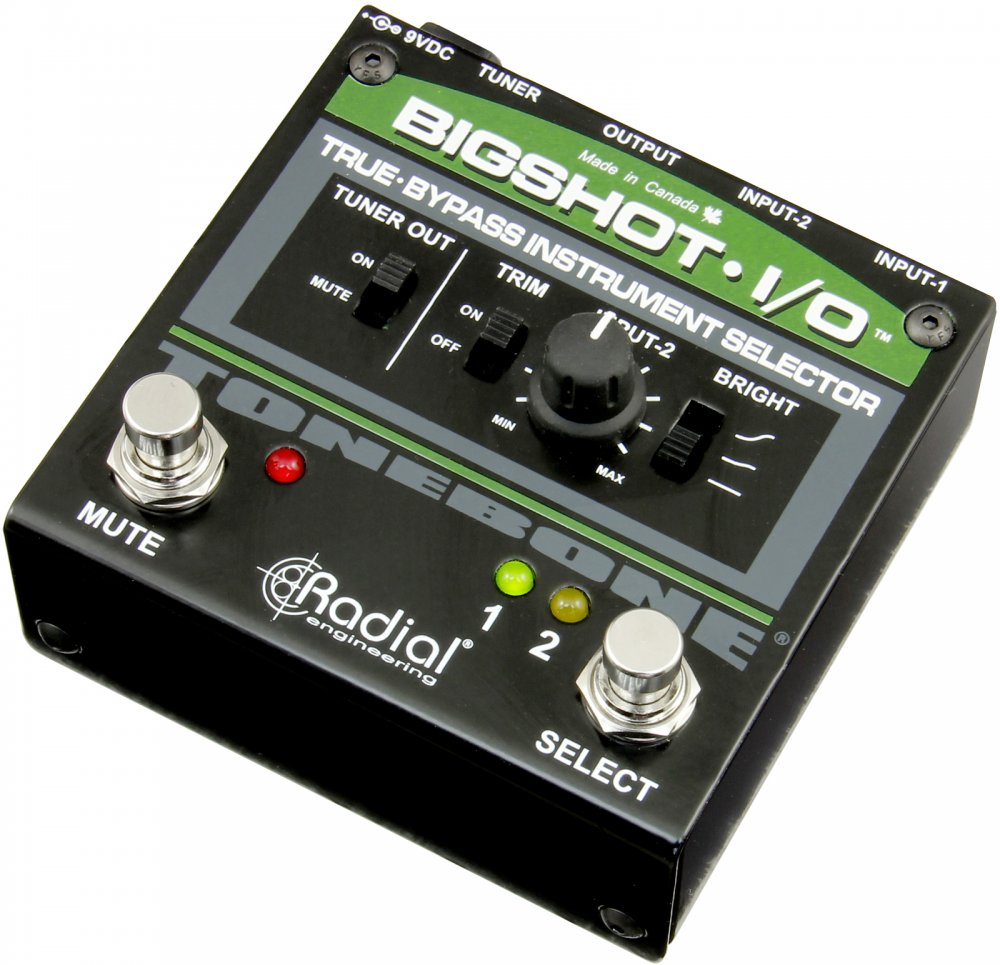

The Radial Bigshot I/O is a true-bypass instrument selector that lets you switch between two sources and balance the signal level between them.
The Radial BigShot i/o is an easy to use instrument selector that lets you quickly transition between any two instruments and send the output signal to your amp. Because the i/o is 100% true-bypass, it addresses the needs of the most demanding purist.
To enhance functionality, input-B is equipped with a trim control called DIM that lets you use two different types of instruments and set the levels so that they match. You simply connect the louder of your two instruments into input B and set the level to suit. When passive instruments are used, a unique 'bright' switch lets you compensate for high frequency loss when using longer cables. The BigShot i/o is also equipped with a separate tuner output. With a simple foot stomp, the sound going to the amp is muted and diverted to the tuner for quiet on-stage adjustments.
Super compact, extremely rugged and 100% passive, the BigShot i/o does not require any powering to make it work. This makes it ideal for pedalboards where the use of batteries or power supplies is painful!
The BigShot i/o... the perfect instrument selector for stage use.
Toggle two instruments with single foot stomp
Adjustable volume control to match levels
Separate tuner output and mute switch
Load compensation for long cables
Circuit Type : Passive, true-bypass
Construction : 14 gauge steel
Finish : Durable powder coat
Size : 3.6"w x 3.9"d x 2"h (92 x 99 x 51mm)
Weight : 1.25 lb (0.56 kg)
Conditions : For indoor use at temperatures between +5 deg c and +40 deg C
