Radial Engineering Cherry Picker

The Radial Cherry Picker is a unique tool that simplifies the process of selecting the best preamp for use with a given microphone.

The Radial Cherry Picker is a unique tool designed to improve efficiency and workflow in the studio by simplifying the process of matching the best preamp with a microphone for a given track. This is most often done when recording vocals. This improves the sonic character of the track and provides the vocalist with a more comfortable sound, which in turn allows for a better performance.

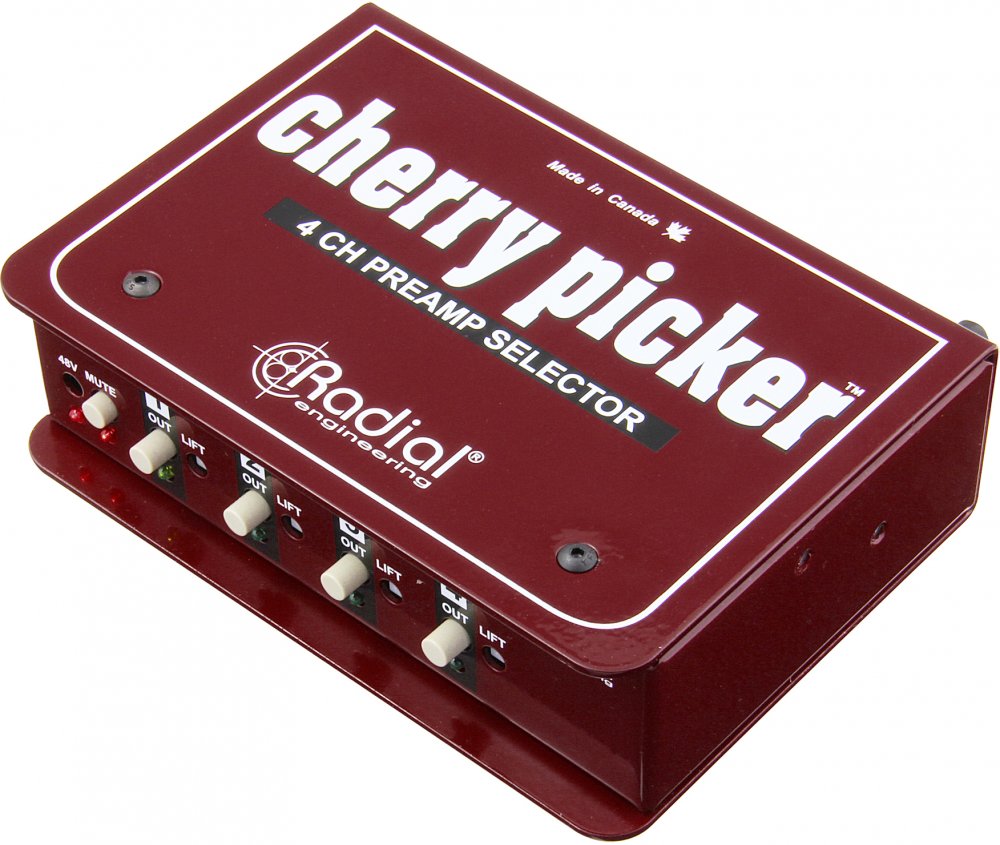

Four front panel 'radio style' selector switches select the active preamp while automatically disconnecting the mic from the others. Completely passive and 100% discrete, the Cherry Picker features a 'straight wire' signal path. There is no active circuitry whatsoever in between the mic signal and the preamp. The audio signal switching is performed by a series of military-grade gold contact sealed relays for zero coloration and distortion to ensure a fair and honest comparison between preamps.

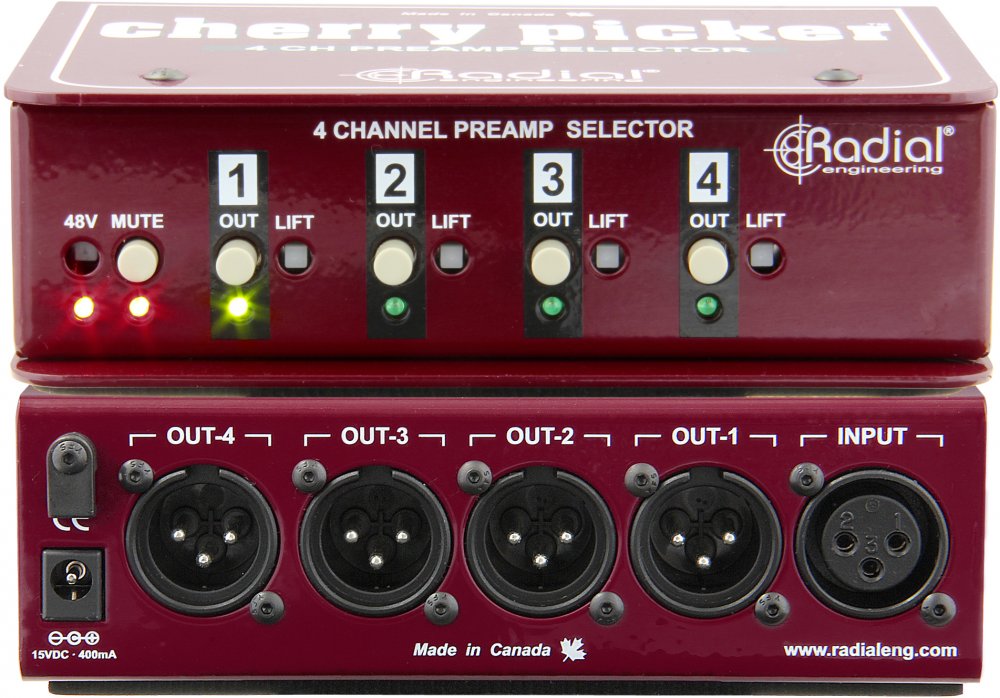

The rear panel is equipped with a balanced XLR input for the microphone and four balanced XLR outputs to feed the various preamps. When using a studio condenser, the Cherry Picker internally generates 48V phantom power so that switching between preamps will not disrupt the phantom power going to the microphone. This could otherwise cause severe popping in the audio system and headphones. Separate ground lift switches for each output help reduce noise by eliminating ground loops plus a handy mute switch turns all outputs off, enabling the engineer to leave the preamp settings untouched when testing out other mics.

The Cherry Picker... a tool designed to improve performance, sound and workflow at the same time.
Features
  • Select the best mic & preamp combination
  • Passive 'straight wire' color-free signal path
  • Built-in 48V phantom power for condenser mics
  • Improve the workflow efficiency in your studio
  • Specifications
  • Audio circuit type : Passive signal path with active relay switching
  • Frequency response : 10Hz to 40kHz
  • Dynamic range : >115dBu
  • Equivalent input noise : -115dB
  • Residual noise : -140dB
  • Maximum input : +26dBu
  • Maximum output : +26dBu
  • Total harmonic distortion : 0.0003%
  • Phase deviation : < 0.001 degrees at all frequencies
  • Intermodulation Distortion : 0.001%
  • Input impedance : 10 000 Ohms
  • Common mode rejection : -97dB @55Hz
  • Gain : 0.0dB - Unity gain device

  • Features
  • Inputs : Balanced XLR female
  • Outputs : 4 x XLR male
  • Switches : Individual on/off for each output, Individual ground lift for each output, Mute all function
  • Phantom power : 48V phantom on each channel with recessed switch
  • XLR configuration : AES standard (pin-1 ground, pin-2 hot, pin-3 cold)

  • General
  • Power : +15V DC/400mA power supply included
  • Construction : 14 gauge steel chassis & outer shell
  • Finish : Durable powder coat
  • Size : (W x H x D) 4.5" x 2" x 6" (121 x 64 x 147mm)
  • Shipping size : W x H x D : 4.75" x 2.5" x 10.75" (121 x 64 x 273mm)
  • Weight : 2.8 lb (1.3kg)
  • Shipping weight : 3.05 lb ( 1.4kg)
  • Conditions : For indoor use at temperatures between +5° c and +40° c
  • Reviews
    Price *
    $440.00
    $379.00
    Free shipping in Canada. Conditions
    Rental

    Price/Day
    Total
    1 Day
    $12.00
    $12.00
    3 Days
    $8.00
    $24.00
    5 Days
    $6.00
    $30.00
    12 Days
    $4.00
    $48.00
    28 Days
    $2.50
    $70.00
    Additional information
    For more information about the Cherry Picker, please visit the website of Radial Engineering
