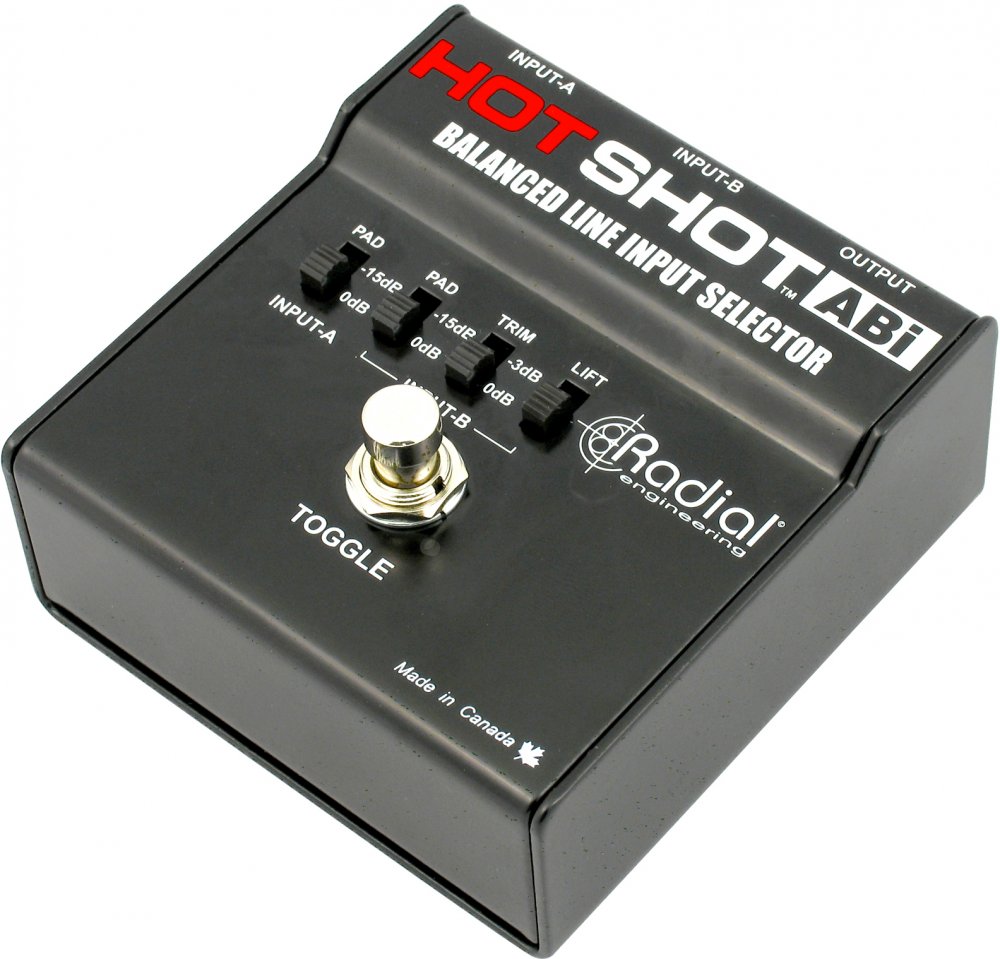

The Radial HotShot AB1 is an XLR balanced input selector that can instantly toggle between two input sources to one output via a latching footswitch.
The HotShot ABi is a balanced signal selector that allows you to instantly select between two sources by depressing a latching footswitch. It features separate -15dB input pad selectors on each input to better balance the signal levels. And since it is completely passive, power is not required to make it work.
This makes the HotShot ABi ideal for applications such as switching between two dynamic microphones on a stage to save valuable input channels on your mixer. The latching switch also opens the door for other useful operations including using the ABi as a mute to turn off a microphone, to select between two wireless receivers for live sound system backup or to select between two microphones during community hall assembly where it provides the moderator with remote control over two audience microphones. To make switching as seamless as possible, separate level reducing pads on each allow louder sources to be attenuated so that the two sources can be better balanced. A trim switch on input-B further decreases the sensitivity by 6dB for fine adjustments.
Ultra compact and extremely rugged, the HotShot ABi is made in Canada with 14 gauge steel and durable powder coat finish to handle the rigours of professional touring. Heavy duty latching footswitch and glass-nylon connectors designed to provide years of trouble-free performance and the HotShot ABi is backed-up with a 3-year transferable warranty.
Easy use, the HotShot ABi delivers instant footswitch control over two sources for greater efficiency on stage.
On-stage line input signal AB redirector
Toggle switch for one-push operation
Pads allow using devices with different signal levels
Ground lift to eliminate buzz caused by ground loops
Heavy-duty construction, switches and components
Circuit Type : Passive, true-bypass
Frequency response : 20Hz ~ 20kHz
Switch type : Latching
Dynamic range : Unlimited
Ground lift : Pin-1 on input B
Pad : -15dB on both inputs
Toggle : Selects between input A or B
Construction : 14 gauge steel
Finish : Durable powder coat
Size : 3.6"w x 3.9"d x 2"h (92 x 99 x 51mm)
Weight : 1.25 lb (0.56 kg)
Conditions : For indoor use at temperatures between +5° c and +40° c
