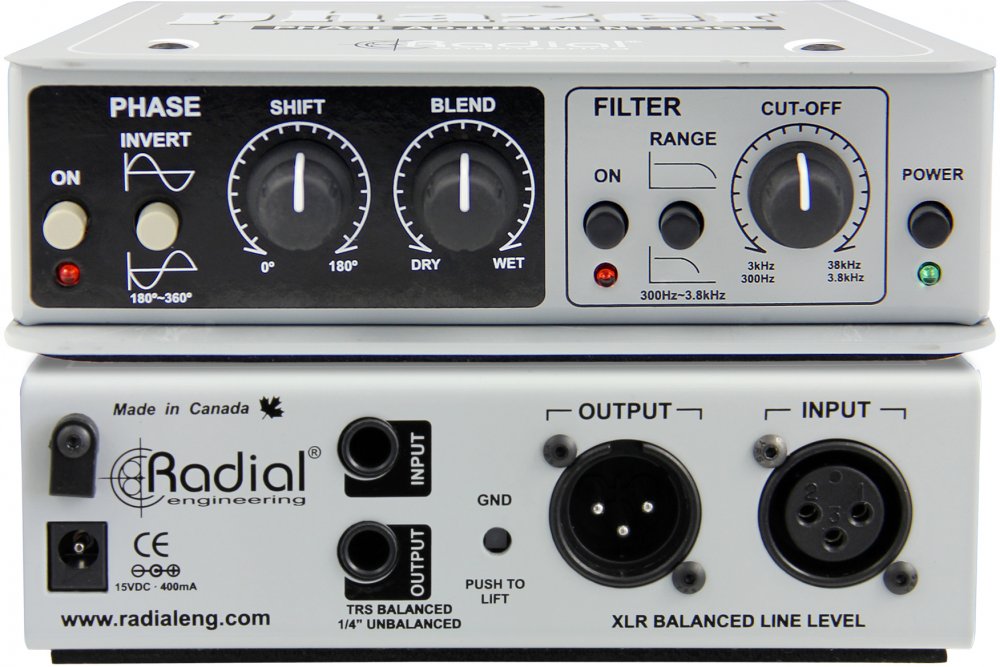

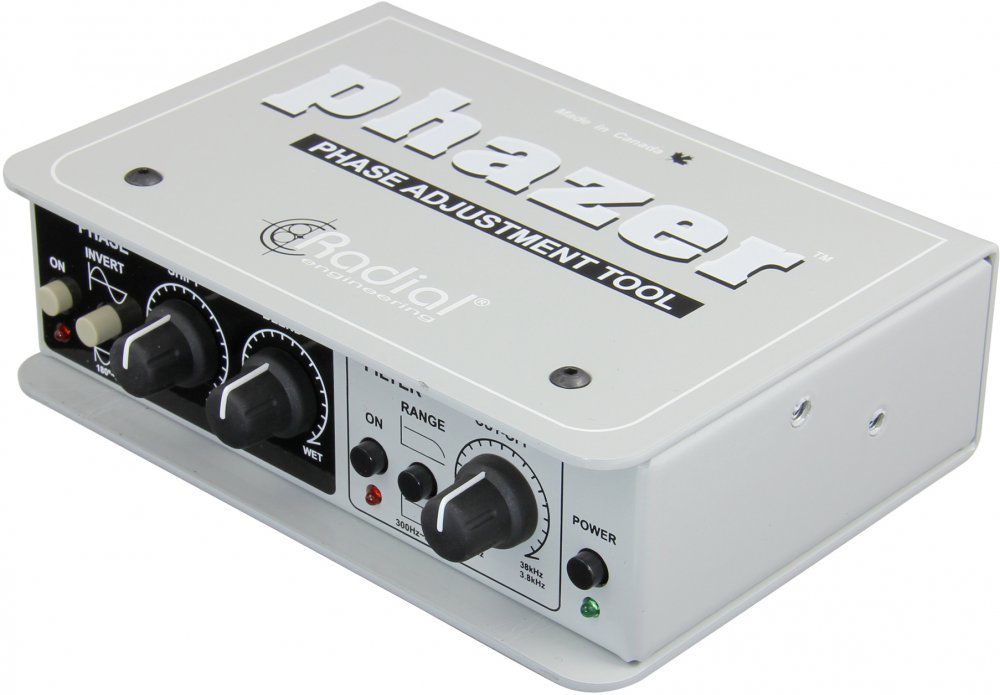

Radial Engineering Phazer

The Radial Phazer is an analog phase alignment tool that lets you combine two sources and bring the fundamentals together for a more natural tone.

The PhazeQ is a dual function 500-series device. As a phase alignment tool, it is used to time-align two microphones for greater clarity and realism. It also behaves like a very powerful EQ that lets you create exciting new tones that will set your recordings apart.

Designed to work with the Radial Workhorse and other 500 series racks, the PhazeQ features 100% discreet class-A electronics for a warm rich, natural tone. A single control lets you adjust phase shift from 0º to 180º and clever application of a 180ºpolarity reverse extends the range to a full 360º. To further focus the effect on the fundamentals, a low-pass filter may be engaged to remove high frequency content. This is split into two ranges for added precision. The applications are diverse: a close mic and a distant room mic on a guitar amplifier; an XY pair on an acoustic guitar; the batter head and outside of a kick drum; or combining a mic'd bass cabinet with a direct feed. The PhazeQ differs from the original Phazer with the addition of a wet-dry blend control. The PhazeQ 'changes the rules' by taking a single source and splitting the signal to allow you to combine the original sound with the phase shifted signal to deliver an all new type of EQ. It is powerful, radical and will deliver EQ curves like none before.

As a phase adjustment tool, your recordings will attain realism. As an EQ, you will be able to orchestrate tracks like never before. The PhazeQ is powerful tool that will ultimately allow you to expand your creative palette as you enter the new world of analogue phase experimentation. And once you start using it, you will never let go.
Features
  • Phase align any two signals for natural tone
  • Create exciting radical EQ curves
  • 100% discreet analogue with class-A circuitry
  • Variable low-pass filter to focus fundamentals
  • Specifications
  • Circuit type : Discrete Component Class A
  • Frequency response : 20Hz~20KHz
  • Dynamic range : 102dB
  • Noise - dry : -90dB below 0dBu
  • Noise - wet : -80dB below 0dBu
  • Maximum output : +17dBu
  • THD+N - dry : >0.002% @1kHz (0dB input, 100k load)
  • THD+N - wet : >0.015% @1kHz (0dB input, 100k load)
  • Intermodulation distortion : >0.015% @ -12dBu out
  • Input impedance : 3.4K Ohms
  • Output Impedance : 110 Ohms
  • Phase shift: : 0º ~ 180º - frequency dependent
  • 181º ~360º when invert switch is engaged
  • Low pass filter : Range 1: 300Hz ~ 3.8kHz, Range 2: 3kHz ~ 38kHz
  • Omniport : Dry Signal, Balanced Output, +15dBu
  • Power requirement : 50mA
  • Shipping size : 9 x 6.5 x 2 (inches)
  • Weight : 1.5 lbs. (0.7 kg)
  • Conditions: : For use in dry locations only between 5°C and 40°C
  • Reviews
    Price *
    $380.00
    $339.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the Phazer, please visit the website of Radial Engineering
