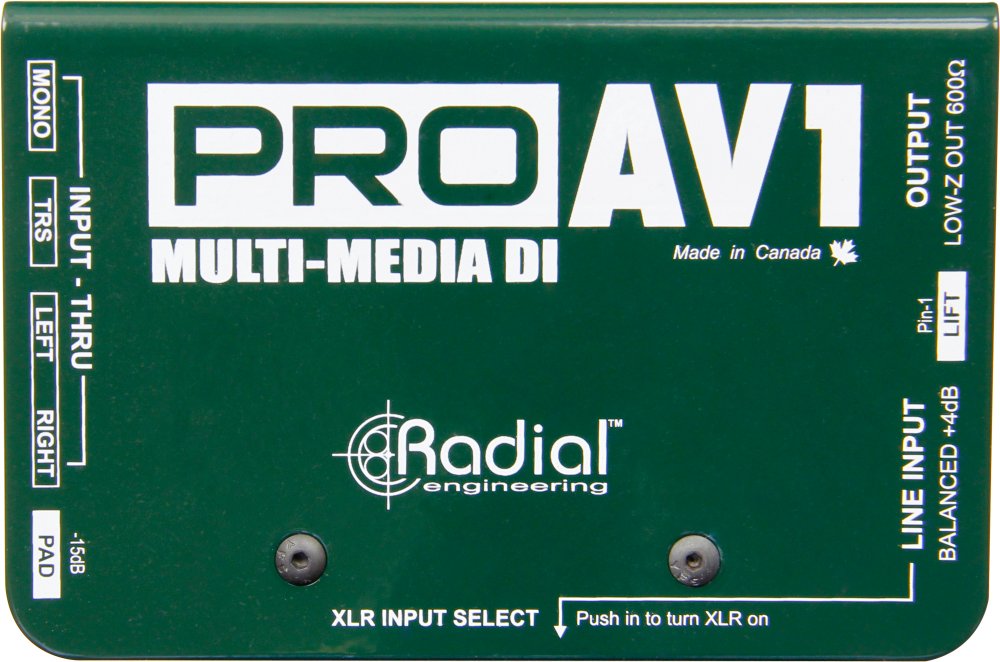

Radial Engineering ProAV1

The Radial ProAV is a passive direct box with stereo-to-mono merge function designed specifically for the audio-video integrator to reduce channel requirements.

The Radial ProAV1 and ProAV2 are passive direct boxes specifically developed with the audio-video integrator in mind. The ProAV1 features a variety of stereo inputs that are summed mono via a resistive mixer, greatly simplifying signal management. The ProAV2 delivers two discrete channels where full stereo functionality is required.

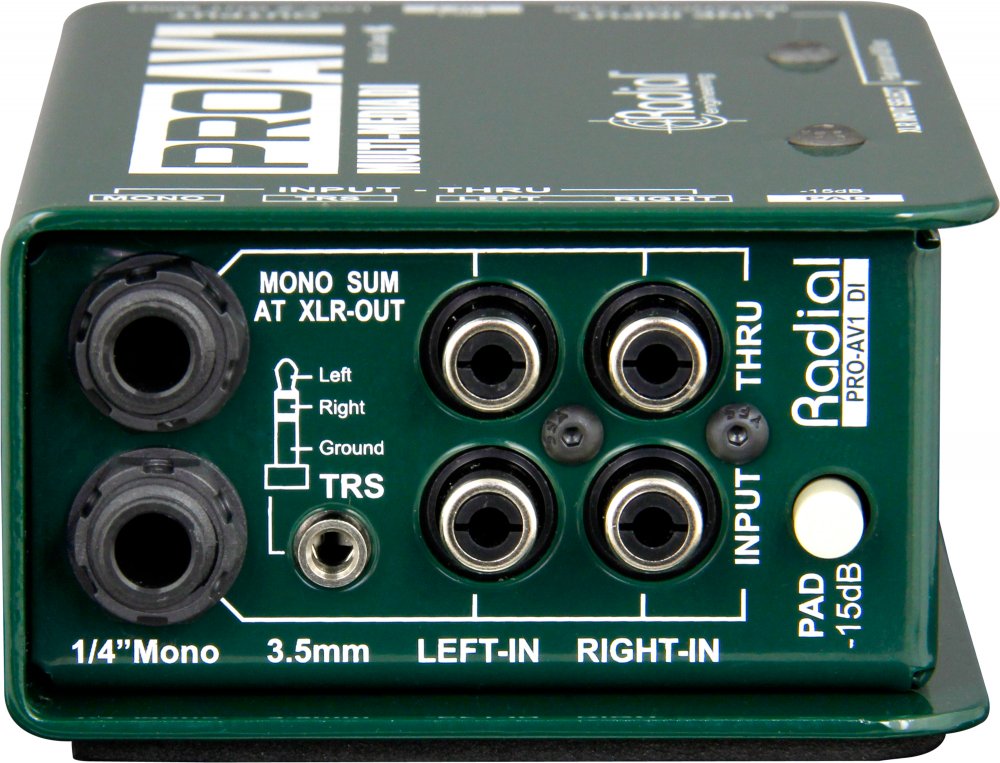

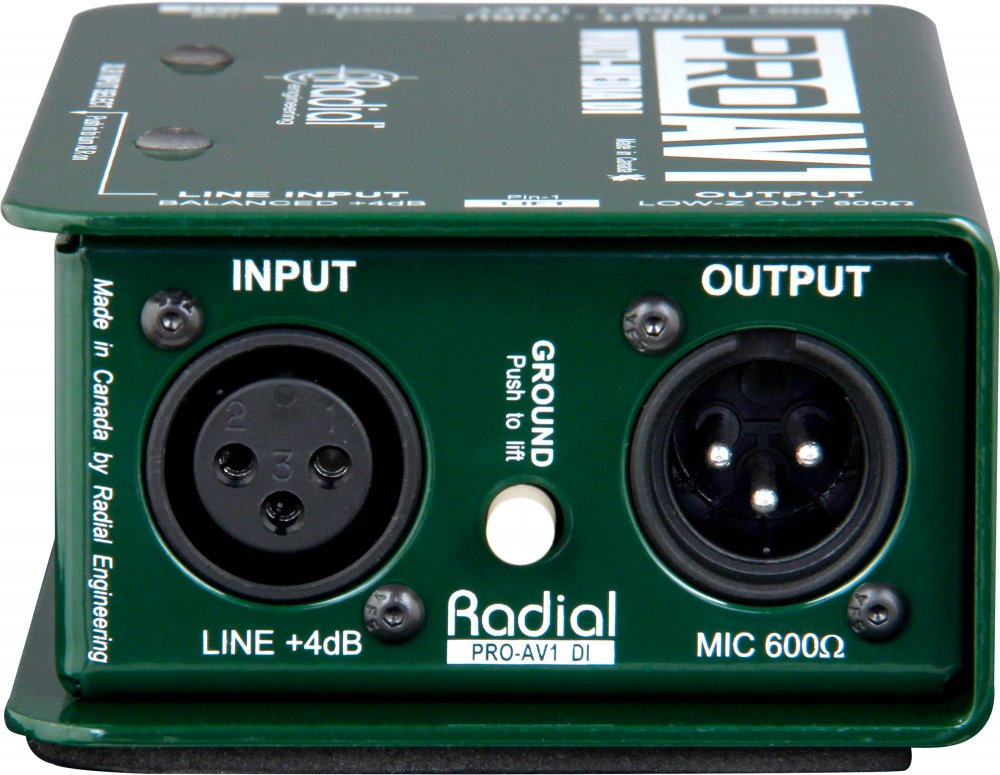

To eliminate the need for various adaptors, both units are equipped with a 'Swiss Army' array of connectivity options including 1/4" inputs for instruments, RCA and 3.5mm (1/8") connectors for CD players, iPods, video decks and computers. The ProAV1 also features a female XLR input for interfacing equipment with +4dB professional signal levels. The front panel connectors can also be used as thru-puts to allow multiple patch points.

Custom wound Eclipse ET-DB2 transformers are able to withstand exceptionally hot signal levels while maintaining linearity from 20Hz to 20kHz. The resulting smooth Bessel curve is warm and natural, making them particularly adept at handling digital sources that can sound harsh. Transformer isolation further benefits by eliminating hum and buzz caused by ground loops or DC offset problems.

These features combine to make the ProAV1 and ProAV2 'must have' problem solvers for the audio-visual technician's tool kit.
Features
  • Pro 'Swiss Army knife' direct box for multi-media
  • Easy to use passive ultra-quiet design
  • Elimiates ground loops causing hum and buzz
  • Handle huge transients without distortion
  • Mono (ProAV1) and stereo (ProAv2) versions
  • Specifications
  • Audio circuit type : Passive, transformer based
  • Number of channels : Single channel (mono)
  • Frequency response : 20Hz ~ 18.5KHz (± 0.2dB)
  • Dynamic range : 128dB
  • Maximum input : +18dB @ 20Hz
  • Total harmonic distortion : 0.01% from 20Hz~20kHz @-10dB
  • Phase deviation : 1° @ 100Hz; 8° @ 20Hz
  • CMR ratio : 100dB @ 60Hz
  • Input impedance : 140k Ohms, unbalanced
  • Output impedance : 150 Ohms, balanced

  • Features
  • Transformer : Eclipse ET-DB2, 12:1 ratio
  • Shield : Faraday, MuMETAL® can
  • Input pad : -15dB
  • Merge : Sums left & right to mono
  • 180° polarity reverse : Inverts absolute phase
  • Ground lift : Disconnects pin-1 at XLR output
  • XLR configuration : AES standard (pin-2 hot)
  • Connectors : 1/4", RCA, 3.5mm, in & thru, XLR-F in, XLR-M out

  • General
  • Construction : 14 gauge steel chassis & shell
  • Finish : Durable powder coat
  • Size : (W x H x D) 3.25" x 5" x 1.875"
  • Weight : 0.73kg (1.6 lbs)
  • Shipping size: W x H x D : 102 x 76 x 165mm (4.00" x 3.00" x 6.50")
  • Shipping weight : 0.87 kg (1.92 lbs)
  • Power : Passive, no power required
  • Conditions : For use in dry locations only between 5°C and 40°C
  • Reviews
    Price *
    $160.00
    $129.00
    Eligible for free shipping in Canada. Learn more
    Additional information
    For more information about the ProAV1, please visit the website of Radial Engineering
