The Radial ProAV is a passive direct box with stereo-to-mono merge function designed specifically for the audio-video integrator to reduce channel requirements.
The Radial ProAV1 and ProAV2 are passive direct boxes specifically developed with the audio-video integrator in mind. The ProAV1 features a variety of stereo inputs that are summed mono via a resistive mixer, greatly simplifying signal management. The ProAV2 delivers two discrete channels where full stereo functionality is required.

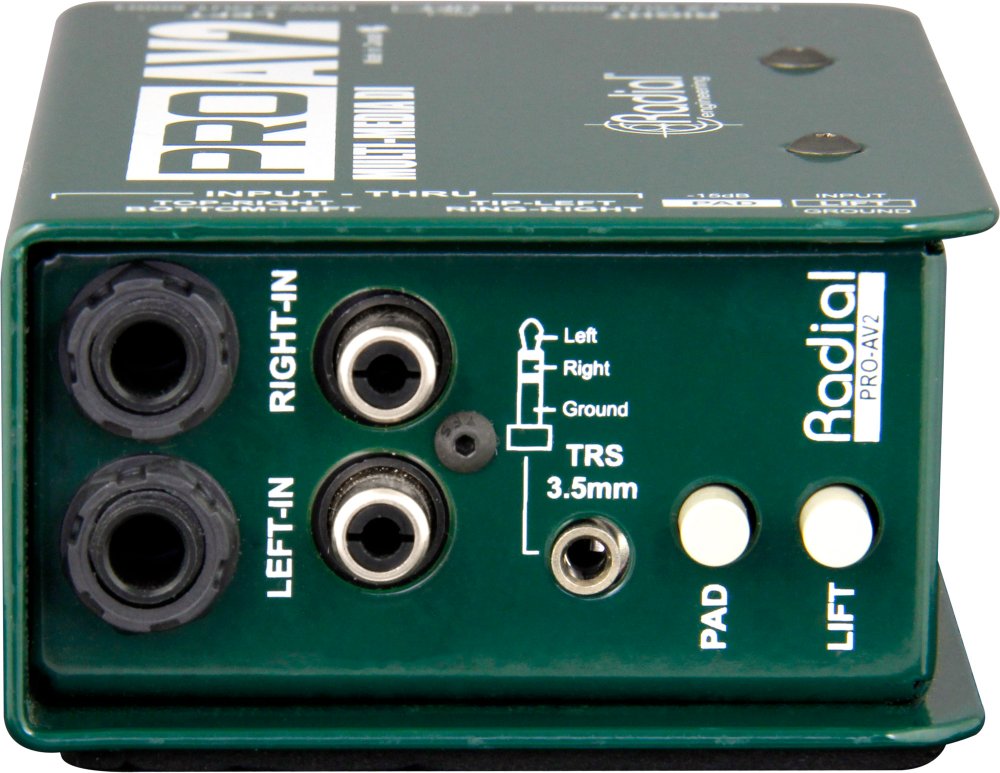

To eliminate the need for various adaptors, both units are equipped with a 'Swiss Army' array of connectivity options including 1/4" inputs for instruments, RCA and 3.5mm (1/8") connectors for CD players, iPods, video decks and computers. The ProAV1 also features a female XLR input for interfacing equipment with +4dB professional signal levels. The front panel connectors can also be used as thru-puts to allow multiple patch points.
Custom wound Eclipse ET-DB2 transformers are able to withstand exceptionally hot signal levels while maintaining linearity from 20Hz to 20kHz. The resulting smooth Bessel curve is warm and natural, making them particularly adept at handling digital sources that can sound harsh. Transformer isolation further benefits by eliminating hum and buzz caused by ground loops or DC offset problems.
These features combine to make the ProAV1 and ProAV2 'must have' problem solvers for the audio-visual technician's tool kit.
Pro 'Swiss Army knife' direct box for multi-media
Easy to use passive ultra-quiet design
Elimiates ground loops causing hum and buzz
Handle huge transients without distortion
Mono (ProAV1) and stereo (ProAv2) versions
Audio circuit type : Passive, transformer based
Number of channels : Dual channel (stereo)
Frequency response : 20Hz ~ 18.5KHz (± 0.2dB)
Dynamic range : 128dB
Maximum input : +18dB @ 20Hz
Total harmonic distortion : 0.01% from 20Hz~20kHz @-10dB
Phase deviation : 1° @ 100Hz; 8° @ 20Hz
CMR ratio : n/a
Input impedance : 140k Ohms, unbalanced
Output impedance : 150 Ohms, balanced
Transformer: Eclipse ET-DB2, 12:1 ratio
Shield : Faraday, MuMETAL® can
Input pad : -15dB
Merge : n/a
180° polarity reverse : Inverts absolute phase
Ground lift : Disconnects pin-1 at XLR output
XLR configuration : AES standard (pin-2 hot)
Connectors: 1/4", RCA, 3.5mm, in & thru, XLR-M out
Construction : 14 gauge steel chassis & sshell
Finish: Durable powder coat
Size : (W x H x D) 3.25" x 5" x 1.875"
Weight : 0.82kg / (1.8lbs)
Shipping size : W x H x D: 102 x 76 x 165mm (4.00" x 3.00" x 6.50")
Shipping weight : 1.2 kg (2.60 lbs)
Power : Passive, no power required
Conditions : For use in dry locations only between 5°C and 40°C
