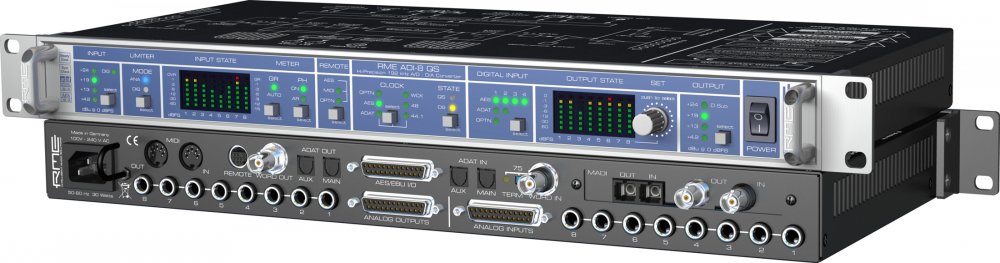

8 channel 24bit / 192kHz remote controllable AD/DA converter
The device combines excellent analog circuit design with outstanding low latency AD/DA converter chips of the latest generation. Along with the integrated SteadyClock, the QS offers an AD- and DA-conversion of the highest quality.
Analog and digital limiters, 4 hardware reference levels up to +24 dBu, AES/EBU and ADAT I/O (optional MADI I/O) at up to 192 kHz, remote control via MIDI, digital input and output trimming for full level calibration, volume control for all 8 analog outputs, either separately or globally, digital thru-mode, operation over a wide voltage range and many more features make the QS truely unique.
Features
The 1 U height device offers an outstanding AD/DA conversion from/to AES/EBU and ADAT (MADI optional), at up to 192 kHz. The balanced inputs and outputs use RMEs circuit design, therefore guarantee outstanding noise and distortion values. Four different input and output levels each are available, offering a perfect adaptation to the analog domain. The latest generation AD/DA converters provide samplerates up to 192 kHz with a SNR of 120 dBA.
Due to its efficient jitter reduction, SteadyClock(TM) guarantees pristine sound quality independently from the quality of the external clock signal. Additionally Intelligent Clock Control (ICC) will retain the last valid sample frequency in case of a loss of the input signal.
The technologies known from other RME products like SyncCheck ensure perfect synchronization and clear detection of errors. Multiple units can be stacked and operated sample-aligned, using word clock. All settings are stored when the unit is switched off.
The QS can be fully remote controlled and configured via MIDI, and all status displays can be queried through MIDI. Each QS can be given a separate ID, allowing separate remote controllability of various devices with only one MIDI channel.
The included Hardware Remote Control allows to control the monitoring volume directly from the working place. A reference volume once saved can be recalled anytime, and of course we did not forget to add a DIM function (-20 dB).
Low Latency
In the QS RME uses a high-class AD converter from Cirrus Logic, offering exceptional Signal to Noise and distortion figures. But the biggest difference to all other ADCs out there is its innovative digital filter, achieving for the first time a delay of only 12 samples in Single Speed (0.25 ms), 9 samples in Double Speed (0.09 ms), and 5 (!) samples in Quad Speed (0.026 ms).
These values are less than a quarter of those available from even much more expensive devices. They represent an important step in further reducing the latency in the computer-based recording studio. At DS and QS the added latency can simply be ignored. The DA-converter offers similar conversion in the range of 5 to 10 samples, turning analog digital monitoring into real analog-style monitoring!
I64 MADI Card
The I64 MADI Card extends the QS with a 64-Channel MADI input and output and a sophisticated digital patch mode.
The card has an optical and a coaxial MADI input, which is switched automatically according to where a valid input signal is detected. This ensures full redundancy by immediately changing to the other input in case of signal loss. Coaxial and optical output operate in parallel, delivering the same data.
MADI can be used as an optional clock source (Clock section, OPTN), as signal source of the DA-converter, target of the AD-converter, and as digital thru. Since each QS converts only 8 channels, up to 56 channels can be passed through. This technique is used to serially cascade several QS converters. Incoming MADI data is passed through unchanged, only one block of eight channels is replaced. This allows up to 8 devices to be connected serially, with all 64 combined channels available at the last device's MADI output. When multiple devices are connected serially, the function Delay Compensation removes sample offsets between the units.
The QS can also be remote controlled via MADI, and send/receive MIDI data via MADI.
Additionally the i64 card enables a digital patch mode, that allows free routing of all I/Os based on blocks of 8 channels (needs i64 MADI card with Sync LEDs and firmware 3.x or up). In this mode, the 8 analog channels, AES, ADAT input 1 and 2, and 8 x MADI are available as input sources for the same number of outputs. The unit then works as digital format converter, rebuilds a MADI signal from various sources, inserts, converts and much more at the same time.
Features
8-Channel AD converter, fully symmetrical design, 117 dBA8-Channel DA converter, DC-coupled signal path, double balanced output, 120 dBALow latency conversion: only 8 samples of delay!4 x AES/EBU I/O via D-Sub, 8 channels @ 192 kHz2 x ADAT I/O, 8 channels @ 96 kHzDigital input/output trim, range 6 dB per I/OAnalog and digital limiter for AD-conversion16 LED level meters with 7 LEDs eachincluded Remote control for store/recall, volume and DIMSyncCheck, unique technology to check clock synchronisationAll settings are stored permanentlyFully remote controllable
Specifications
Input AD: 1/4" TRS jack and 25 pin D-sub, servo balanced, completely symmetrical audio pathOutput AD: 4 x AES/EBU, 2 x ADAT optical, optional MADIInput DA: 4 x AES/EBU, 2 x ADAT optical, optional MADIOutput DA:1/4" TRS jack servo balanced, up to +21 dBu. 25 pin D-sub, balanced, up to +24 dBu. DC-coupled audio pathDynamic Range AD: 117 dBATHD AD: < -110 dB (< 0.00032 %)THD+N AD: < -104 dB (< 0.00063 %)Crosstalk AD: > 130 dBDynamic Range DA: 120 dBA unmutedTHD DA: < -104 dB (< 0.00063 %)THD+N DA: < -102 dB (< 0.0008 %)Crosstalk DA: > 110 dBInput level for 0 dBFS: +24 dBu, +19 dBu, +13 dBu, +4.2 dBu, each adjustable by 6 dB in steps of 0.5 dB via Digital Input TrimOutput level for 0 dBFS: +24 dBu, +19 dBu, +13 dBu, +4.2 dBu, each adjustable by +/- 6 dB in steps of 0.5 dBOutput level global: 0 down to -96 dB in 48 stepsSample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (sync/word)Frequency response AD/DA, -0.1 dB: 10 Hz - 23.2 kHz (sf 48 kHz)Frequency response AD/DA, -0.5 dB: < 5 Hz - 44.6 kHz (sf 96 kHz)Frequency response AD/DA, -1 dB: < 5 Hz - 63.4 kHz (sf 192 kHz)Power supply: Internal switching mode ps, 100 V-240 V ACDimensions: (WxHxD) 483 x 44 x 200 mm
