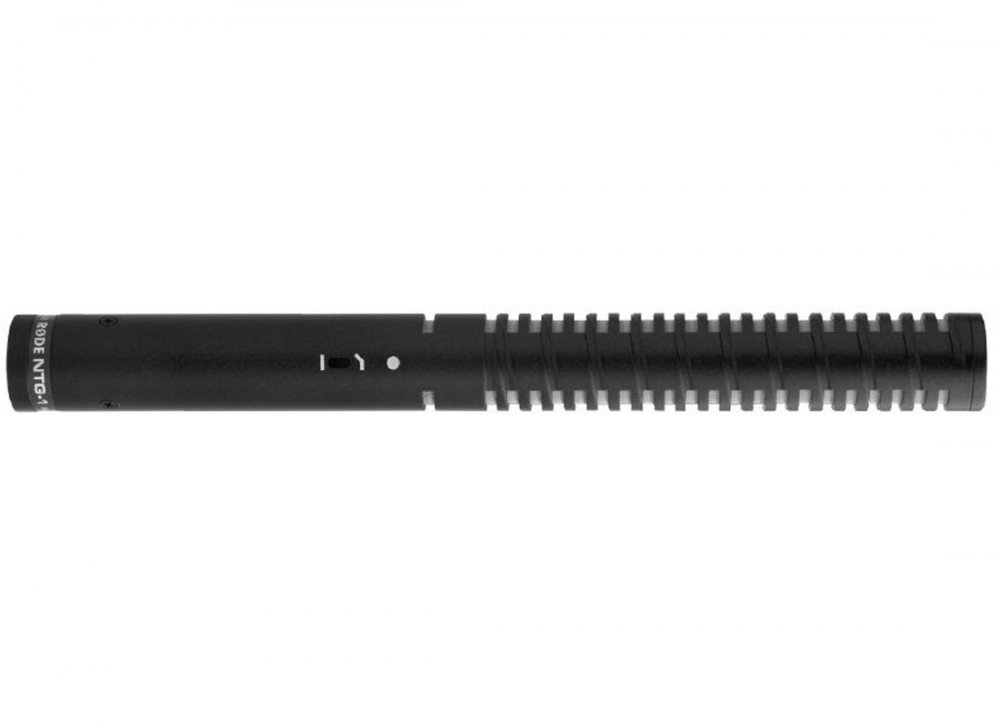

The new RØDE NTG-1 is a lightweight condenser shotgun microphone, specifically designed for professional applications within the film, video, television, voice-over and ENG industries.
The NTG-1 provides an electronically balanced output stage and operates on 48 V to the P48 standard. The NTG-1 offers wide bandwidth and a controlled polar response coupled with low noise SMT electronics. The NTG-1 is extremely lightweight making it ideal for mounting directly to video cameras (with optional accessories) or a Boom pole.
The NTG-1 comes complete with mount and windshield. The supplied windscreen effectively suppresses wind noise when recording outdoors in moderate conditions. Optional accessories are available for more demanding applications.
Features:
Broadcast sound quality. Low noise circuitry. Condenser transducer. Rugged metal construction. Low weight: 105 grams approx. (3 oz.). Low handling noise. Supplied with stand mount, zip pouch and windshield. Designed & manufactured in Australia.
Operation power:
The NTG-1 is designed to operate from standard P48 phantom power. The NTG-1 will operate between 44 V to 52 V applied with positive polarity to pin 2 and pin 3 via the output XLR connector.
Operation output impedance:
The NTG-1 will operate satisfactorily into a load impedance as low as 1 k§Ù. If a load below this is used, the output signal level will be reduced. The NTG-1¡¯s output is balanced between pin 2 (hot), pin 3 (cold) and pin 1 is ground.
Acoustic principle: Line plus Gradient.
Directional pattern: Super-Cardioid.
Frequency range: 20 Hz ~ 20 kHz selectable HPF @ 80 Hz/12 dB octave
Output impedance: 50 Ù
Signal noise ratio din iec 651: 76 dB (1 kHz rel. 1 Pa; per IEC651, IEC268-15)
Equvalent noise: 18 dB SPL (per IEC651, IEC268-15)
Maximum spl: 139 dB (@ 1% THD into 1 kÙ)
Sensitivity: -36 dB re 1 Volt/Pascal (15 mV @ 94 dB SPL) /- 2 dB (at 1 kHz in free field into open circuit)
Dynamic range din iec 651: 121 dB (per IEC651, IEC268-15)
Power supply voltage: P48 Phantom, 44 V to 52 V
Current consumption: 3.5 mA
Output connection: 3 pin XLR, balanced output between pin 2 ( ), pin 3 (-) and pin 1 (ground)
Weight with battery: 105 g approx. (3.37 oz.)
