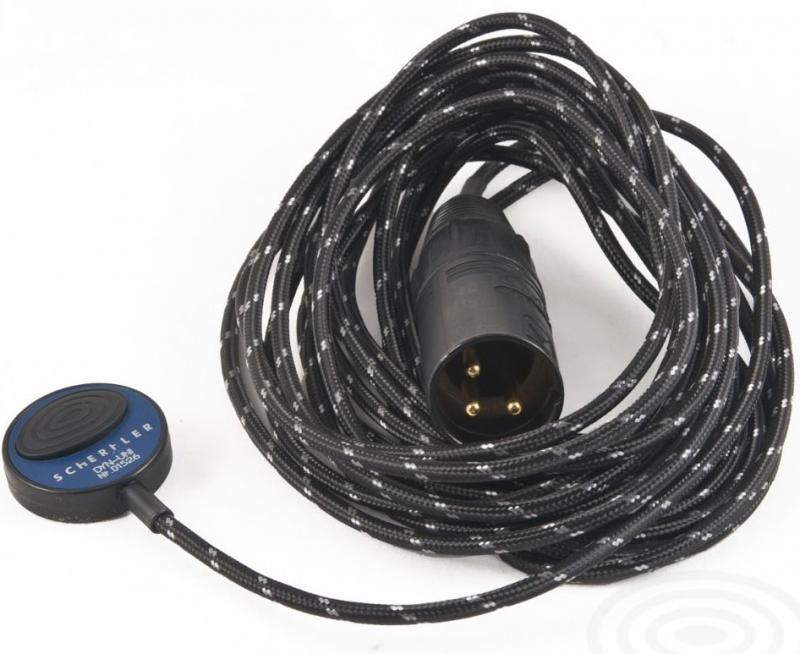

Schertler DYN-UNI

Schertler's DYN-UNI is a fully balanced, passive dynamic contact microphone that does not include an active preamp and therefore requires no phantom power.

It features passive filtering technology and has a modified frequency response to guarantee a linear result.

The DYN-UNI has a new sleek, lightweight design and is supplied with Schertler's own customized cable that has an extended length. The cable is both robust and torsion resistant, designed to withstand the rigours of daily use while delivering best possible performance results.

The DYN-UNI can be easily and safely applied to even the most valuable of instruments using special adhesive putty. It can also be quickly transferred between instruments during performances or recording sessions.
  • Output impedance : 380 ohm @ 1 KHz
  • Frequency Response : 20 Hz to 18 kHz
  • Dynamic range : 139 dB, 145 dB typical
  • Sensitivity (on instrument) : ca. -38 dB
  • Sensitivity (theoretical) : 8 mV/g
  • Mechanical decoupling : Butterworth 2nd order, Q=6
  • Temperature range : -20° C to +70° C
  • Contacts : All hard gold plated 0.5 mm
  • Connection : XLR balanced
  • Cable Length : 4m
  • Reviews
    Free shipping in Canada. Conditions
    Additional information
    For more information about the DYN-UNI, please visit the website of Schertler
