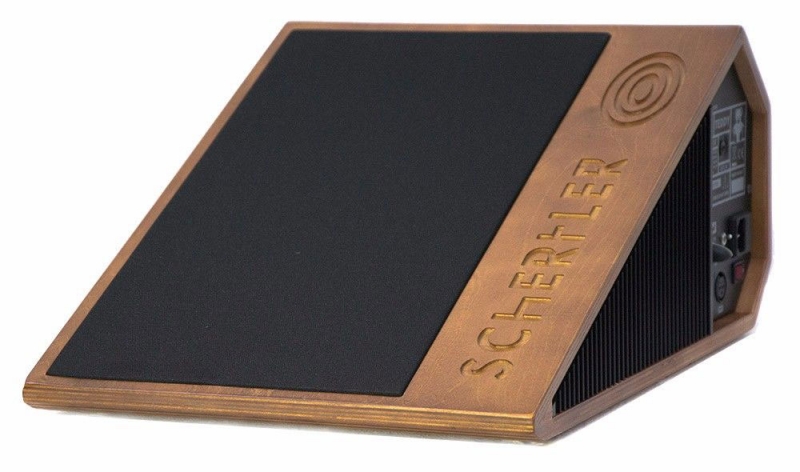

Schertler TEDDY Wood
MPN #TEDDY-W-US
Specially designed to be the perfect on-stage partner, TEDDY provides the performing musician with 200W of power without taking any of the limelight
The monitor's sleek shape and "low profile" enables it to be placed close to the performer for maximum audibility, without creating a visible obstacle for the audience.
TEDDY features a coaxial speaker for constant sound directivity, with a specific inclination angle that makes it ideal for both standing and seated performances.

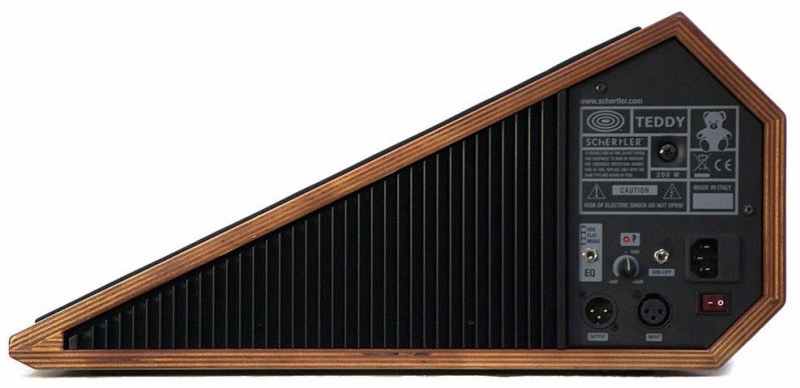

The monitor's intuitive control panel includes a single Sensitivity knob (rather than a common volume control) for adjusting the signal level from -9dB to +6dB. This enables finer regulation of the signal sent from the mixer. The EQ switch provides two pre-shaped curves for adjusting the sound, while the Ground Lift switch protects the signal from unwanted ground noise.
XLR input and output connectors allow a chain of several monitors to be created - all connected to the same audio signal path. Like all latest generation Schertler amplifiers, TEDDY is fully analog.

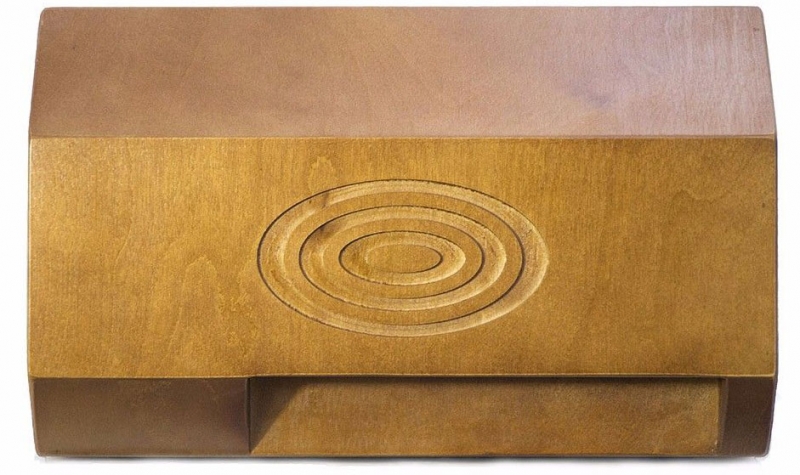

TEDDY is available in a choice of wood or anthracite finishes. The more delicate wood finish is perfect for studio or home use, blending with a range of room interiors. The anthracite finish is designed for performance and touring applications, where a more robust exterior finish is required.
Specifications
Weight: 12 kg (26.45lb)
Dimensions: 35.5x22x47cm
Frequency Response: 80 Hz to 17 kHz (+/-3dB)
Speakers: 8" Coaxial woofer 1" Compression dirver
Construction: Birch laminated
Controls: Volume -9to+6dB, Ground Lift, Filters: Flat, Voice and Music
Inputs: XLR Balanced 50Kohm @ 1Khz
Input Sensitivity: XLR Balanced 0dBu (0.775Vrms)
Outputs: XLR balanced parallel out
Crossover: Electronic -24db/octave
SPL max: 96.5 db SPL
Power Handling: 200W continous 300W Peak
