UPC/EAN #615104366602     MPN #509653

$519.00

Save 20%, MSRP $649.00
Financing available
Free shipping in Canada. Conditions

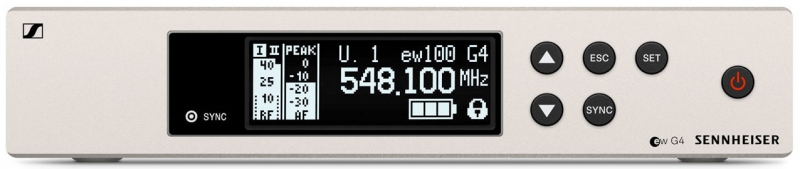

True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control with evolution wireless G4 100 Series systems.



  • True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control.
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 meters / 300 feet
  • High RF output power (up to 30 mW) depending on country regulations
  • Frequency range
    A: 516-558 MHz

    Dimensions: Approx. 190 x 212 x 43 mm
    Compander: Sennheiser HDX
    THD, total harmonic distortion: 0.9 %
    Weight: Approx. 980 g

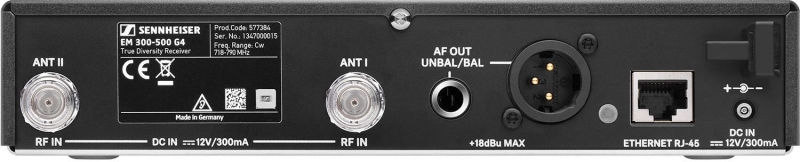

    Audio output
  • 6.3 mm jack socket (unbalanced): +12 dBu
  • XLR socket (balanced): +18 dBu

  • Signal-to-noise ratio: 110 dBA
    Switching bandwidth: up to 42 MHz
    Peak deviation: ±48 kHz
    Nominal deviation: ±24 kHz
    Modulation: Wideband FM
    Power supply: 12 V DC
    Antenna connector: 2 BNC sockets
    Current consumption: 300 mA
    Adjacent channel rejection: Typically 65 dB
    Intermodulation attenuation: Typically 65 dB

    Receiving frequency
  • Max. 1680 receiving frequencies
  • Adjustable in 25 kHz steps 20 frequency banks
  • Each with up to 12 factory-preset channels
  • No intermodulation 1 frequency bank with up to 12 programmable channels

  • RF sensitivity:
