HomepageMonitoringHeadphone Amps › Sennheiser HDVA 800

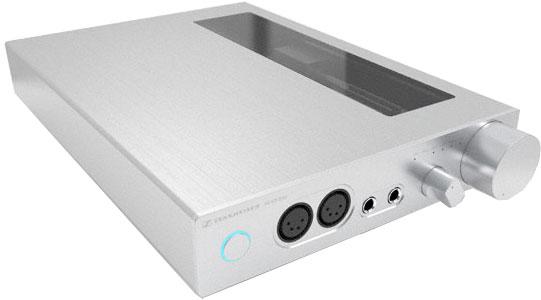

Sennheiser HDVA 800

The Sennheiser HDVA 800 is a high quality headphone amplifier with D/A converter for all common formats up to 24 bit / 192 kHz.

With Sennheiser's HDVD 800, sound is perfect. The HDVD 800 is able to connect with digital sources and is equipped with a high-quality Burr-Brown digital/analog converter (DAC) that converts digital audio data into analog signals with a resolution of 24 bits and a sampling rate of up to 192 kHz. This enables the HDVD 800 to transmit the entire frequency spectrum of high-end audio sources without any loss of frequencies.

In addition to the symmetrical inputs, the HDVD 800 also has an asymmetrical input socket; incoming signals are symmetrized before further processing takes place. Digital sources can be connected to the rear of the unit via an XLR (AES/EBU) input, optical and coaxial (S/PDIF) digital inputs or USB. All digital inputs accept signals up to 24 bit at 192 KHz*. Designed and manufactured in Germany, this high-end, solid-state amplifier harmonize perfectly and deliver an ultimate acoustic performance when paired with any of Sennheiser's audiophile headphones.
  • D/A transducer for all common formats up to 24 bit / 192 kHz
  • D/A transducer can be used for CD and DVD players
  • AES/BU, S/PDIF, USB inputs
  • Symmetrical (XLR) and asymmetrical (RCA) analog inputs
  • Symmetrical output
  • Sockets for four sets of headphones (two of which symmetrical)
  • Specifications
    Dimensions: (W x H x D): approx. 216 mm x 55 mm x 324 mm
    Frequency response: 0.3 Hz to 100 kHz (-3 dB)
    THD, total harmonic distortion: < -110 dB (1 kHz / maximum gain)
    Weight: 2,2 Kg
    Audio input
  • Analogue input XLR-3 : Max. input voltage 20 dBV / Input impedance 10 kOhm
  • Analogue input RCA: Max. input voltage (eff) 14 dBV / Input impedance 10 kOhm
  • Digital SPDIF (RCA): Max. sampling frequency 192 kHz /AES3-compatible) / Max. resolution 24 bit
  • Digital SPDIF (TosLink): Max. sampling frequency: 88,2 kHz (AES3-compatible) Max. resolution: 24 bit
  • Digital AES/EBU (XLR-3): Max. sampling frequency: 192 kHz (AES3-compatible) / Max. resolution: 24 bit
  • USB (USB-B) USB standard: USB 2.0 / USB 3.0 USB audio class: USB Audio 2.0
  • Power consumption: 9 W
    Input voltage range: 100-240 V AC / 50-60 Hz
    Price *
    Free shipping in Canada. Conditions
    Additional information
    For more information about the HDVA 800, please visit the website of Sennheiser
