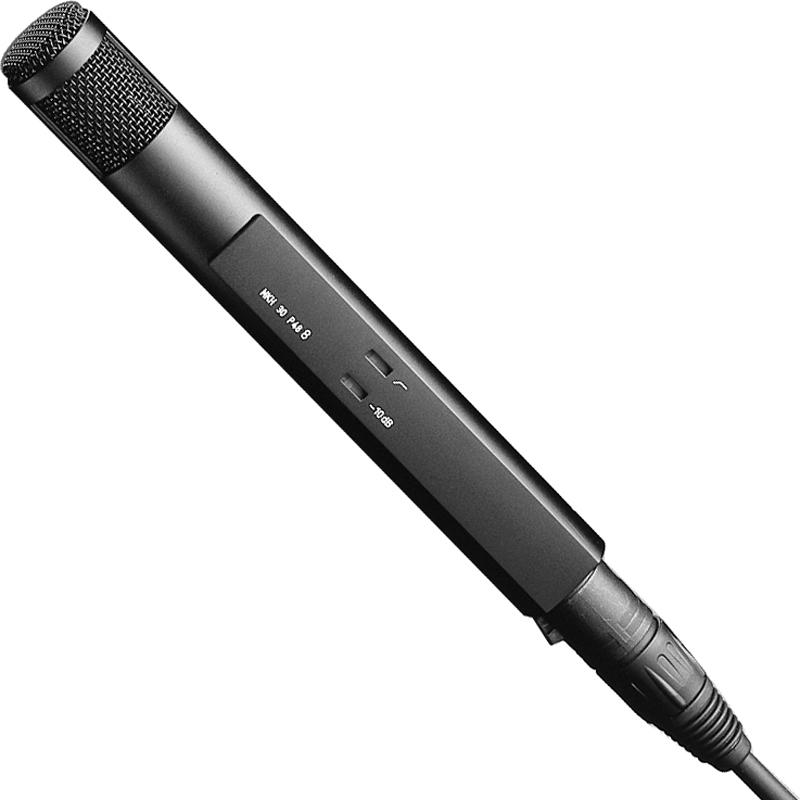

RF condenser microphone with figure-of-eight pick-up pattern. Particularly suited to soloists and small instrumental groups. Can also serve as an 'S' microphone in MS configuration
The symmetrical transducer design of the MKH 30 produces an unusually wide and smooth frequency response. It is particularly suited to soloists and small instrumental groups and can also serve as an 'S' microphone in MS stereo applications. As a support microphone it is particularly useful in the effective suppression of sounds from adjacent sound sources.
Microphone with figure 8 pick-up patternHighly symmetrical and frequency-independent pick-up patternHigh rejection of lateral soundsWide, flat frequency responseExceptionally low inherent self-noiseSwitchable roll-off filter to compensate for proximity effects at a distance of approx. 0.5 mSwitchable pre-attenuation
Current Consumption : 2 mAPick Up Pattern : Figure 8Frequency Response : 40 - 20,000 Hz (-3 dB)Sensitivity : 25mV/Pa (8mV/Pa +-1dB)Nominal Impedance : 150 ohmMin Terminating Impedance : 1000 ohmEquivalent Noise Level : 13 dB (18 dB) / 22 dB (27 dB)Max Spl : 134 dB (142 dB)Dimensions : 25mm x 174 mmWeight : 110 gTransducer Principle : Pressure gradient microphoneMax Output Voltage : 2.5V
