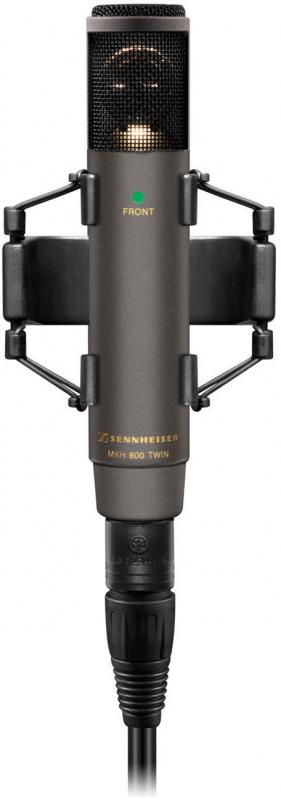

Sennheiser MKH 800 TWIN Nx

Universal studio condenser microphone of exceptional quality. Pick-up patterns can be remotely adjusted and optimized under monitoring conditions. Nextel (gray) color.

The MKH 800 TWIN is a universal studio condenser microphone of exceptional quality. It includes a dual capsule consisting of two symmetrical push-pull transducers with high linearity. This is a "side fire" microphone with the two cardioid pick-up patterns of the transducer aligned back-to-back across the axis of the microphone. The signals of both transducers are not combined in the microphone in order to generate differing pick-up patterns but are available separately as two channels at the microphone output. This allows the pick-up patterns of the MKH 800 TWIN to be remotely adjusted. The signals can be combined in any desired way in the mixing console in order to create all pick-up patterns from omni-directional to figure-8 with an infinite number of intermediate stages. Based on the legendary MKH 800, this microphone opens up to a new dimension of studio recordings.
  • Color: Nextel (flat gray)
  • The remote adjustability and the variable pick-up patterns make the MKH 800 TWIN a universal main microphone, soloist microphone or supporting microphone.
  • The pick-up patterns can be set and optimised under monitoring conditions. In other words, it is not necessary to fix the pick-up patterns definitively before recording.
  • A wide range of mixes for stereo and surround are possible (including in parallel).
  • Saving of the microphone signals in two channels also allows an unlimited range of mixes to be realised at a later date.
  • The high sensitivity ensures interference-free signal paths as a result of high signal levels. The inherent noise of downstream microphone amplifiers is thus of minor importance.
  • Very low inherent noise prevents the masking of filigree sound structures. The depth of the acoustic can be heard more clearly too.
  • High linearity of the transducers minimises the signal distortions and ensures the transparency of the sound even at high sound levels.
  • The frequency response extends to 50 kHz, thus improving the resolution for complex acoustic details.
  • Stable pick-up patterns minimise sound distortion in the direct and diffuse field.
  • Negative acoustic effects caused by the housing and the sound inlet basket are minimised.
  • The small, slim design and the optionally dark housing design (Nextel) make it visually unobtrusive.
  • Specifications
  • Dimensions : d 27 mm, l 136 mm :
  • Frequency response (microphone) : 30 - 50000 Hz :
  • Transducer principle (Microphone) : RF condenser microphone :
  • Weight : 172 g :
  • Pick-up pattern : omni-directional, cardioid, figure-of-eight :
  • Sensitivity in free field, no load (1kHz) : 40 mV/Pa (-28 dBV) :
  • Nominal impedance : 100 Ohm :
  • Min. terminating impedance : 2000 Ohm :
  • Phantom powering : 48V +/- 4V :
  • Equivalent noise level : 12 dB (A) :
  • Equivalent noise level weighted as per CCIR 468-3 : 20 dB :
  • Maximum sound pressure level (passiv) : 134 dB SPL :
  • Current consumption : 2 x 3.1 mA :
  • Dynamic range : 122 dB(A), 114 dB (CCIR)
  • Reviews
    Price *
    Free shipping in Canada. Conditions
    Additional information
    For more information about the MKH 800 TWIN Nx, please visit the website of Sennheiser
