MPN #509549

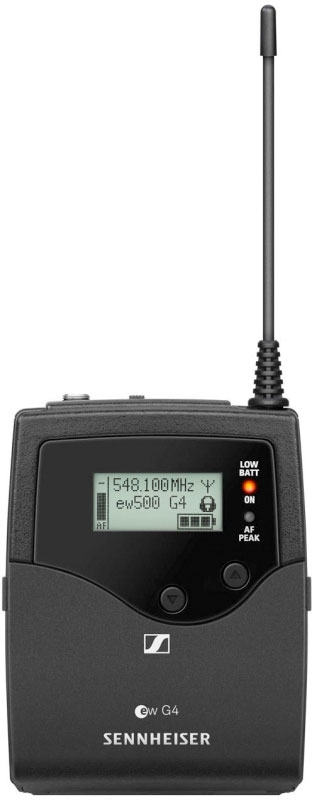

Sennheiser SK 500 G4 (GW1: 558-608 MHz)

$579.00

Save 14.7%, MSRP $679.00
Financing available
Free shipping in Canada. Conditions

Powerful bodypack transmitter with increased bandwidth and transmission power, ready to take the world's biggest live stages



For evolution wireless G4 500 Series systems.
  • Powerful bodypack transmitter with increased bandwidth and transmission power
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
  • Frequency range: Gw1: 558 - 608 MHz
    Dimensions: Approx. 82 x 64 x 24 mm
    Compander: Sennheiser HDX
    THD, total harmonic distortion: 0.9 %
    Weight: (incl. batteries) approx. 160 g
    Signal-to-noise ratio: 115 dBA

    RF output power (switchable):
  • Low: typ. 10 mW
  • Standard: typ. 30 mW
  • High: typ. 50 mW

  • Switching bandwidth: up to 88 MHz
    Peak deviation: ±48 kHz
    Nominal deviation: ±24 kHz
    Operating time: Typically 8 h
    Modulation: Wideband FM
    Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack

    Current consumption
  • at nominal voltage: typ. 180 mA
  • with transmitter switched off: 25 A

  • Input impedance: 40 k, unbalanced / 1 M
    Max. Input voltage: 3 Veff
    Powering: 3 V battery / 2.4 V rechargeable battery

    Transmission frequency
  • Max. 3520 frequencies
  • adjustable in 25 kHz steps
  • 20 frequency banks
  • each with up to 32 factory-preset channels
  • no intermodulation
  • 6 frequency banks with up to 32 programmable channels

  • AF frequency response: Mic: 80 - 18,000 Hz, Line: 25 - 18,000 Hz
    Temperature Range: -10 °C to +55 °C
    Frequency stability: ±15 ppm

    What's in the box
  • SK 500 G4 bodypack transmitter
  • 2 AA batteries
  • pouch
  • quick guide
  • safety guide
  • manufacturer declaration sheet
