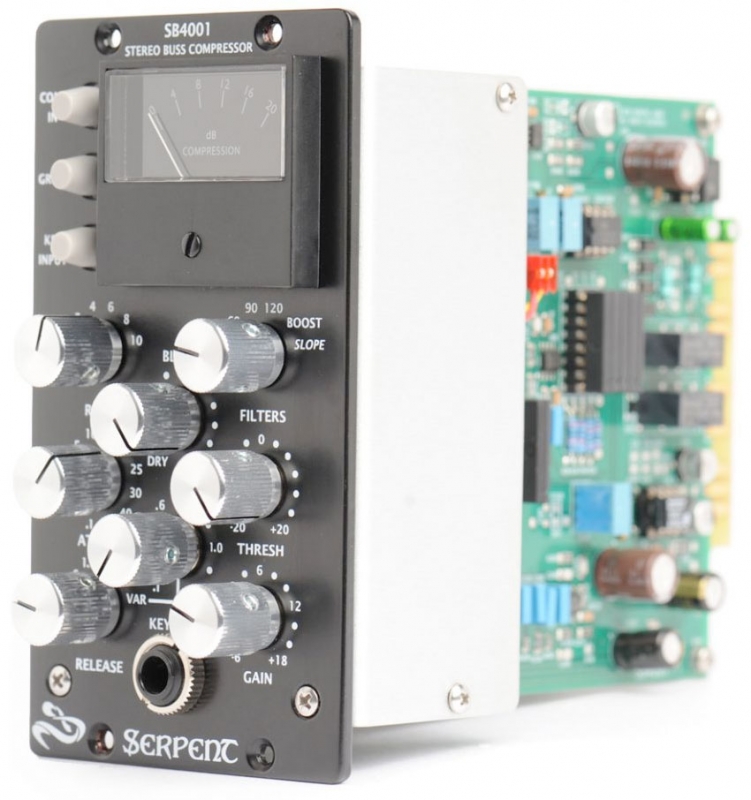

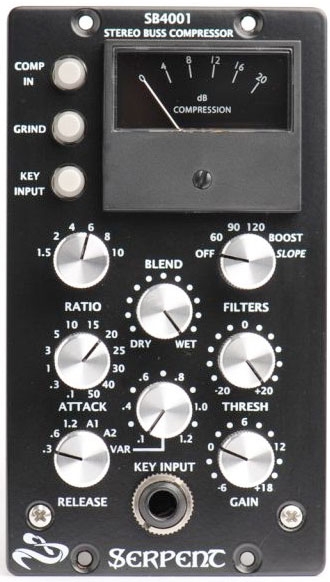

The SB4001 is a Quad VCA based compressor, and can be used for either stereo or mono applications.
The VCA is used for the gain reduction and is a very accurate and powerful design, perfect for a number of signal types and musical applications. VCA's have historically been used in a large number of classic compressors. While the SB4001 is not directly based off of any of these classic compressors the nature of the VCA lends itself to share some of the sonic characteristics. We have taken these sonic qualities and have done our best to improve and augment them by carefully tuning our circuit and features to take full advantage of what can be done with these VCA's. We hope you enjoy it as much as we do.
The SB4001 pushes the limits and sets new standards for the 500 Series Format. Boasting Quad VCA's, 6 ratio's, 10 Attack Times, High Pass/Boost/Slope Sidechain Filters, Wet/Dry Blend Control, External (Key) Input, Classic Stepped Release Settings, Classic And Alternate Auto Release, Variable Release Control, as well as "Grind" Mode (a proprietary valve style harmonic drive adding vintage color), the SB4001 is capable of delivering whatever sound you need. Whether Clean, Dirty, Vintage, Subtle, or Crushed, the SB4001 is sure to be one of the most flexible compressors in your arsenal.
All units are made in the USA to an exceptional level of craft and workmanship.
Made in the City of Brotherly Love: Philadelphia, USA.Quad VCA's (For Superior Dynamic Range)Electronically BalancedTrue Bypass (Relay Controlled)Protection From 48V Phantom PowerPowder Coated Front Panel For Extra Durability.All Hand Made Thru Hole Main Audio PathRatios - 1.5,2,4,6,8,10Attack Times (Stepped) - .1,.3,1,3,5,10,15,20,25,30,40,50Release Times (Stepped) - .3,.6,1.2, Classic Auto release (A1), Alternate Auto Release (A2)Release Times (Variable - Engaged By Last Position On Stepped Switch) - Any Time From .1 Sec to 1.2 SecSidechain Filters - 60Hz, 90Hz, 120Hz, Boost Mode, Slope ModeWet/Dry Blend (For Parallel Processing)"Grind" Mode - Special Valve Style Harmonic Drive Mode, adding vintage colorExternal/Key Input - Accepts Balanced or Unbalanced Inputs (inserted before sidechain filters)Gain (-6 to +18)Premium Grayhill Rotary SwitchesPremium Sealed PotsAll Machined Aluminum Knobs
Input: 22KHz Input Impedance, Electronically Balanced (Accepts Balanced orUnbalanced Signals)Output: <100 Ohm Output Impedance, Transformer-like Floating Output,Electronically Balanced (Accepts Balanced or Unbalanced Signals)External In: 22KHz Input Impedance, Electronically Balanced (TRS), (AcceptsBalanced or Unbalanced Signals)Maximum Input Level: +21dbuMaximum Output Level: +21dbuMaximum Output Load: 600 OhmGain: 24db (+/-1dbu) [-6 to +18]Gain Reduction Element: Quad VCAFrequency Response: (20Hz-20KHz) +/-0.11dBTHD+N: (20Hz-20KHz) Typically 0.008%Noise Floor: -100dbuDynamic Range: >119db
Manufacturer Part Number : SB4001
