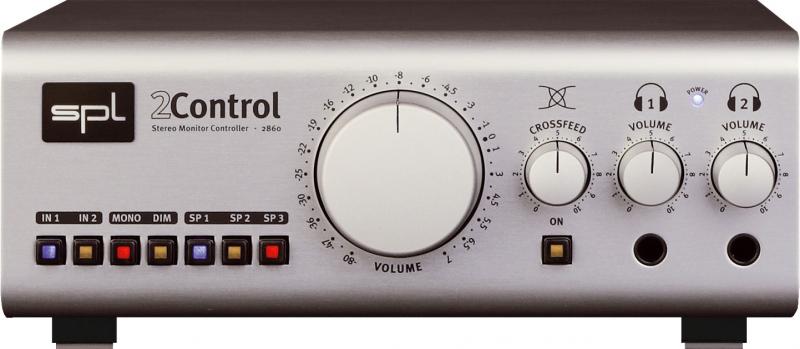

SPL 2Control

The 2Control is an excellent sounding monitor controller. With its innovative Phonitor matrix with adjustable Crossfeed it allows to mix on headphones just like on loudspeakers.

The SPL 2Control combines loudspeaker and headphone monitoring in a compact, user-friendly and high quality control device. Any studio based on a digital audio workstation (DAW) can benefit from its important and essential monitoring functions.
  • 2 balanced XLR inputs/sources
  • 2 headphone amplifier with individual Volume controls
  • 3 balanced XLR speaker outsputs (2x stereo for e.g. full range and near field speakers and 1x mono for i.e. a subwoofer)
  • Phonitor matrix with adjustable Crossfeed for both headphones
  • 45mm aluminium knob RK27 Alps "Big Blue" potentiometer
  • Mono switch
  • Dim switch
  • Extendable front feet
  • Made in Germany
  • Specifications

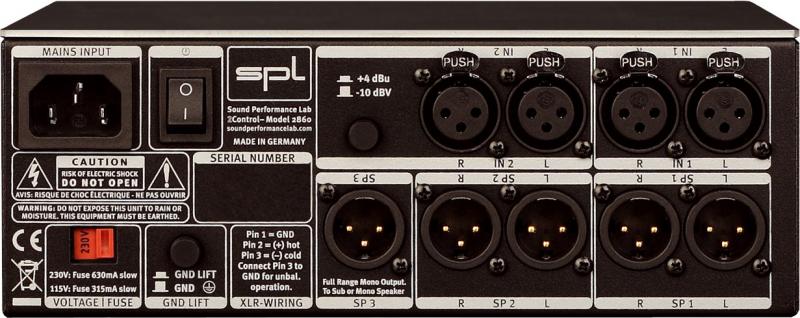

    Inputs & Outputs:
    Electronically balanced instrumentation amplifiers
    Input sockets: XLR
    Output sockets: XLR, Stereo TRS
    Nominal input level: IN 1: +4dBu, IN 2: +4dBu/-10dBV
    Input impedance: 22kOhm
    Output impedance: 75Ohm/Headphones: 22Ohm
    Max. input level: 21,3dBu
    Max. output level: 21,3dBu
    Volume control range: -80dB to +6,6dB
    Headphones: -65dB to +14,9dB

    Frequency range: 10Hz to 100kHz (-3dB)
    CMRR: >60dB (@1kHz, 0dBu input level, unity gain)
    THD&N: 0,002% (@1kHz, 0dBu input level, unity gain)
    Signal to noise ratio: -96dB/Headphones: -85dB (A-weighted)

    Power Supply:
    Features: Toroidal transformer with voltage selector
    Fuses (slow blow): 230V/50Hz: 315mA, 120V/60Hz: 630mA

    Dimensions and Weight:
    Housing (BxHxT): 215x80x220mm
    Depth w. controls & sockets: 245mm
    Height with feet: 95mm
    Front height w. opened feet: 126mm
    Weight: 2,1kg

    Note: 0dBu = 0,775V. Specifications are subject to change without notice.
