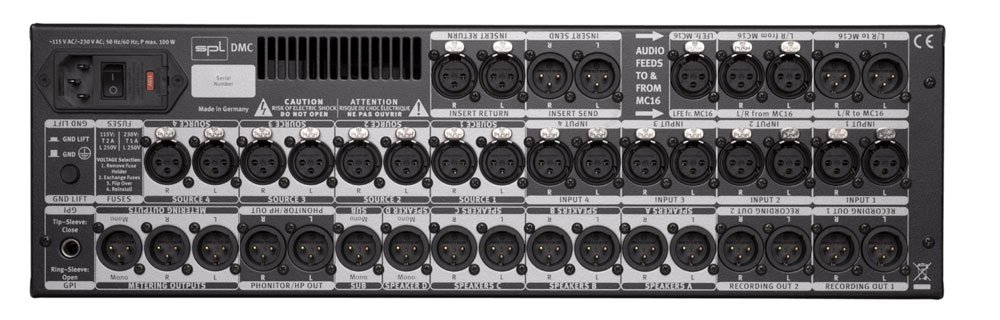

The DMC console has 4 stereo inputs and 4 stereo sources with 2 stereo recording outputs as well as 3 stereo and 2 mono speaker outputs that can be expanded with the MC16 controlle

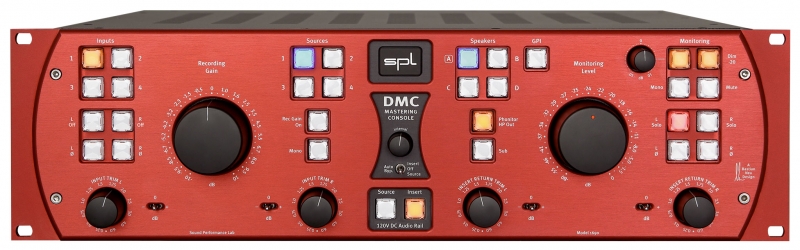

Mastering Console
The DMC is the heart of the mastering studio. The converters, the players, the DAW, the recorders and the speakers are connected to it. The audio quality of the console is therefore crucial. Like all devices of the mastering series, the DMC works on the unparalleled 120V technology.

Inputs & Sources
Audio signals that shall be processed are connected to the Inputs and audio signals for comparison or playback are connected to the Sources. Four stereo inputs pairs are available for each.

Each input channel can be switched on/off, phase reversed and trimmed in 0.25 dB steps. A stereo input can be switched to mono.

The large potentiometer for the recording gain allows sensitive gain rides. If it is not used, it should not be activated. This keeps the entire control stage outside the signal path.

Monitoring & Inserts
Three pairs of speakers can be operated for full-range, mid-field and near-field monitors. Speakers D is for a mono loudspeaker.

Preferably a Phonitor headphone amplifier is connected to the Phonitor HP Out, whereby it can be programmed whether the loudspeaker is automatically switched off during headphone operation or not.

The same applies to the subwoofer. It can be programmed with which monitor it is paired and activated together.

The insert return can also be trimmed in 0.25 dB steps to compensate for the finest level differences after an insert chain. The Hermes Mastering Router is preferably connected to the inserts, with which up to eight stereo processors can be connected and freely routed and stored.

In the monitoring section, each loudspeaker channel can be solo?ed and phase reversed.

The large monitoring level potentiometer has an illuminated indicator so that the monitor level can be easily assessed even from a greater distance.

A loudness compensation (+/- 10 dB) can be activated. Alternatively it can be linked to the Insert, Sources or Inputs switches allowing loudness compensation at any stage.
  • Dual channel mastering console (3U)
  • 120V DC Audio Rail - 5G SUPRA op-amps
  • 4 stereo inputs and 4 stereo sources
  • 2 stereo recording outputs
  • 3 stereo and 2 mono speaker outputs (sub, radio speaker)
  • Expandable multi-channel monitoring
  • 0.25dB stepped input & insert return trims
  • Insert & Source Auto Bypass
  • Phonitor direct output
  • Variable dim (e.g. loudness compensation)
  • GPI switch function (Talkback, Red light etc.)
  • Stereo and mono metering outputs
  • Inputs
  • Max. Input Level: +32.5 dBu
  • Input Impedance: 20 kOhm (balanced)
  • CMRR (at 0 dBu): > 82 dBu

  • Outputs (Speaker Output)
  • Max. Output Level: +32.5 dBu
  • Output Impedance:
