Tascam CD-400U
UPC/EAN #043774033386
MPN #CD-400U
$699.00
Save 19.6%, MSRP $869.00

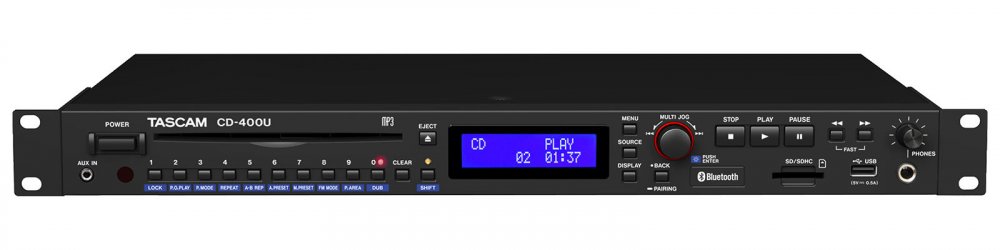

CD-400U. a professional, versatile, and reliable media player with the latest audio content playback options for institutions, venues, retail, schools, restaurants, and more.
deal for a variety of installations, the CD-400U delivers the latest wireless and solid state technology content playback by offering CD, Bluetooth wireless, SD, USB, and AM/FM tuner capability for fast and easy playback of professional quality audio. Recording from the CD or AM/FM source to SD or USB media is possible.

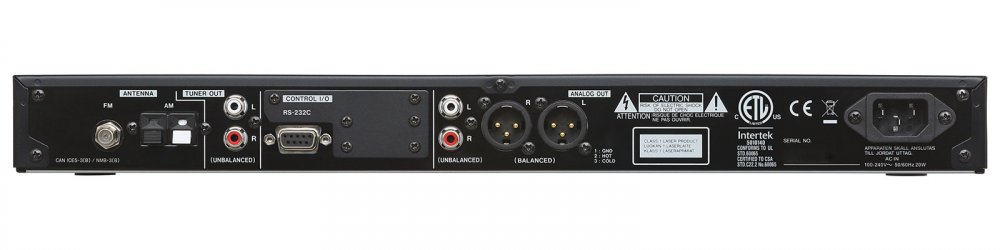

Professional audio connections are provided in the form of XLR balanced outputs, RCA unbalanced outputs, a 2nd set of RCA outputs dedicated to the AM/FM audio, an 1/8" auxiliary input for utilizing audio from any source, and headphones for quick and silent monitoring and confirmation of operation.
The CD-400U has also been designed for full-proof and automatic operation wth the inclusion of a "panel lock" function which disables the panel buttons, and an automatic playback function which starts playback upon power up.
Lastly, to ensure seamless integration into more comple systems, external control is possible using the standard RS - 232C terminal.
Features
CD/SD/USB/and FM/AM tuner realtime audio playbackWireless Bluetooth playback when paired with a Bluetooth-enabled device like a smartphone, tablet, or computerOutputs: XLR, RCA X 2, and headphone1/8" audio input for playback from any external source"Power on Play" function starts audio playback automatically when powered on"Panel Lock" function disables buttons to avoid unauthorized operation or programmingReal time recording from CD or FM/AM tuner to SD or USB mediaExternal control via RS-232CControl via ethernet with optional IF-E100 ethernet card is planned in the future
Specifications
Rating
Supported media: CD, CD-R* (only CD-DA format), CD-RW, SD cards* (512 MB - 2 GB), SDHC cards* (4 GB - 32 GB), USB flash drives* (512 MB - 64 GB)
* Media must be formatted FAT16/32.
Playback file formats: CD-DA: 44.1 kHz, 16 bit, MP3: 44.1 / 48 kHz, 32-320 kbps and VBR (MPEG1/2 Audio Layer-3), WAV (USB/SD only): 44.1/48 kHz, 16 bit, WMA 44.1/48 kHz, 32-320 kbps and VBR (WMA ver.9 standard, DRM not supported), AAC (USB/SD only) 44.1/48 kHz, 8-320 kbps and VBR (MPEG4 AAC-LC (Audio stream))
Number of channels: 2 channels (stereo), 1 channel (mono)
Dubbing file formats MP3: 44.1 kHz, 96/128/192/320 kbps (96/128kbps with tuner)
Analog audio inputs/outputs
AUX IN jack
Connector: 3.5mm stereo mini jackNominal input level: 20 dBV (0.1 Vrms)Maximum input level: 4 dBV (0.63 Vrms)Input impedance: 10 k or higherAnalog output (unbalanced)Connectors: RCA pin jacksRated output level: 10 dBV (0.316 Vrms, when analog output level setting OFF)Maximum output level (switchable): +6 dBV (2.0 Vrms, when analog output level setting OFF)Output impedance: 200Tuner outputs (unbalanced)Connectors: RCA pin jacksRated output level: -10 dBV (0.316 Vrms)Maximum output level: +6 dBV (2.0 Vrms)Output impedance: 200
Analog output (balanced)
Connectors: XLR-3-32 (1: GND, 2: HOT, 3: COLD)Rated output level: +4 dBu (1.23 Vrms, when analog output level setting OFF)Maximum output level (switchable): +20 dBu (7.75 Vrms, when analog output level setting OFF)Output impedance: 100Phones jackConnector: 6.3mm (1/4") standard stereo jackMaximum output: 20 mW + 20 mW or higher (THD+N 0.1% or less, into 32 load)Control input/outputRS-232C connector: 9-pin D-sub (female, inch-standard)
Audio performance
Frequency response: 20 Hz - 20 kHz: ±1.0 dB (when 44.1/48kHz sampling frequency, CD/SD/USB playback, JEITA)Distortion: 0.005% or less (when CD/SD/USB playback, JEITA)S/N ratio: 95 dB or higher (when CD/SD/USB playback, JEITA)Dynamic range: 90 dB or higher (when CD/SD/USB playback, JEITA)Crosstalk between channels: 90 dB or higher (when CD/SD/USB playback, JEITA)
Bluetooth
Bluetooth version: V4.2Output class: 2 (about 10m* unobstructed transmission distance)Supported profiles: A2DP, AVRCP 1.0Supported A2DP codecs: SBC, AAC, QualcommaptX?Supported A2DP content protection: SCMS-T
Tuner
Frequency rangeUS model: FM: 87.5 MHz to 108.0 MHz, AM: 520 kHz to 1,720 kHzAntenna connectors: FM: F-type (female) AM: 2-pin push terminal
Other
Power: AC100-240V, 50/60 HzPower consumption: 10WDimensions (W x H x D): 482.6 x 45 x 300.5Weight: 3.3 kgOperating temperature range: 535/ 41-95Permitted installation tilt: 30° or lessAccessories: AC power cord, Wireless remote controller, "RC-CD400", a rack-mounting screw kit, FM antenna, AM antenna, Owner's manual/warranty
