Tascam ML-32D
UPC/EAN #043774033393
MPN #ML-32D
$4599.00
Save 20%, MSRP $5749.00

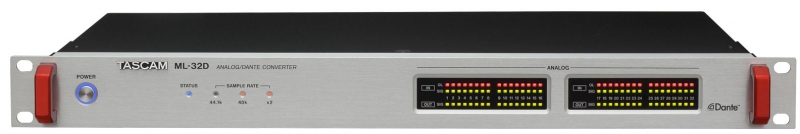

TASCAM ML-32D is a Dante-focused converter made specifically to insert or extract analog audio into or out of a Dante network using external breakout devices that utilizes DB25.

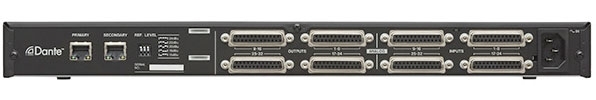

A poweful and flexible solution, the TASCAM ML-32D has 4 D-Sub intputs and 4 D-Sub outputs, whch can easiy be connected to any of the many devices that utilize D-Sub connectors such as microphone preamplifiers, large and small format console mixers, audio interfaces, amplifiers, and euro block connector devices. This simple, yet elegant, solution enables audio to be quickly and easily inserted into - or extracted from - the Dante audio stream.
About Dante
The Dante protocol was developed to provide uncompressed, multi-channel, low-latency digital audio over a standard Ethernet network aupporting as many as 1024 channels of 32b bit/192kHz audio over an existing CAT 5/6 Ethernet system.
Since inception, Dante has seen steady adoption by a growing number of systems integrators, especially those specializing in AVB (Audio Video Bridging). In addition, Dante continues to gain a foothold in the live sound arena, with hundreds of hardware products from various manufacturers supporting this innovative communications protocol. These live sound applications include: House of Worship (HOW), institutional installations, theaters, audio for stadiums and other public facilities and broadcast.
Features
Dante focused interface for connection of external audio into or out of a Dante audio network32 channel analog line input and 32 analog line outputs (48kHz/96kHz) using 8 D-Sub connectorsDual redundant Ethernet jacks which support both primary and secondary connectionsUp to 24 bit/96kHz qualityLED display for signal level and overload per input/output channelReference level dip switches for selectable DBu level meteringFirmware updatable via Dante portAES67 and Revenna compatible
Specifications
Formats
44.1/48 kHz, 16/24 bit88.2/96 kHz, 16/24 bit
Input/output ratings
PRIMARY/SECONDARY connectorsConnector: RJ-45Transmission protocol: DanteGigabit Ethernet standard: 1000BASE-T (IEEE 802.3ab)Cables: category 5e or faster STP cables
ANALOG OUTPUT connectors
Connector: D-sub 25-pinLocking screws: No. 4-40 UNC (inch type)Nominal output levels: +4 dBu, +6 dBu (only when maximum output level is +15 dBu)Maximum output levels: +24 dBu, +22 dBu, +20 dBu, +18 dBu, +15 dBu (set by REF. LEVEL switches)Output impedance: 200 or lowerApplicable load impedance: 2 k or higher
ANALOG INPUT connectors
Connector: D-sub 25-pinLocking screws: No. 4-40 UNC (inch type)Nominal input levels: +4 dBu, +6 dBu (only when maximum input level is +15 dBu)Maximum input levels: +24 dBu, +22 dBu, +20 dBu, +18 dBu, +15 dBu (set by REF. LEVEL switches)Input impedance: 10 k or higher* 0 dBu=0.775 Vrms
Audio performance
ANALOG IN to DANTE OUT
Frequency response: +0.1 dB/-0.5 dB: 20 Hz/20 kHz (-16 dBFS input, 44.1/48 kHz sampling frequency, JEITA), +0.1 dB/-0.5 dB: 20 Hz/40 kHz (-16 dBFS input, 88.2/96 kHz sampling frequency, JEITA)Distortion (THD+N): 0.001% or less (-1 dBFS input, 1 kHz, 44.1/48/88.2/96 kHz sampling frequency, JEITA)S/N ratio: 113 dB or higher (44.1/48/88.2/96 kHz sampling frequency, JEITA)Crosstalk: 115 dB or higher (1 kHz, 44.1/48/88.2/96 kHz sampling frequency, JEITA)
DANTE IN to ANALOG OUT
Frequency response: +0.1 dB/-0.5 dB: 20 Hz/20 kHz (-16 dBFS input, 44.1/48 kHz sampling frequency, JEITA), +0.1 dB/-1.0 dB: 20 Hz/40 kHz (-16 dBFS input, 88.2/96 kHz sampling frequency, JEITA)Distortion (THD+N): 0.001% or less (-1 dBFS input, 1 kHz, 44.1/48/88.2/96 kHz sampling frequency, JEITA)S/N ratio: 110 dB or higher (44.1/48/88.2/96 kHz sampling frequency, JEITA)Crosstalk: 115 dB or higher (1 kHz, 44.1/48/88.2/96 kHz sampling frequency, JEITA)
Other
Power: AC100-240 V, 50/60 HzPower consumption: 22WDimensions: 483 x 45 x 303.8 mm (width x height x depth)Weight: 3.5 kgOperating temperature range: 0-40ยบIncluded items: Main unit x1, Power cord x1, Rackmount screw kit x1, Owner's Manual (this document) including warranty x1
