UPC/EAN #043774034499     MPN #MODEL12

$999.00

Save 20%, MSRP $1249.00
Financing available
Free shipping in Canada. Conditions

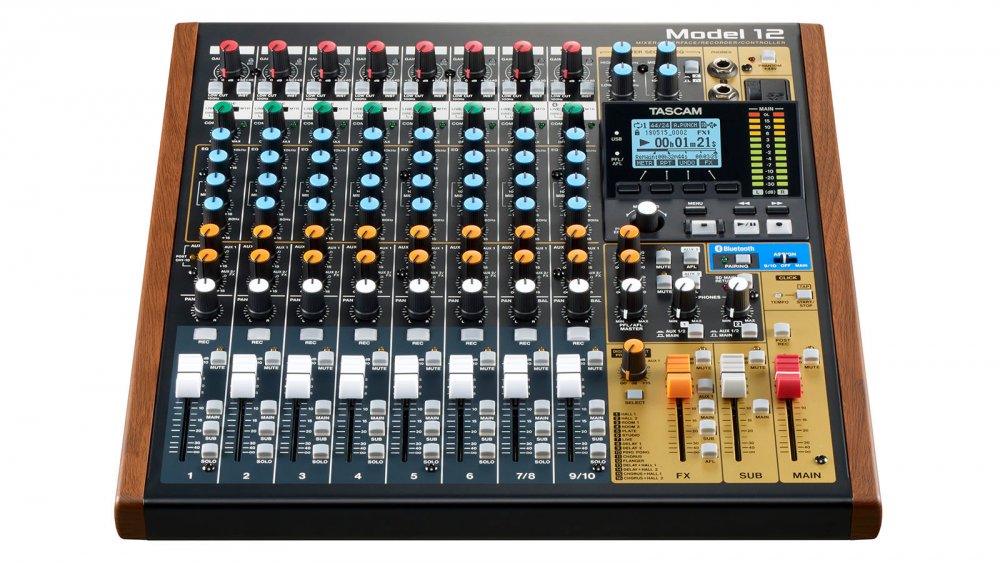

Hybrid mixer, 12-channel Multitrack Recorder/10-channel Digital Mixer with 12-in/10-out USB Audio Interface function (USB Type-C connector) and Built-in Effects



TASCAM's Model 12 is a compact all-in-one integrated mixer designed for music and multimedia creators, songwriters and performers. Features include TASCAM's critically acclaimed multi-track recorder, USB audio/MIDI interface, DAW control functions, and unique podcasting capability including mix-minus and smartphone inputs. The Model 12 supports your creative process, production, and workflow from start to finish including podcasting.
  • 10 inputs (8 Monaural XLR mic inputs [+48V support])/10 TRS line inputs) and Bluetooth 5.0 input, 3.5mm (1/8") TRRS input (for Smartphone)
  • TASCAM Ultra-HDDA Mic Pre-amp technology (CH 1 thru 6)
  • 1-knob compressor and 3 band EQ installed on all input modules
  • Equipped with 60mm faders
  • Selectable PFL/AFL modes and the in-place solo (SIP)
  • Stereo output to MAIN L-R and SUB L-R, monaural send to AUX1 and AUX2
  • Dual headphone output with individual volume and source selection
  • TASCAM FX equipped
  • Recording function with punch in/out support allows direct SD card 12 track recording / 10 track playback
  • 12 in / 10 out USB audio interface function (USB Type-C connector)
  • Built-in metronome function
  • Bluetooth 5.0 input with AAC and SBC codec support
  • Equipped with MIDI IN/OUT connectors, USB-MIDI interface function, and MTC output/MIDI clock output with SPP support
  • Supports simple DAW control (HUI/MCU protocol emulation)
  • Click output with TAP TEMPO support
  • Dual footswitch (TRS connector) function allows assignment of transport, FX, etc.
  • Smartphone input with mix-minus function
  • Recording section
    Supported Media: SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 512GB), Class 10 or higher required.
    File System: SD card: FAT16, SDHC card: FAT32, SDXC card: exFAT
    Recording File Format: WAV(BWF)
    Playback Format: WAV, BWF
    Sampling Frequency: 44.1k / 48k Hz
    Bit Depth: 16 / 24 bit
    Maximum Recordable ChannelNumber: 16ch (14ch + 2 stereo mix)

    Audio Inputs
    MIC IN CH1 to 8, 9/10, 11/12
    Connector: XLR 3-31 (1: GND, 2: HOT, 3: COLD, Balanced)
    Maximum Input Level: +10dBu
    Nominal Input Level : -8dBu
    Minimum Input Level: -58dBu
    Gain Adjustable Range: 0 to 50dB
    Input Impedance: 1.8k ohm
    Phantom Power supply: +48V

    LINE IN CH1 to 8, 9/10, 11/12
    Connector: 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND, Balanced)
    Maximum Input Level: +22dBu
    Nominal Input Level: +4dBu
    Gain Adjustable Range: -10 to +40 dB: CH 1 to 8, +20 to +30 dB: CH 9/10 and 11/12
    Input Impedance: 22k ohm

    INST IN CH 1 and 2
    Connector: 1/4" (6.3mm) TRS Phone jack (T: HOT, R: GND, S: GND, Unbalanced)
    Maximum Input Level: +22dBu
    Nominal Input Level : +4dBu
    Gain Adjustable Range: -10 to +40 dB
    Input Impedance: 1M ohm

    INSERT CH 1 and 2
    Connector: 1/4" (6.3mm) TRS Phone jack (T: Send, R: Return, S: GND)

    Return (Ring)
    Maximum Input Level: +18dBu
    Nominal Input Level : 0dBu
    Input Impedance: 10k ohm

    Send (Tip)
    Maximum Output Level: +18dBu
    Nominal Output Level: 0dBu
    Output Impedance: 100 ohm

    RCA INPUT
    Connector: RCA Pin jack (Unbalanced)
    Maximum Input Level: +8dBV
    Nominal Input Level: -10dBV
    Input Impedance: 10k ohm

    STEREO INPUT
    Connector: 1/8" (3.5mm) Stereo Mini jack (Unbalanced)
    Maximum Input Level: +8dBV
    Nominal Input Level : -10dBV
    Input Impedance: 10k ohm

    Outputs
    MAIN OUTPUT
    Connector: XLR 3-32 (1: GND, 2: HOT, 3: COLD, Balanced)
    Maximum Output Level: +22dBu
    Nominal Output Level: +4dBu
    Output Impedance: 100 ohm

    SUB OUT, MONITOR, FX OUT, CONTROL ROOM OUT
    Connector: 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND, Balanced)
    Maximum Output Level: +16dBu
    Nominal Output Level: -2dBu
    Output Impedance: 100 ohm

    PHONES OUT
    Connector: 1/4" (6.3mm) Stereo Phone jack
    Output Level: 80mW + 80mW (32 ohm loaded)
    REMOTE: Compatible with TASCAM RC-1F Foot Switch
    Connector: 1/4" (6.3mm) TS Phone jack
    USB Audio: for connection with PC
    Connector: USB B type 4-pin
    Format: USB2.0 High-Speed, Mass-storage class/USB Audio Class
    Sampling Rate: 44.1k / 48k Hz
    Bit Depth: 16 / 24 bit
    Maximum INPUT: 16ch
    Maximum OUTPUT: 16ch

    Bluetooth
    Version: 5.0
    Output Class: Class 2 (Transmission range: approx. 33 ft. / 10 m)
    * Transmission range may vary, depending on surroundings.
    Supported Profile: A2DP, AVRCP 1.0
    Supported A2DP Codecs: SBC, AAC
    A2DP Content Protection : SCMS-T

    Channel EQ
    Low-Cut: 100Hz, -18dB / Octave
    Hi-Shelving: +15dB / -15dB, Cut off frequency = 10kHz
    Mid: Peaking (MONO): +15dB / -15dB, 100Hz to 8kHz Variable
    (STEREO): +15dB / -15dB, Center frequency = 600Hz
    MID Band Q Fix, 0.55
    Low-Shelving: +15dB / -15dB, Cut off frequency = 80Hz

    Master section EQ
    Hi-Shelving: +15dB / -15dB, Cut off frequency = 10kHz
    MID-WIDE: Peaking
    +15dB / -15dB, 100Hz to 8kHz Variable, Q: 0.5 FIX
    MID-NARROW: Peaking
    +15dB / -15dB, 100Hz to 8kHz Variable, Q: 5 FIX
    Low-Shelving: +15dB / -15dB, Cut off frequency = 60Hz

    Internal Effects
    Type: 1 SMALL HALL / 2 LARGE HALL / 3 SMALL ROOM / 4 LARGE ROOM / 5PLATE / 6 STUDIO / 7 LIVE / 8 SHORT DELAY/ 9 DELAY / 10 PINGPONG / 11 CHORUS / 12 FLANGER / 13 DELAY + S.HALL / 14 DELAY+ L.HALL / 15 CHORUS + S.HALL / 16 CHORUS + L.HALL
    Power: AC 100 to 240V, 50/60Hz
    Power Consumption: 40 W
    Dimensions: 430(W) x 112.9(H) x 463(D)mm
    16.9(W) x 4.45(H) x 18.2(D)inch
    (including knob height and protrusion)
    Weight: 7 kg / 15.4 lb
    Operating Temperature: 5 to 35 C / 41 to 95 F
    Include Items: AC Cord, Owner's manual (incl. Warranty card)
    4.5
    greg e
    Ottawa, On
    April 9, 2021
    great machine with a lot of potential
    This device was exactly what i was looking for to record multiple tracks away from the computer. It sounds great, has a good amount of inputs and features, and the ability to work with phone headset input is very nice for sharing mixes and jams over zoom, skype, twitch, etc. Read more
