UPC/EAN #713541493094     MPN #WA-14

$699.00

Save 19.6%, MSRP $869.00
Financing available
Free shipping in Canada. Conditions

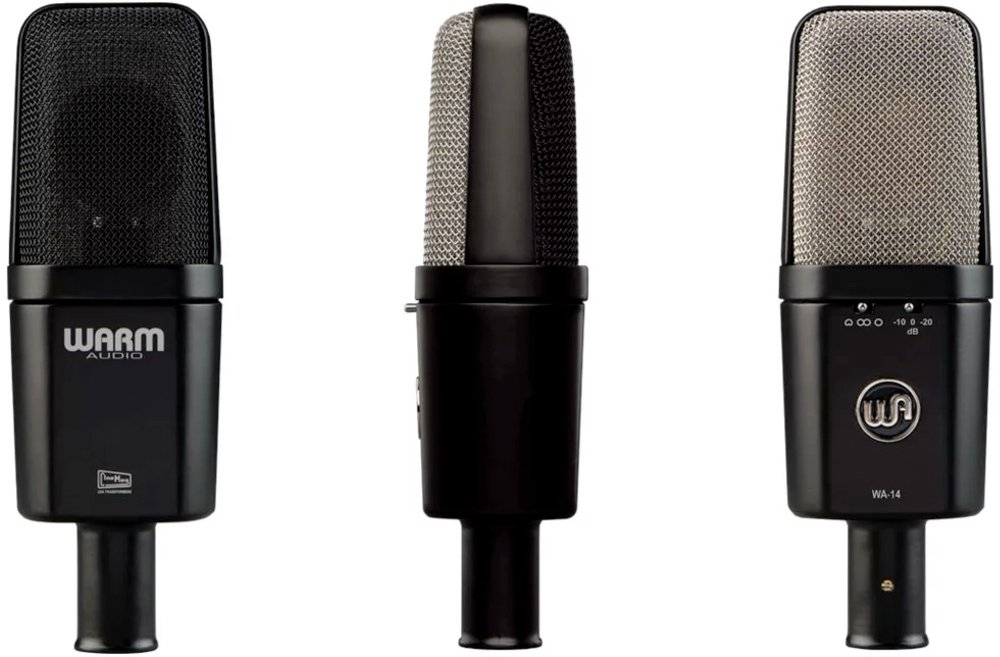

Large diaphragm brass capsule condenser microphone, which is based on the classic condenser microphone from the 70's that has been used on countless hit records



The WA-14 utilizes fully discrete classic circuit topology, including an all-brass CK12 style capsule design by "Lens Kondensator" and a custom premium CineMag USA transformer. The WA-14 can be used on an array of sources, which includes: punchy and warm intimate lead vocals, aggressive guitars and heavy percussion. The WA-14 provides a realism and thickness that is true to the vintage sonics but now at an affordable price.

All-brass Capsule Created By Warm

The LK12-B-60v is an all-brass, edge-terminated capsule that captures all the smoothness, rich top end, and other sonic qualities of the original CK-12 capsule. Using the backplate of the more modern CEK-12 variant as a basis, this capsule overcomes many of the manufacturing limitations of the original hand-made capsule which made it prohibitively complex and difficult to manufacture consistently or in high numbers. The o-ring and housing are all made from brass (no teflon parts), and our capsule diaphragm is 24k gold sputtered and skinned using 6 micron, NOS Japanese PET film (mylar). The end result is a very consistent, reliable capsule which matches the frequency response and tonality of the classic.
  • Large diaphragm condenser microphone with variable pad and three polar patterns
  • Features our own "Lens Kondensator" LK-12-B-60V edge-terminated, dual-backplate, all-brass vintage CK12 style capsule
  • Custom CineMag USA transformer

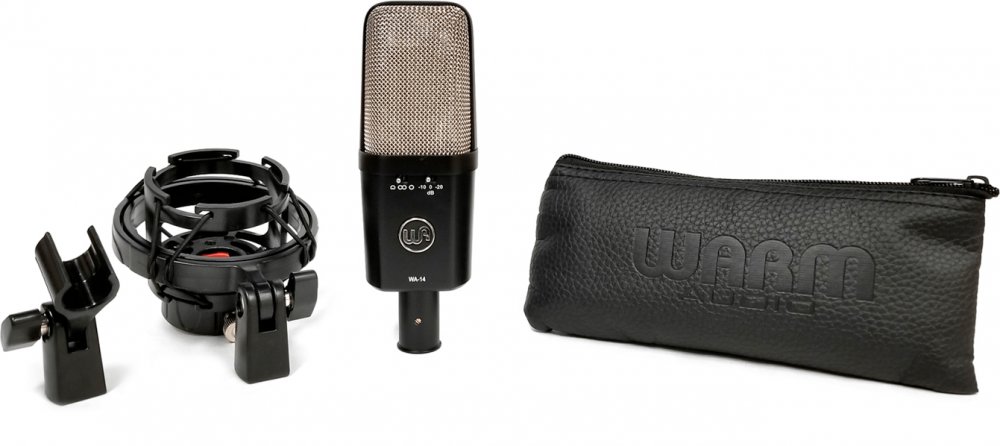

  • Includes shock mount and hard mount
  • Frequency range: 20Hz to 20kHz
  • Output pad: 0dB, -10dB, -20dB
  • Cardioid, figure of eight and omnidirectional patterns
  • Impedance: 150 ohms
  • Connector: 3-pin XLR
  • Requires +48V phantom power
  • Color: black (painted)
  • View more products from Warm Audio
