Zoom F1-SP
UPC/EAN #4515260018826
MPN #ZF1SP

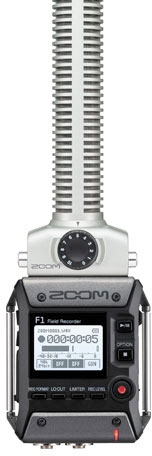

The F1-SP is a 2-Channel audio recorder with SGH-6 shotgun microphone
Features
wo-channel audio recorderCompatible with Zoom microphone capsulesSupports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formatsOne-touch button controls1.25" monochrome LCD displayRec Hold function to avoid accidental operation of buttonsStereo " Mic/Line In mini phone jack with Plug-in power (2.5V)Stereo " Phone/Line Output jack with dedicated volume controlBuilt in limiter and auto level control to avoid clippingPre-Record functionTone generator for calibrating audio levels between the F1 and a DSLR or video camera without the need for an attenuator cableSound marker function that outputs quick tone to make syncing audio and video easyRecords directly to micro SD and SDHC cards up to 32 GBMicro USB port for data exchange to and from computer and use as an audio interface with computer or iOS deviceRuns on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)Up to 10 hours of operation with alkaline batteries (when using lavalier)

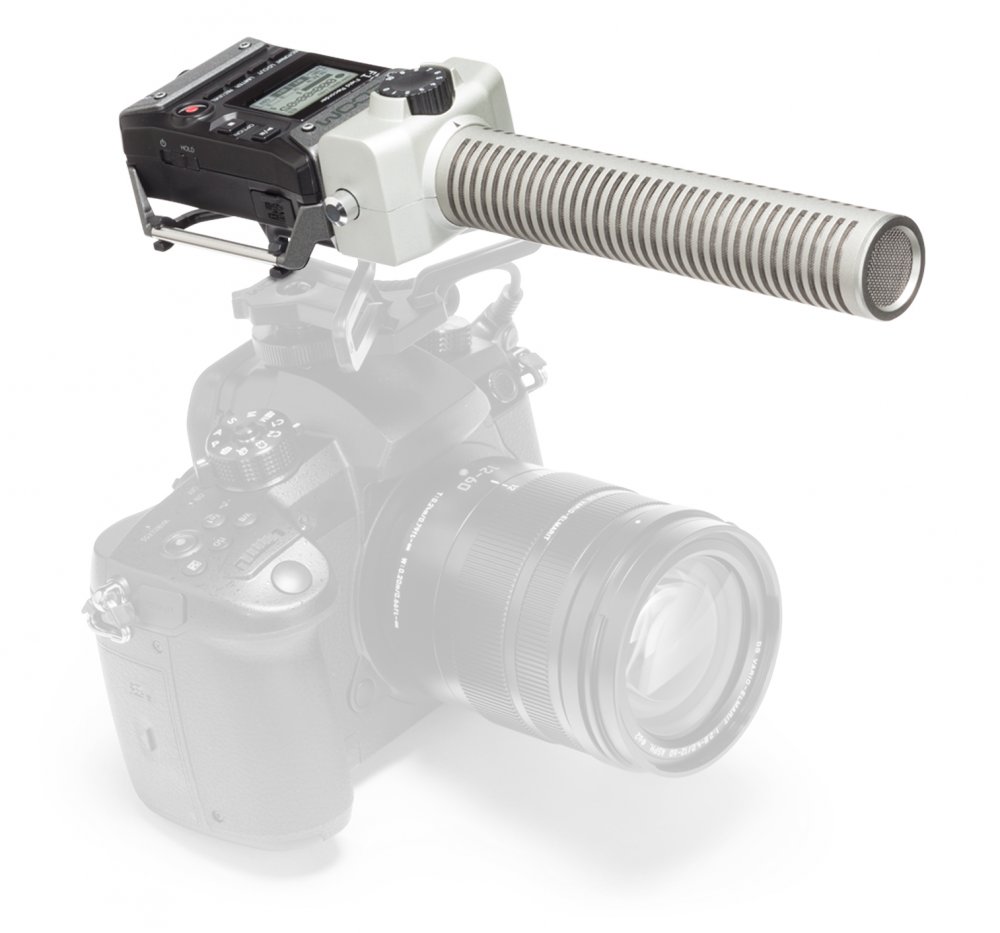

*Camera not included
Specifications
Recording media
microSD/microSDHC cards (Class 4 or higher, up to 32 GB)
Recording formats
WAV: 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/24-bitMP3: 48 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbpsMono/stereo ID3v1 tags supported
Display
1.25" monochrome LCD
INPUTS
Mic In: ZOOM mic capsule inputMono shotgun mic (SGH-6): Directionality: Super cardioid (3 directional mic units)Sensitivity: 39 dB/1 Pa at 1 kHzInput gain: - +50 dBMaximum sound pressure input: 122 dB SPL
MIC/LINE IN
Connector: 3.5 mm stereo mini (with screw lock)Supports plug-in power (2.5 V)Input gain: 12 dB - +36 dBInput impedance: 2 k or more
OUTPUTS
PHONE OUT
Connector: 3.5 mm stereo mini (with screw lock)Maximum output level: 11 mW + 11 mW (into 32 load)
microUSB
Mass storage operation: USB 2.0 High SpeedAudio interface operation: USB class compliant44.1kHz/16-bit, 48kHz/16-bit, 2-in/2-outTransfer method: asynchronous
Supported OS
Windows: Windows 7 / 8 / 8.1 / 10Mac: Mac OS X 10.10 / 10.11 / 10.12 / 10.13
POWER
2 AAA batteries (alkaline, NiMH or lithium)AC adapter (ZOOM AD-17): DC 5V/1A
Recording time using batteries
SGH-6 mono shotgun mic capsule (48 kHz/24-bit, mono)
Alkaline batteries: about 6.5 hoursNiMH batteries 750 mAh): about 6 hoursLithium batteries: about 11 hours
*The above values are approximate.

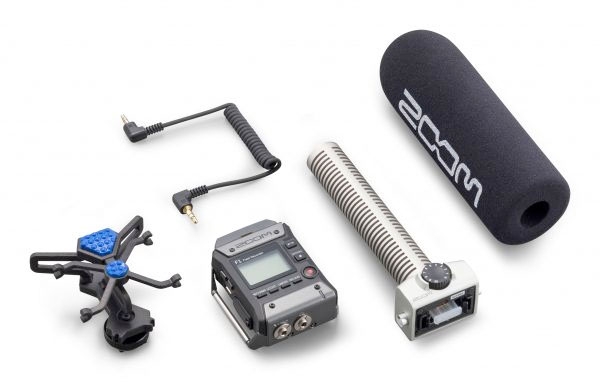

Here's what's included:
F1 Field RecorderSGH-6 Shotgun microphoneWSS-6 WindscreenSMC-1 Stereo mini cable for DSLRSMF-1 Shock mount2 AAA batteriesQuick guide
