The AE2300 cardioid mic features Audio-Technica's propriety double-dome diaphragm construction, giving it high-frequency and transient response that far exceeds typical dynamic mic
With a rugged, low-profile design and the ability to handle high SPLs, the AE2300 is a versatile performer, able to capture sound from guitar amps, brass and woodwinds, drums and percussion instruments with equal clarity and precision.
The double-dome diaphragm construction allows the AE2300 to maintain directionality across the entire frequency range, while introducing only the slightest off-axis coloration (frequency response is nearly identical at 0°, 90° and 180°) for excellent phase cohesion in multiple-mic setups. The microphone is also equipped with a switchable low-pass filter that cuts out harsh, high-frequency noise, such as hiss from a guitar amp or high-hat bleed into the snare, without negatively affecting the overall tone of an instrument - an especially useful tool in live settings to get a clear, focused sound.
Caractéristiques
Excels in high-SPL applications
Proprietary double-dome diaphragm construction that improves high-frequency and transient response
Maintains directionality across the entire frequency range
Minimal off-axis coloration (frequency response is nearly identical at 0°, 90°, and 180°) helps to maintain phase cohesion in multiple microphone setups
Switchable low-pass filter removes harsh, high-frequency hiss without negatively affecting the overall tone of an instrument
Low-profile design allows microphone to be placed easily and unobtrusively in a wide variety of setups
Rugged, brass metal construction ensures dependable performance in live music applications

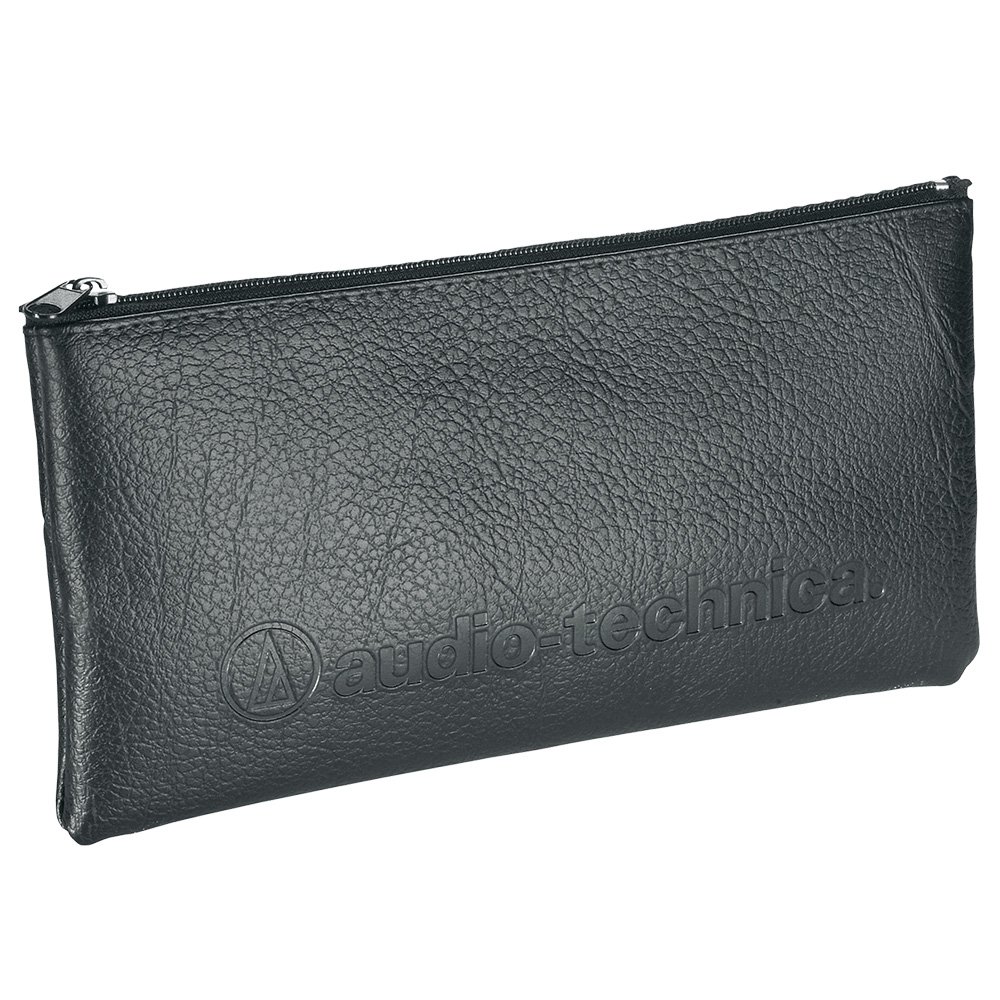

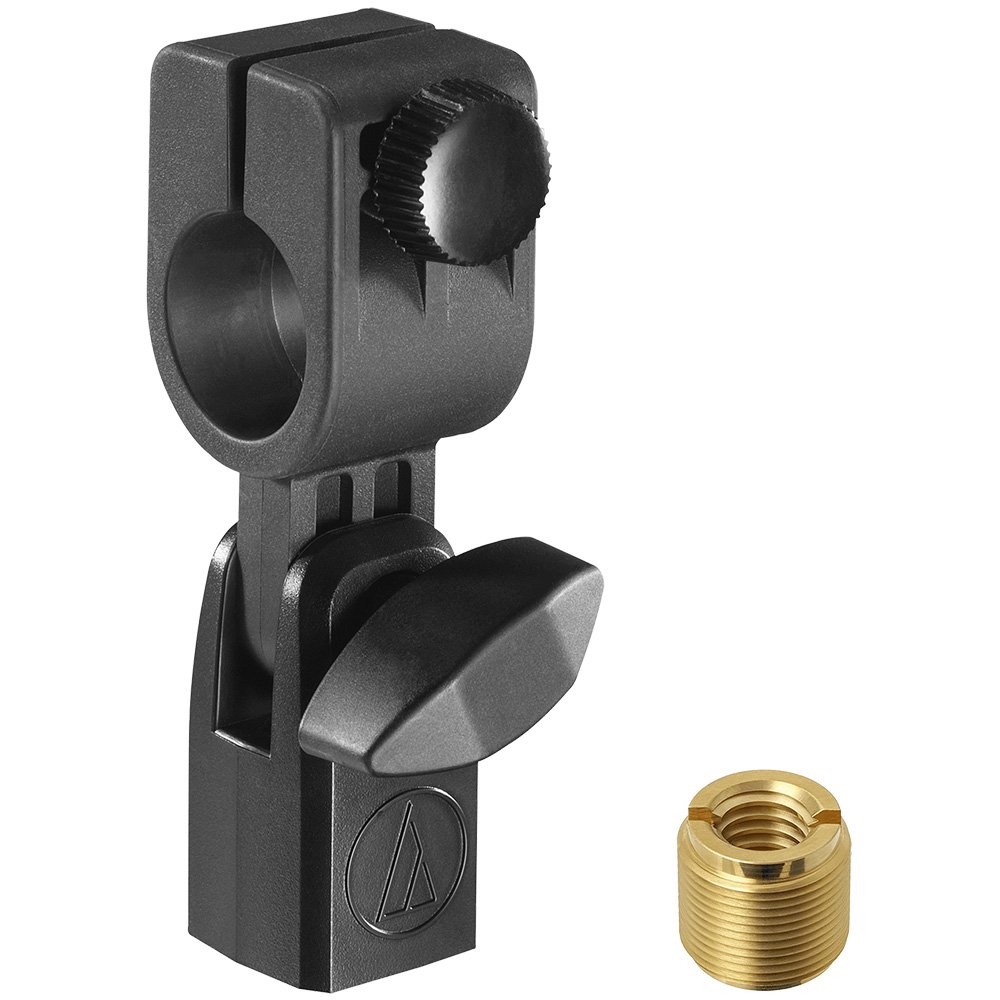

Includes AT8471 isolation stand clamp for 5/8"-27 threaded stands, 5/8"-27 to 3/8"-16 threaded adapter, and a soft protective pouch
Spécifications
Element : Dynamic
Polar Pattern : Cardioid
Frequency Response : 60 - 20,000 Hz
Open Circuit Sensitivity : -57 dB (1.4 mV) re 1V at pa
Impedance : 250 ohms
Weight : 138 g (4.9 oz)
Dimensions : 94 mm (3.7") long, 28.0 mm (1.1") maximum diameter
Output Connector : Integral 3-pin XLRM-type
Accessories Furnished : AT8471 isolation stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
