UPC/EAN #6971842184743     MPN #DTE0287D90

$349.00

Free shipping in Canada. Conditions

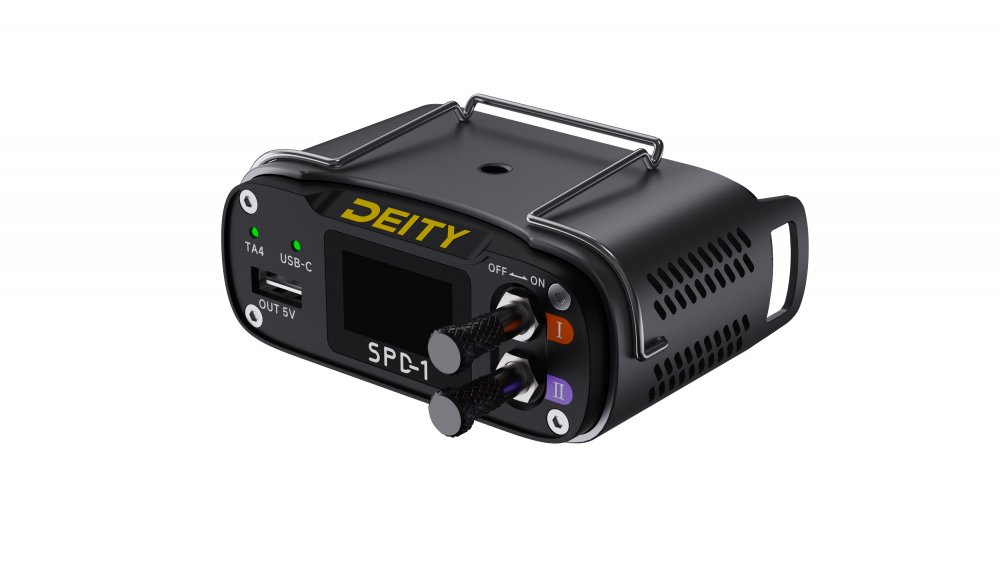

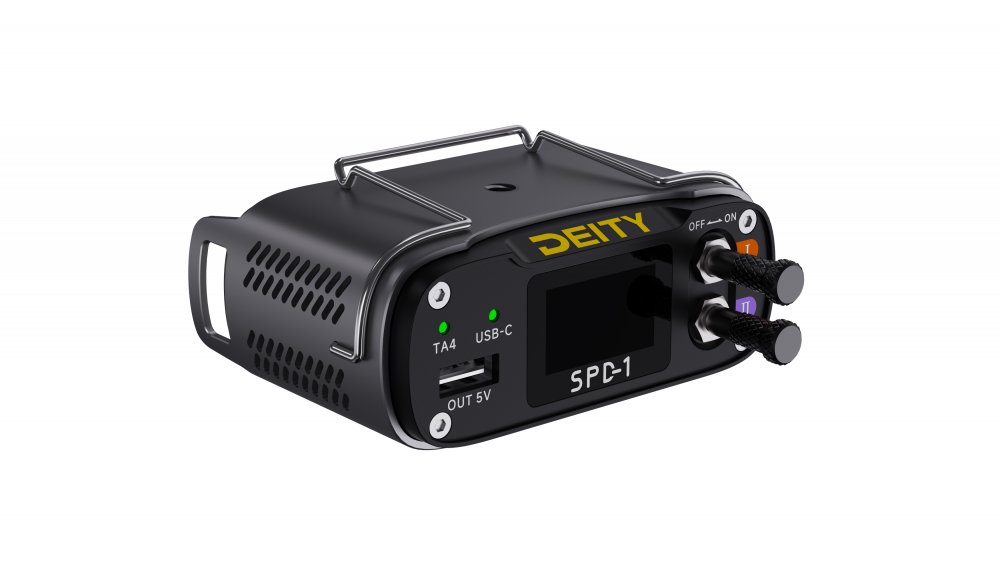

Smart power distributor with locking toggle switches, 1.1" colour screen, and reversible mounting clip



This powerful and versatile device is designed to make your life on set easy and stress-free.

The SPD-1 supports both smart and non-smart batteries with triple DC inputs and hot-swappable functionality. The device also displays battery telemetry data to keep track of your power usage. Monitoring power on set is crucial to keeping production running smoothly. With the SPD-1, you can easily keep track of your power usage, ensuring you never run out of power at the wrong time. This is especially important when stopping production or moving between locations.

The SPD-1's 1.1" color screen provides you with all the information you need, like total power consumption, battery temperatures, voltage, battery life, and battery cycle count. Locking toggle switches make it easy to turn your devices on and off, and this helps prevent losing power randomly.

The SPD-1 also features dual 1/4" threaded mounts, allowing you to mount the device in any position securely. The reversible mounting clip makes it easy to change the device's orientation as needed, and the operating range of 12V-18V ensures that it will work with a wide range of devices.

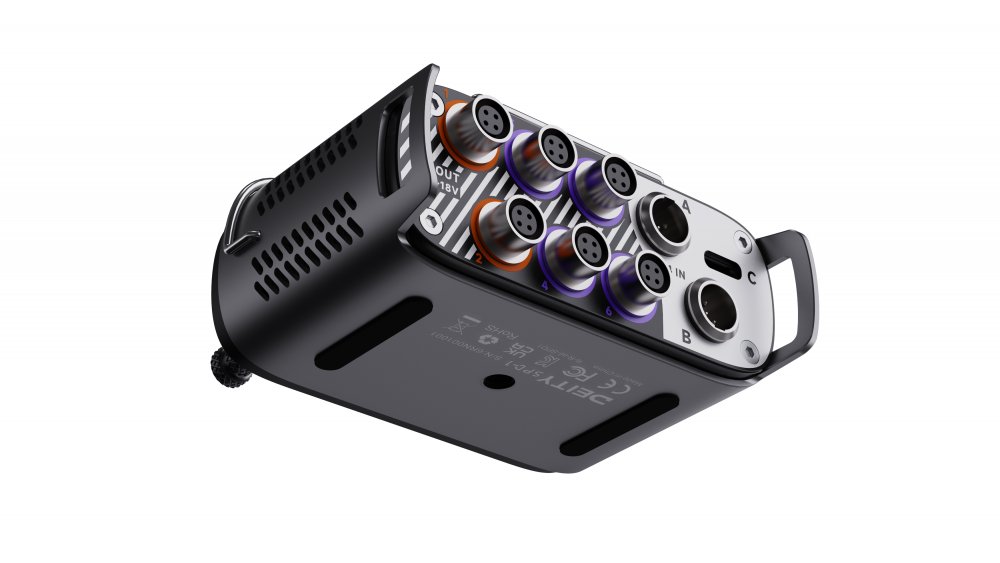

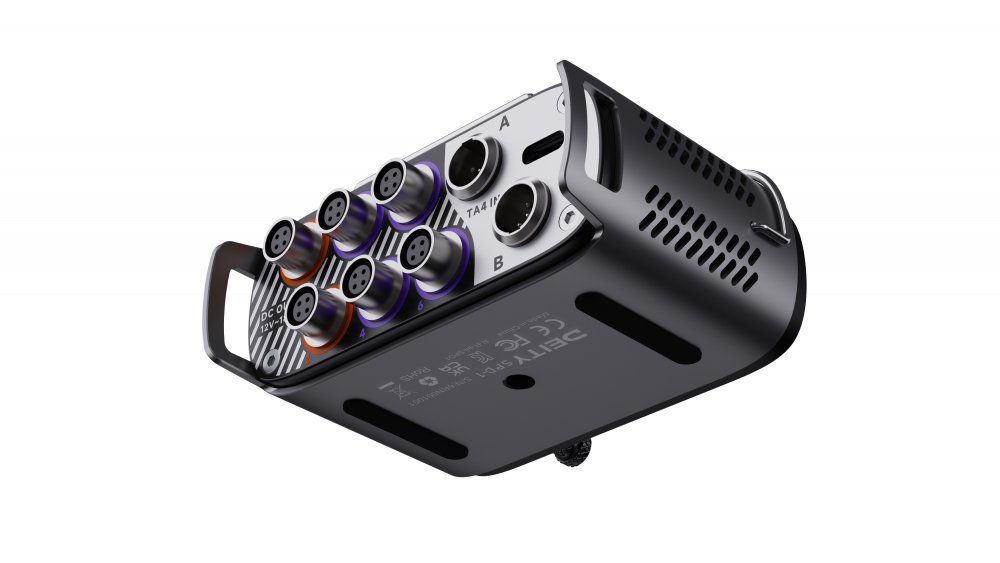

In addition, the SPD-1 features an easy-access front-facing 5V2A Type A USB port, making it simple to charge your devices and keep them powered up. And with six unregulated 4-Pin Push Power outputs (that are Hirose compatible), you can power multiple devices simultaneously. The six outputs are divided across two power circuit groups so you can toggle on and off auxiliary devices without needing to power down your primary devices.

The USB-C Input provides regulated 12V into your system from wall power. This is useful for when you are stationed in one place for a while and don't want to use batteries. Note that your USB-C power supply supports the 12V USB-C power standard and supplies enough watts. It is suggested to use a USB-C laptop-style power supply with the SPD-1.

If you're looking for a powerful and versatile power distribution box for your audio setup, the SPD-1 is a perfect choice. With its triple DC inputs, hot-swappable functionality, and a range of other features, it's designed to make your life on set as easy and stress-free as possible.
  • Displays Battery Telemetry Data
  • Measures Total Power Consumption
  • Locking Toggle Switches
  • 1.1" Color Screen
  • Reversible Mounting Clip
  • Suggested Operating Range 12V-18V
  • Power Type: DC

    Inputs: 2x TA4f
    1x USB-C 12V

    Outputs: 2x 4-Pin Push (5A Total)
    4x 4-Pin PUSH (5A Total)
    1x USB-A (5V2A)

    Operational Voltage Range: 12V~18V

    Low Voltage Warning: 9V~12V

    Over Voltage Cutoff: 24V

    Under Voltage Cutoff: 7V

    Built Material: Aluminum

    Display: 1.1" TFT Color Screen

    Mounting Options: 2x 1/4" 20 Threaded
    1x Removable Clip

    Dimensions: 36 * 89 * 64 mm
    1.4 * 3.5 * 2.5 inch

    Weight: 159g / 5.6oz

    The SPD-1 is compatible with the following:

    Sound Devices MX-HIROSE DC Input Sled
    Sound Devices 633, 664, 688
    Sound Devices A10-RX A-TA3 Adapter, A10-RX A-XLR
    Zaxcom Nova, Nova 2
    Zaxcom Deva 24
    Zoom F8, F8n, F8n Po
    Zoom F4
    Sound Devices A10-RX A-TA3 Adapter, A10-RX A-XLR
    Lectrosonics SREXT SR Mounting Kit, DSR4EXT, DCR822
    Wisycom MCR54 End Plate
    MiPro MR-90SC
    Sony UWP-D

    What's in the box:

    1x Deity SPD-1 Smart Power Distro
    1x SPD-T4BATT (TA4f to NH2054 Battery Cup)
    1x Warranty Card
    1x Deity Stickers
    1x QR Card for Digital Manual
