UPC/EAN #00745760375509     MPN #F-025

$1995.00

Financing available
Free shipping in Canada. Conditions

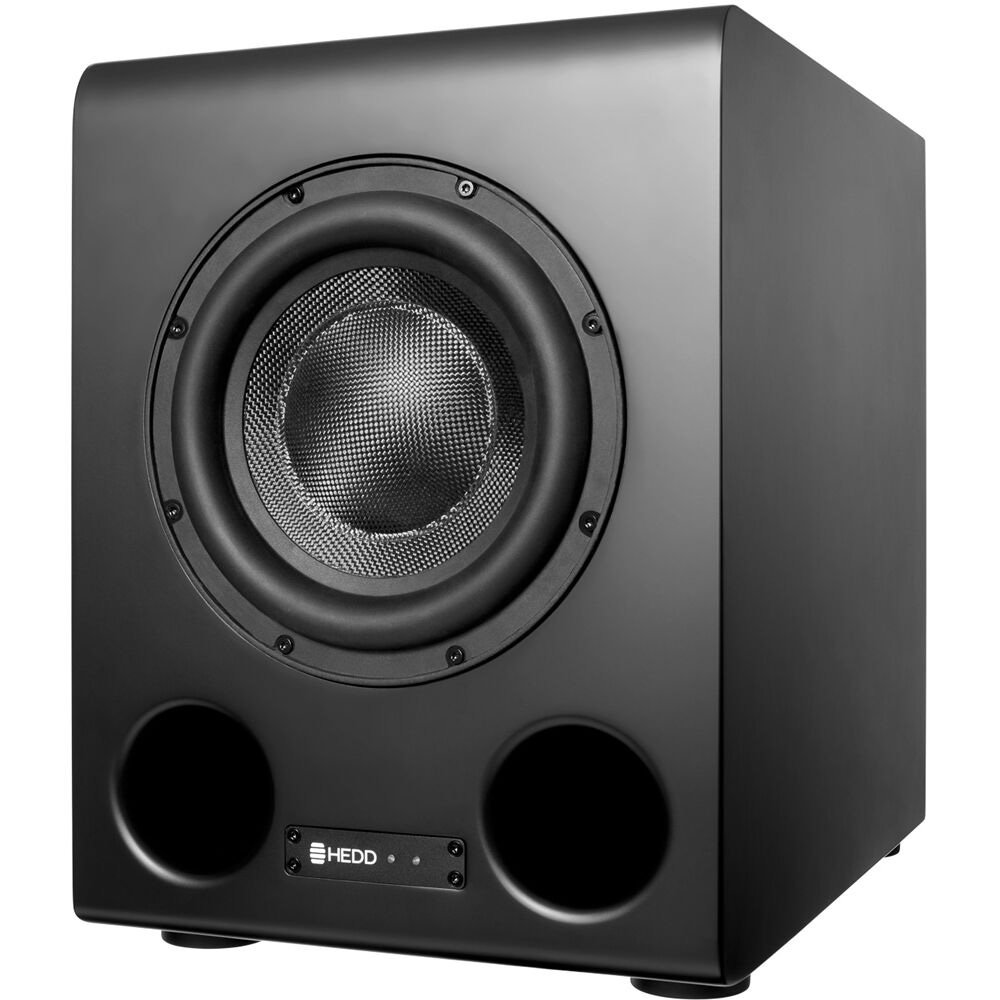

Active 8 inch subwoofer with 300W power and DSP, black



Compact wonder. Feel the depth and body.
Despite its compact size, don't underestimate its ability to deliver remarkable low-frequency performance that will redefine your music experience.

Designed to perfectly complement HEDD's 2-way monitors, this exceptional subwoofer effortlessly adapts to your home setup.

Prepare to be amazed as you feel the music like never before. Unlock the true potential of your favourite tracks.

Lineariser
HEDD Lineariser is an optional function that eliminates speaker-related time delays improving transient response and imaging precision. The phase correction can be synched with our BASS subwoofer range to compensate for group delay in a sat-sub system.

CoP: Closed or Ported
Emerging from extensive research into the HEDD Tower Mains System, the Closed or Ported functionality allows all HEDD MK2 monitors to switch between two designs with the flip of a switch and the use of a plug.

While Ported (open), the monitors can deliver the voluminous bass response with impressive sound extension you'd expect. Seal the bass ports with the plug and experience a new level of bass precision, texture details, and low-end harmonics.

Group Delay Compensation
To achieve true sound integration and system-wide phase linearity between the MK2 monitors and BASS subwoofers, we created a tool that compensates for the longer group delay of the subwoofers. This removes standard problems such as smeariness and disorientation that are often inherent in the use of traditional subwoofers.

Designed and made in Berlin
Heinz ElectroDynamic Designs (HEDD) is a German manufacturer of high-end studio loudspeakers and HEDDphones founded by Industry Legend Klaus Heinz and his son, Musicologist Dr. Frederik Knop.

Drawing on a rich history in audio creation and reproduction, the company designs and handcrafts its products in Berlin since 2016.
  • DSP and 300W ICE power amplification
  • Allows for complete linear phase Satellite-Subwoofer setup with MK2 monitors
  • Satellite OFFSET control for positioning compensation
  • X-over filters incl. Home Cinema adaptable Low Frequency Extension
  • LF mode to go down to 20Hz

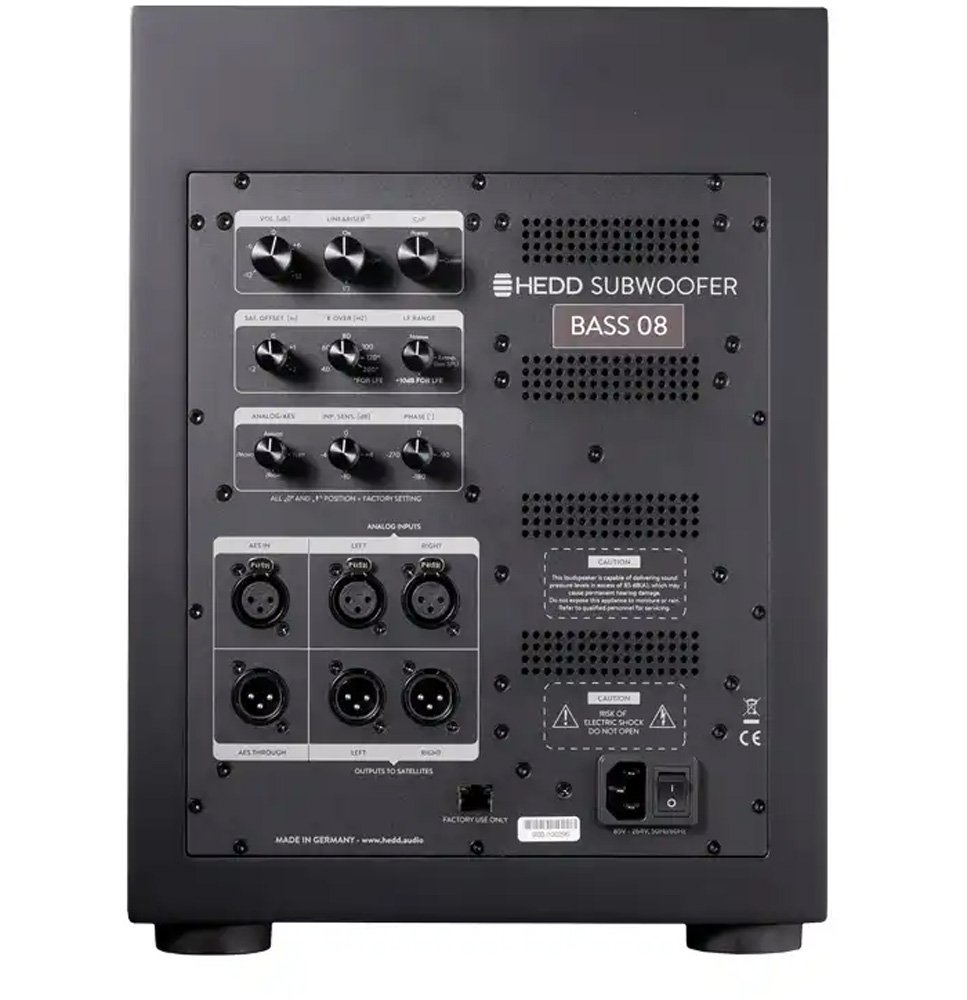

  • Analog and digital AES connections
  • Main Features
    HEDD Lineariser, CoP, GDC, LFE, var. phase and crossover

    DSP Integration
    Custom high-resolution 96 kHz / 32 Bit AD / DA converter

    Drivers
    8" Woofer (2" voice coil)

    Power
    300 W ICEpower amplification (85-264 V)

    Frequency Range
    24 Hz - 200 Hz (LFE: 19 Hz - 200 Hz)

    Maximum SPL
    105 dB SPL (sound pressure level) per unit at 1m

    Inputs
    Analog (XLR / 22 k?) and Digital 2ch (AES / XLR)

    Output
    Filtered Analog (XLR / 22 k?) and Digital AES pass-through

    Dimensions
    392 x 290 x 400 mm

    Weight
    17kg
