UPC/EAN #00745760375486     MPN #F-061

$3510.00

Financing available
Free shipping in Canada. Conditions

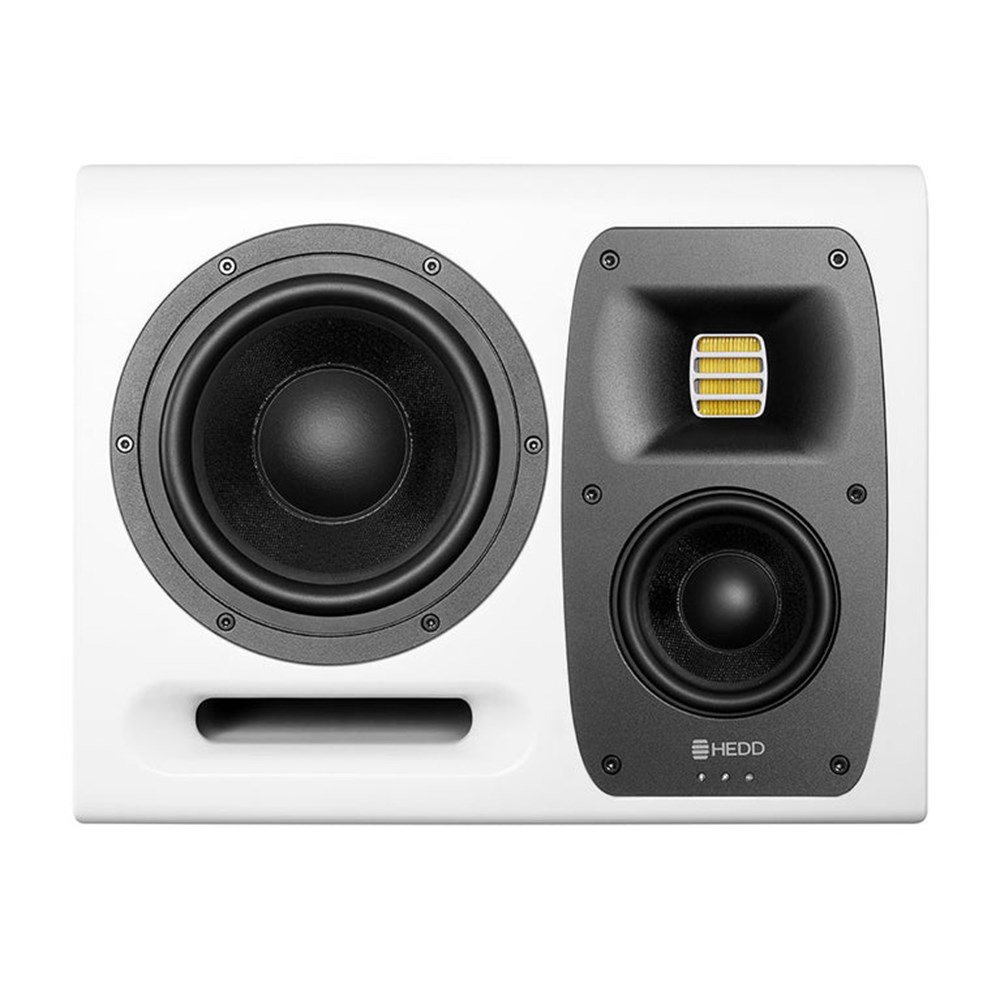

Three-way active studio monitor with 7 inch woofer, 4 inch midrange driver, 3x 300W power, and DSP, white



Boundless versatility. Sublime, compact powerhouse.
Combine openness, punch, a gloriously honest midrange clarity, and a jaw-dropping low end performance and you have the Type 20 monitor.

The perfect all-rounder. The perfect companion for every audio endeavor.

From producing bass-hungry beats to mastering the most sophisticated Jazz records: This 3-way monitor will unveil new layers in your music and transport your engineering skills to the next level.

Air Motion Transformer
Handmade in Berlin using high quality components, the HEDD Air Motion Transformer puts HEDD's expertise at your disposal to deliver impeccable transient response and ultra-high frequency extension. As a result, high frequencies remain transparent and linear and do not distort natural sound reproduction in any way.

Lineariser
HEDD Lineariser is an optional function that eliminates speaker-related time delays improving transient response and imaging precision. The phase correction can be synched with our BASS subwoofer range to compensate for group delay in a sat-sub system.

CoP: Closed or Ported
Emerging from extensive research into the HEDD Tower Mains System, the Closed or Ported functionality allows all HEDD MK2 monitors to switch between two designs with the flip of a switch and the use of a plug.

While Ported (open), the monitors can deliver the voluminous bass response with impressive sound extension you'd expect. Seal the bass ports with the plug and experience a new level of bass precision, texture details, and low-end harmonics.

Designed and made in Berlin
Heinz ElectroDynamic Designs (HEDD) is a German manufacturer of high-end studio loudspeakers and HEDDphones founded by Industry Legend Klaus Heinz and his son, Musicologist Dr. Frederik Knop.

Drawing on a rich history in audio creation and reproduction, the company designs and handcrafts its products in Berlin since 2016.
  • 7" woofer
  • Dedicated 4" midrange driver
  • High definition HEDD Air Motion Transformer
  • Powerful SHARC-DSP and onboard LineariserR flatten speaker phase and create fascinating stereo image and depth
  • Closed or Ported functionality for two distinct sound experiences: accurate and detailed (closed) or energetic and bassy (ported)
  • Complete linear phase Satellite-Subwoofer setup with BASS 12 subwoofers
  • Desktop and shelving filters
  • Bass-extension mode
  • Stepped aluminum pot controls
  • Main Features
    HEDD Lineariser, CoP, GDC, LFE, Desk and Shelf Filters

    Dimensions
    280 x 358 x 338 mm

    Weight
    15.4 kg per unit

    DSP Integration
    Custom high-resolution 96 kHz / 32 Bit AD / DA converter

    Drivers
    3-Way: Proprietary 7" and 4" Honeycomb Woofers, HEDD AMT Tweeter

    Power
    3x300 W ICEpower amplification (85-264 V)

    Crossovers
    250 Hz / 3.200 Hz

    Frequency Range
    32 Hz - 40 kHz (LFE: 26 Hz - 40 kHz)

    Maximum SPL
    SPL 120 dB SPL (sound pressure level) per pair at 1m

    Inputs
    Analog (XLR / 22 k?) and Digital 2ch (AES / XLR)

    Output
    Digital AES pass-through via XLR
