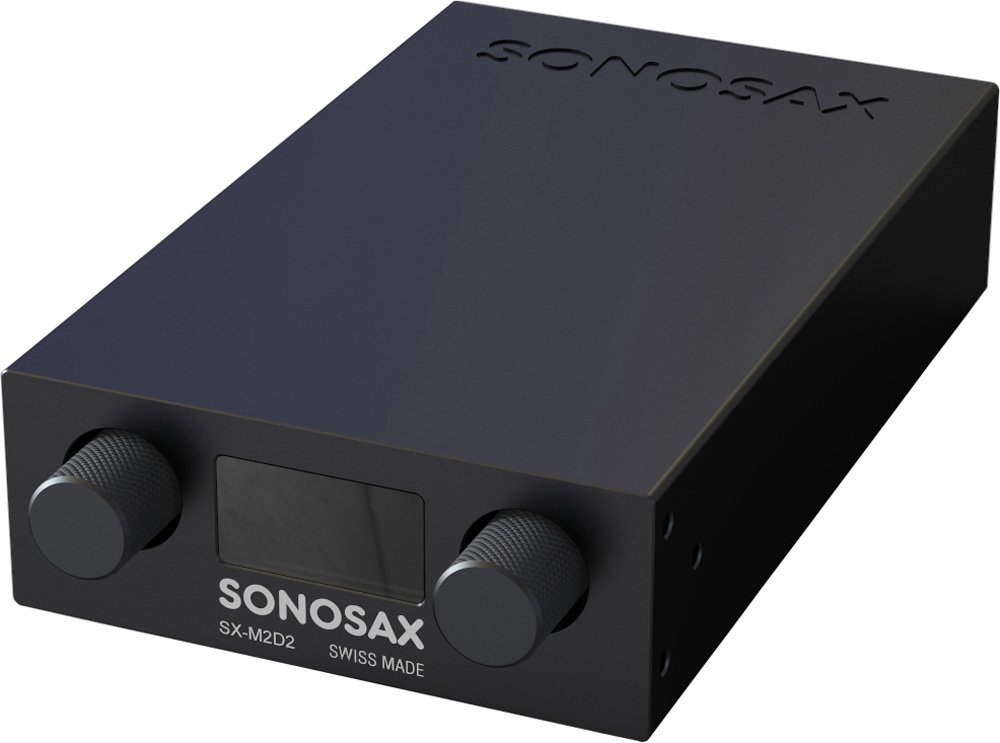

Ultra portable dual domain preamplifier - USB Sound Card



The SX-M2D2 is all at once:
  • A very high quality stereo preamplifier
  • An analog-to-digital and digital-to-analog converter
  • A headphone and monitoring amplifier
  • A USB sound card compatible with any type of computer or smartphone
  • An audio mixer with an integrated full featured compressor-limiter.

  • An embedded digital matrix allows any input to be routed to any output or to an internal stereo mixer. The fully digital controls allow menu access to all features with only two rotary encoders. A high-brightness graphic display shows the available options and settings as well as four modulometers assignable in pairs to any signal source. The power supply from a standard battery, recharged in the device, guarantees hours of autonomy, even if the two power sources available to the SX-M2D2 are unplugged.

    The possibilities of implementation are endless:
  • As a complement to a TV cinema recording equipment or as a small stand-alone mixer.
  • As an AD converter preamplifier for a boom operator, with the possibility of mixing talkback with local monitoring
  • For a radio journalist who will be able to record and monitor 2 mics interviews on his smartphone.
  • For the musician or podcast creator who wants to benefit from very high quality inputs and outputs on his computer (PC or Apple-Mac) or smartphone (iOs or Android).
  • For the audiophile who will benefit from a DA converter coupled with an exceptional headphone amplifier.
  • Two mic/line analog inputs with 135dB dynamic range
  • Independent line and phones outputs
  • AES42/AES3 input, AES3 output
  • Two channels in/out USB audio 2.0
  • Powered by removable Li-ion battery, Hirose or USB with intelligent energy management
  • Inputs / Outputs
    2x mic/line inputs on TA3, electronically balanced, with phase reversal, 48V phantom, LF cut and level control
    1x AES3/AES42 on TA3, transformer balanced input with phase reversal and level control
    1x line output on TA3, 2 channels analog unbalanced
    1x AES3 output on TA3, 2 channels transformer balanced with ASRC (48/96/192k)
    1x USB audio 2 channels input/output on micro USB type C connector
    independent line/headphones stereo output on mini-jack

    Performance
    135 dB (A-weighted) overall dynamic range
    THD < 0.001%
    90 kHz overall frequency response @192kHz
    24-bit 48/96/192kHz

    Powering
    external DC 9-18V on Hirose 4-pin
    external DC 5V on micro USB

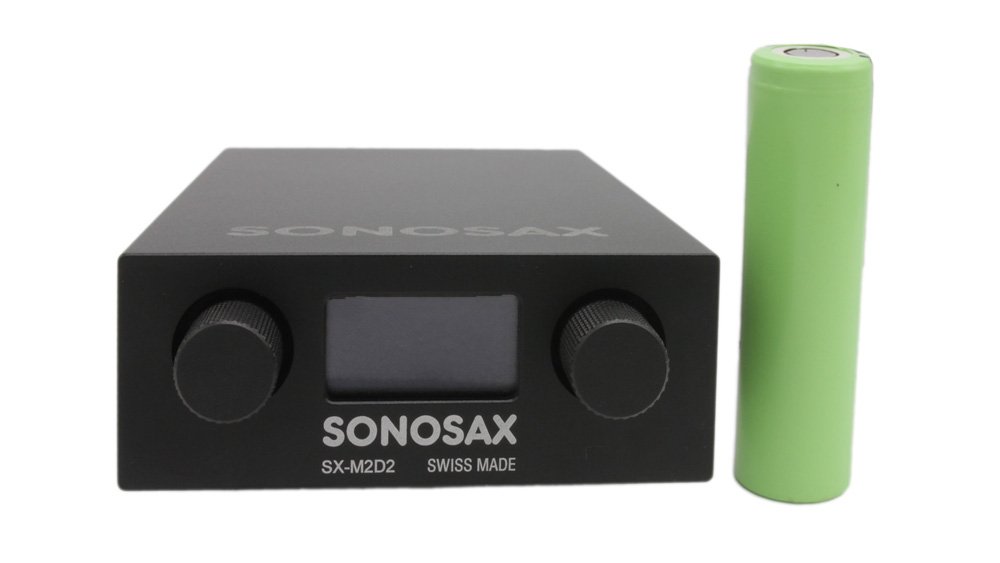

    removable 18650 lithium-ion battery cell, charged with external DC input
    intelligent energy management
    About 4.5 hours run-time with a full charged 11.5Wh battery and two Schoeps 48V microphones

    The battery must be present in the device to ensure that all functions are always available.
    The SX-M2D2 can be powered without a battery for a few moments when replacing a discharged battery with a charged one.

    User Interface
    128-64 monochrome OLED display
    two rotary encoders for gain control
    2 or 4 channels peak meters
    intuitive menu navigation

    Mechanical
    Machined aluminum housing
    overall dimension: 74 x 28 x 130 mm (2.9'' x 1.1'' x 5.1'')
    weight 336g (0.74lbs) with battery
    mounting holes on both sides
