MPN #044200
Free shipping in Canada. Conditions

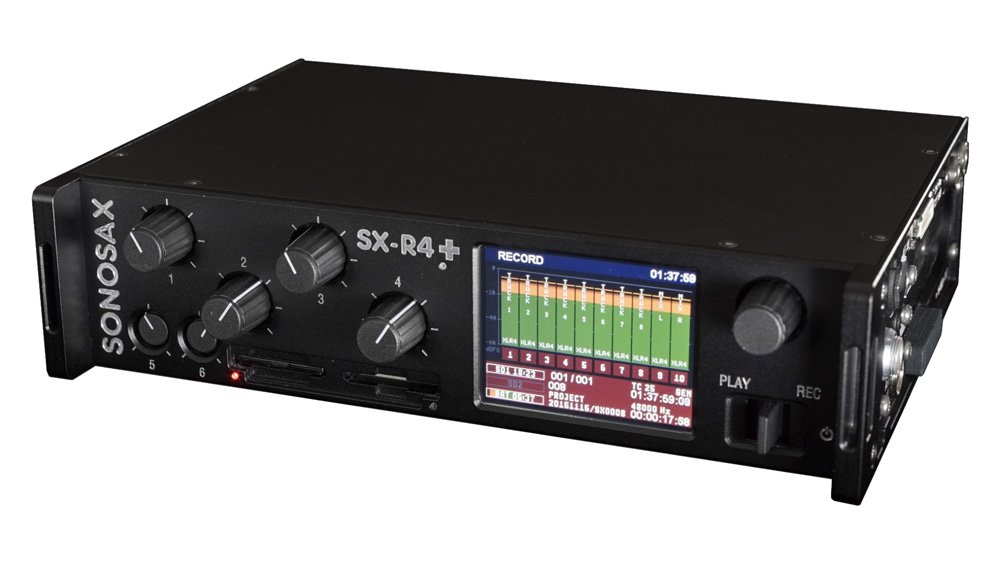

16 Track Digital Audio Recorder on dual SD Card



Inputs / Outputs

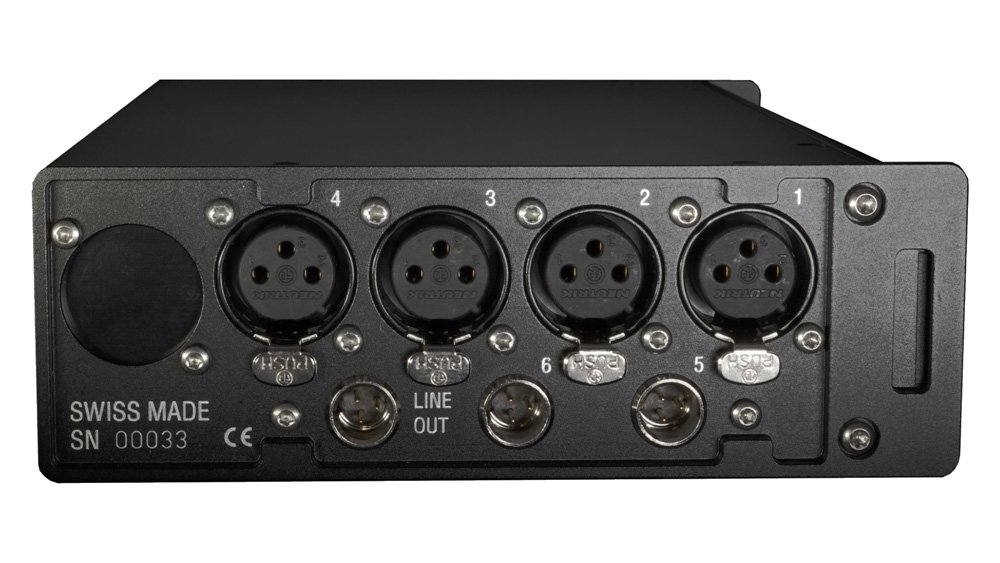

4x XLR-3F inputs, individually configurable as:
  • ANALOG: mic/line levels, electronically balanced, with phase reversal, 48V phantom, LF cut and level control on the front panel
  • DIGITAL: transformer balanced AES3 or AES42 with ASRC, phase reversal, LF cut and level control on the front panel
  • 2x Line inputs, electronically balanced on TA-3 with level control on the front panel
    4x AES3 balanced inputs on multi-pin connector
    1x AES3 balanced input with ASRC on TA-3 connector (shared with AES3 output)
    2x analog unbalanced line outputs on TA-3
    1x AES3 balanced output (user independent sampling frequency) on TA-3 connector (shared with AES3 input)
    Up to 12x Mic inputs when connected to the SONOSAX AD8+
    Optional audio over IP on RJ45 connector, such as AVB and Dante (Not Included)

    Performance
    135 dB (A-weighted) overall dynamic range from analog input to recorded file (114 dB (A-weighted) dynamic range with USA version)
    90kHz overall frequency response @192 kHz recording
    40 bits processing

    Recording capabilities
    up to 16 tracks recording on 2x SD cards (SDHC, SDXC)
    uncompressed BWF with iXML metadata
    44,1 up to 192 kHz @ 24bits, Pull up/down 0.1% for NTSC world

    User Interface
    Touch screen 2.4" TFT color display

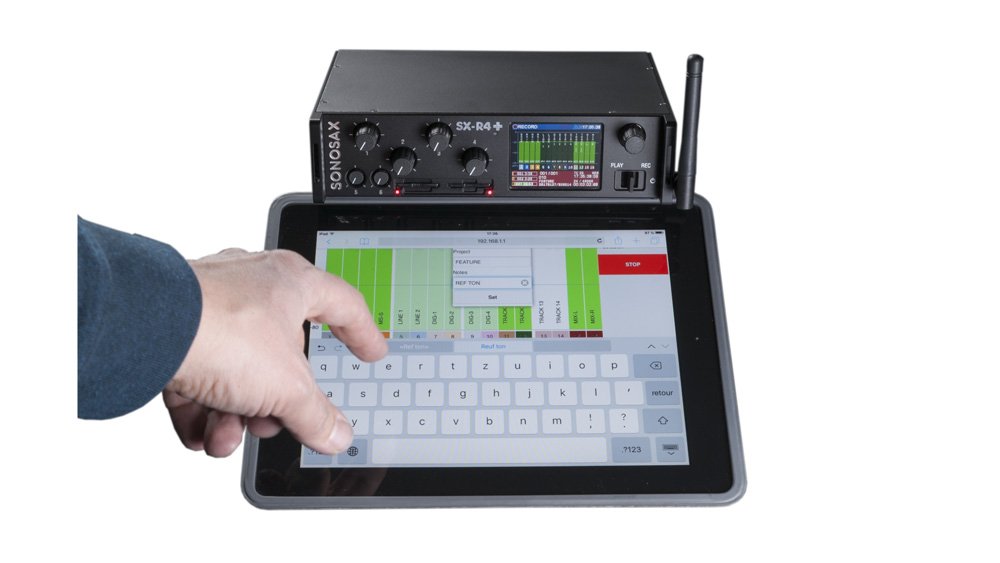

    WiFi dynamic web-app interface

    Powering
    Removable 14.4V 48Wh Lithium battery, SMBUS capable

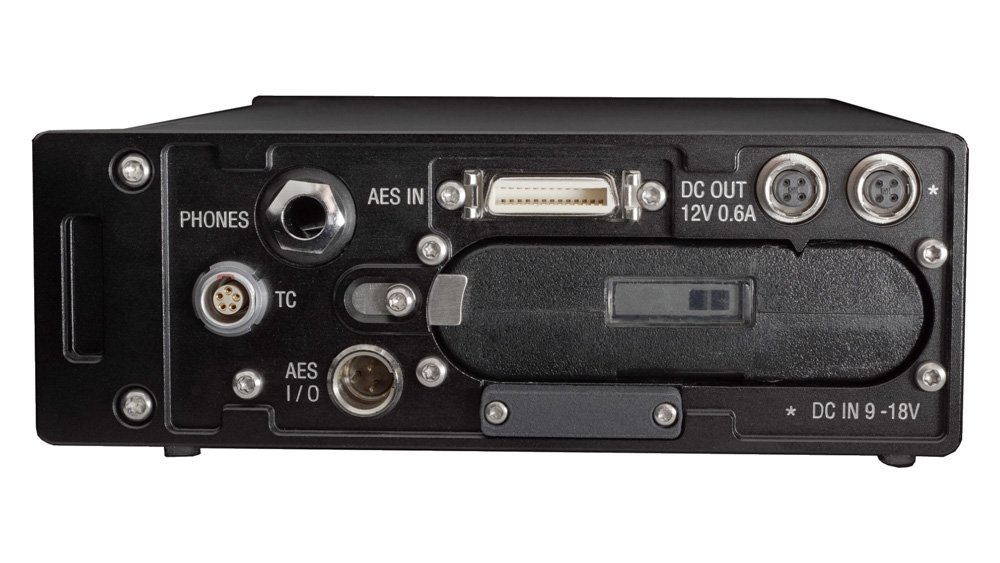

    External DC 9..18V on 4-pin Hirose, SMBUS capable, electrically isolated
    12V regulated decoupled DC output to power peripherals equipment up to 7W
    Intelligent energy management with detailed on-screen information

    Timecode
    Accuracy: 0.5 ppm
    Independent in/out on Lemo connector
    23.976, 24, 25, 29.97DF, 29.97ND, 30DF, 30ND

    Mechanical
    Machined aluminum housing
    Overall dimension: 200 x 50 x 144.5 mm (7.87" x 1.96" x 5.7")
    Weight: 960g / 2.1lbs without battery, 1.2kg / 2.64lbs with 48Wh battery
