The ADAM Sub10 MK2 delivers stunning bass performance. ADAM subwoofers achieve absolute accuracy and an authentic natural sound in the process of music reproduction.
This means combining exceptional bass power with precision and clarity in every subwoofer. These elements are the perfect partners to complement the highly acclaimed clarity and transparency of ADAM monitors in the lower and lowest frequencies. All subwoofers feature both balanced (XLR) and unbalanced (RCA) input/output connectors and comprehensive control options that allow for adapting to different room acoustics and requirements.

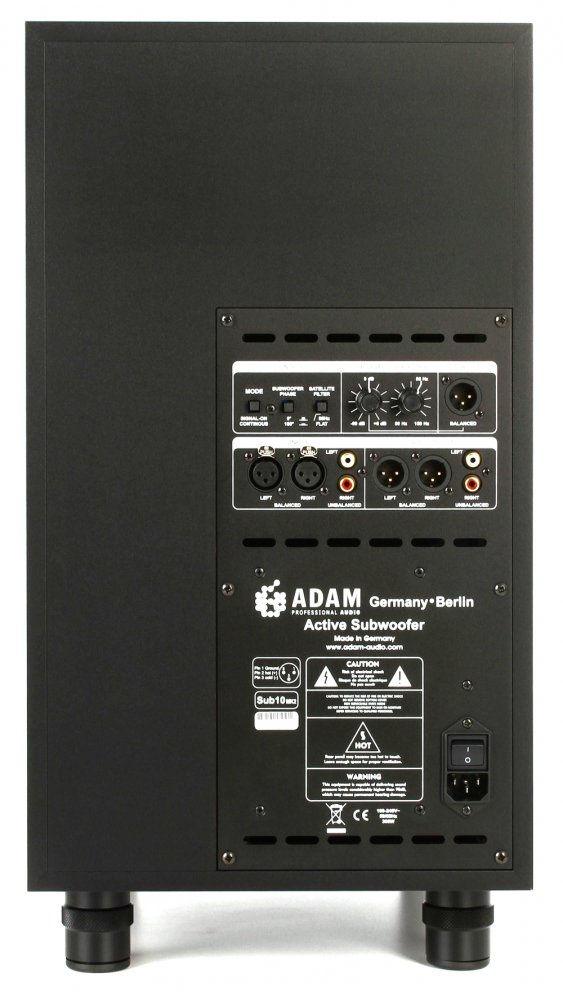

Panel / Controls
All subwoofers feature a level control (-60dB to +6dB), phase switch (180°) and a variable upper frequency control (50-150Hz). For the satellite outputs, an 85Hz high pass filter can be switched in to block frequencies below 85Hz so satellite speakers can meet the Dolby® recommendations for theater sound and also to relieve the satellites from the lower frequencies. In addition, you can either switch on/off the subwoofer manually or use the option of automatically powering up the subwoofer whenever it receives a signal (signal-on/ continuous').

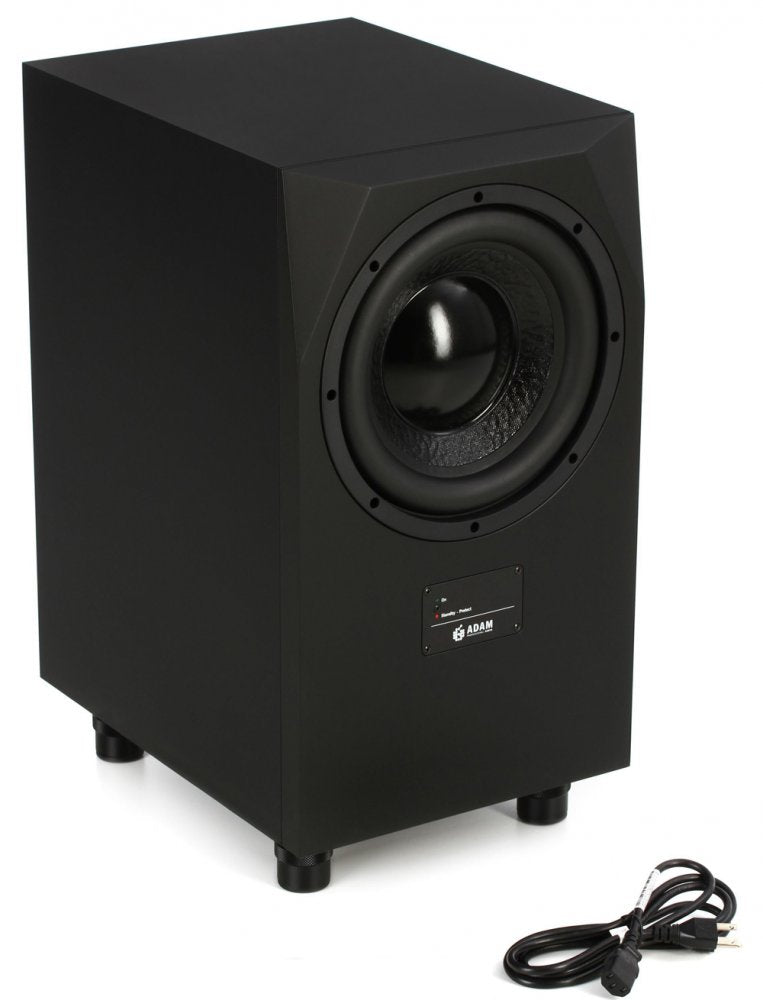

The Sub10 Mk2 is a powerful subwoofer designed to extend the low frequency capabilities of any near or midfield monitoring system down to 25Hz.
A sturdy special woofer with extended cone travel and a heavy-duty coil have been optimized for accurate reproduction from a bass reflex enclosure. The down-firing bass reflex tube avoids intrusive ventilation noise because of its generous size and shape. The PWM amplifier produces over 90% efficiency and can handle critical passages without overheating for long periods of time.
An additional output allows you to cascade as many subwoofers as needed.
The Sub10 Mk2 subwoofer provides a precise combination of low cutoff frequency (-3 dB at 25Hz) and an undistorted high sound pressure level (113dB at 1m).
Basket Ø: 10" (260 mm)
Voice coil Ø: 2" (50 mm)
Cone material: Paper Built-in Amplifiers
Amp. power RMS / music: 200 W / 300 W Input connectors
Analog: XLR / RCA General data
Frequency response: 25 Hz - 150 Hz
THD > 60 Hz: 1 %
Peak SPL max at 1m: 113 dB
Crossover frequencies: 50 - 150 Hz
Input impedance: 10 KOhm
Weight: 46.3 lb (21 kg)
Height x Width x Depth: 22" (560 mm) x 12" (300 mm) x 15.5" (400 mm) Delivery contents
Power cord, Manual
