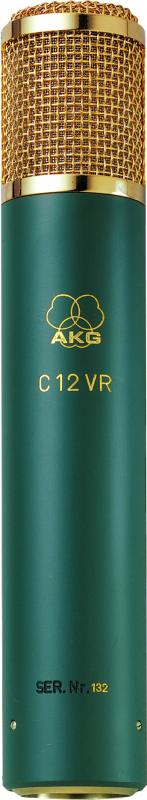

The AKG C 12 VR is an replica of the original C 12, from the cap-sule sound to the original 6072A vacuum tube.
The only difference the AKG C 12 VR and the AKG C 12 is that its self noise and some components were optimized to meet the current state of the art. No less than nine remotely selectable polar patterns, the legendary large-diaphragm capsule, and an original 6072A vacuum tube provide a sound that is simply beyond words.
The AKG C 12 VR comes complete with an aluminum carrying case, power supply, cable, windscreen, and spider type shock mount.
Caractéristiques
Recreates the legendary C 12 tube microphone
Nine remotely selectable polar patterns from omnidirectional to figure-eight
Complete with many useful acces-sories and aluminum carrying case
Spécifications
Polar pattern
cardioid, omnidirectional, figure-eight, and 6 intermediate positions, remotely selectable Frequency range
30 to 20,000 Hz Sensitivity
10 mV/Pa (-40 dBV); 10-dB increase selectable by internal switch Max. SPL
128/138/148 db (k=3%) Equivalent noise level (CCIR 468-3)
32 db Equivalent noise level
22 dB-A Signal/noise ratio (A-weighted)
72 dB Preattenuation pad
10 dB, 20 dB, selectable Bass filter
6 dB/octave at 100 Hz,
12 dB/octave at 130 Hz Impedance
200 Ohm Recommended load impedance
>1000 ohms Supply voltage
from supplied N 12 VR power supply Current consumption
from supplied N 12 VR Connector
12-pin DIN Cable
10 m (33 ft.) Finish
green/gold Dimensions
42 dia. x 225 mm / 1.7 dia. x 8.9 in. Net weight
680 g / 24 oz. Shipping weight
4.5 kg / 9.9 lbs. Patent(s)
Electrostatic transducer (Patent no. AT 395.225, DE 4.103.784, JP 2.815.488)
Acoustic resistor (Patent no. AT 400.910)
