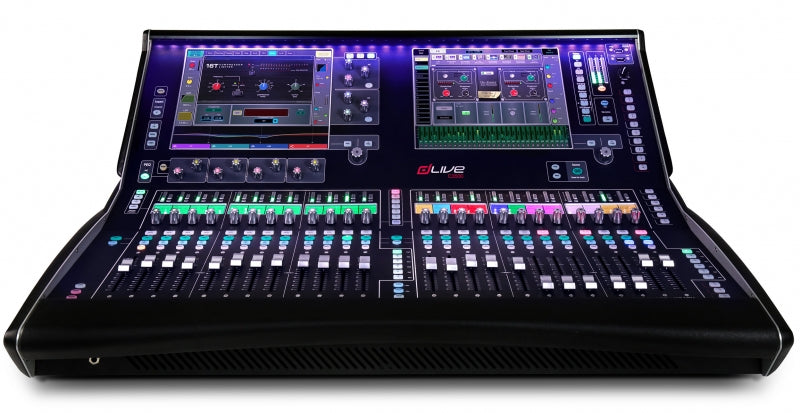

The Allen & Heat C3500 is the largest C Class control Surface for the dLive MixRack
It features 24 faders over 6 layers, built-in audio I/O and networking port, dual 12 capacitive touchscreens and the innovative Harmony UI for the fastest workflow in the industry.
The dLive C Class makes the full power and flexibility of dLive available in an accessible, compact format, making it ideal for corporate AV, houses of worship, regional rental companies and theatres.
Caractéristiques
24 faders
Fully assignable layout - 144 fader strips
Harmony UI integrates screen and wrap-around controls
- Dual 12" capacitive touchscreens
- Gesture control - pinch, swipe, drag 'n drop
- Dedicated multi-mode EQ view
- Configurable widget areas for Scenes, meters, FX and more
- 3 pages of 6 assignable rotaries
19 assignable SoftKeys
Engineer's Wedge and IEM fader strips
Comprehensive multipoint metering
Daylight visibility
USB stereo recording and playback

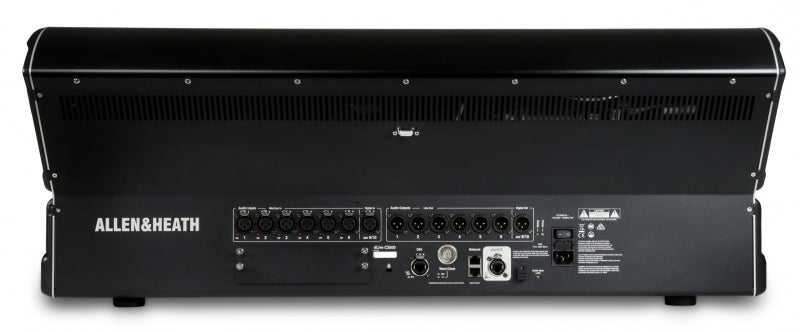

6 XLR mic/line in, 6 XLR line out
1 digital st AES3 in, 1 digital st AES3 out
Connection hub
- GigaACE gigabit link to MixRack
- DX link for I/O expansion
- I/O Port - 128 ch 96 kHz
- 2x Network ports
- Wordclock BNC I/O
- Video output
