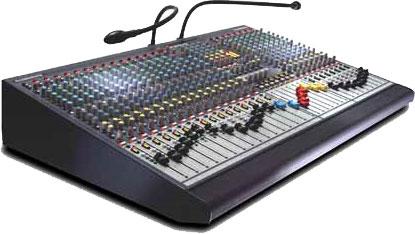

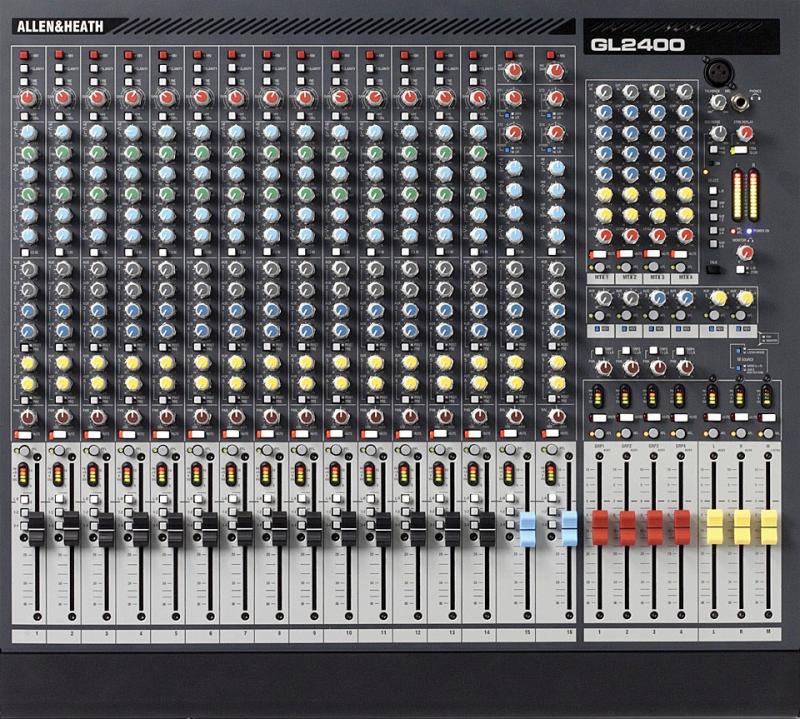

The Allen & Heath GL2400-416 is a 16 channel Dual-Function Function Live Sound Mixer. This mixer is designed for professional applications.
Whether mixing FOH, monitors, or both, recording live or in the studio, installed in a busy or house of worship, out on the road touring or earning its keep in rental stock, the GL2400 provides the perfect solution.
Engineered for modern engineering techniques, every detail in this mixer has been carefully thought out to provide the very best mixing experience. For example, the mono output can be configured as LR sum, wedge, or aux-fed sub or centre master. In Monitor mode, all six auxes are available on faders with mutes, inserts, meters and XLR drive. The new 7x4 matrix with ambient mic capability opens up a huge number of mixing applications, including stereo recording, zone feeds, delay fill speakers and stereo in-ear monitor mixes.
We have worked hard at the design of the audio circuitry in this mixer, and with its amazing headroom and new ultra-quiet mix head amp, we believe that this is our best performance yet!
Features
16 channel frames
LR and M main outputs
4 Audio groups with pan control
6 Auxiliary sends with per-channel pre/post fader switching
2 stereo channels each with mic and dual stereo line inputs
7x4 Matrix
Proper dual functionality for FOH and/or Monitor mixing
M can be configured as LR sum, Wedge, or Aux-Fed Sub or C master
Recording capable with channel direct outputs
Matrix external inputs with level trims and common input capability
Stereo channel line inputs can be independently routed to LR
Stereo channel mic input breakpoints for cross patching into matrix
Responsive 4 band, 2 sweep EQ
100Hz channel high pass filters
Individual phantom power and Polarity switching
Dedicated Channel, Master and stereo Monitor meters
Internal jumper plugs for pre/post-EQ aux, direct out and other options
Mutes, meters and AFL on all fader masters
Assignable talkback
1kHz oscillator and pink noise generator
2-track monitoring and replay to LR
Headphones and local monitor outputs
Electronically balanced XLR outputs with +26dBu drive capability
Preamp +34dBu maximum input capability for mic or line
Ultra low noise mix head amp design
Internal power supply with MPS12 backup supply input (16 to 32 models)
External RPS11 power supply and socket for backup supply (40 model)
100mm dust protected faders
Metal jacks, gold-plated XLRs, sealed pots and switches
