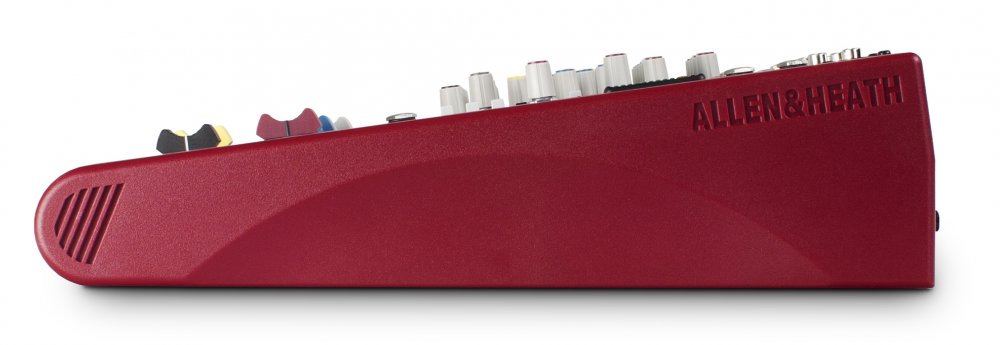

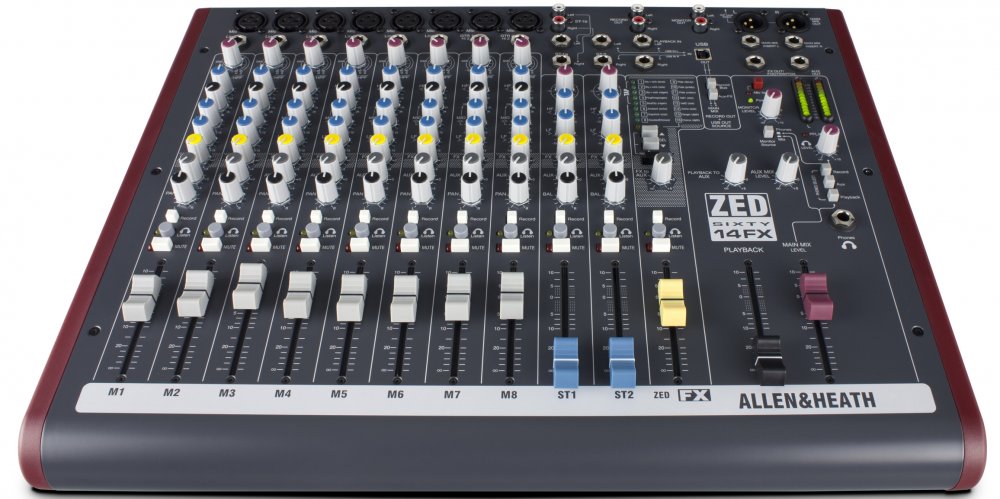

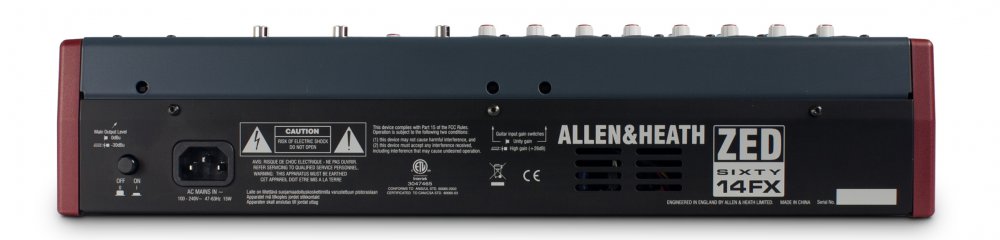

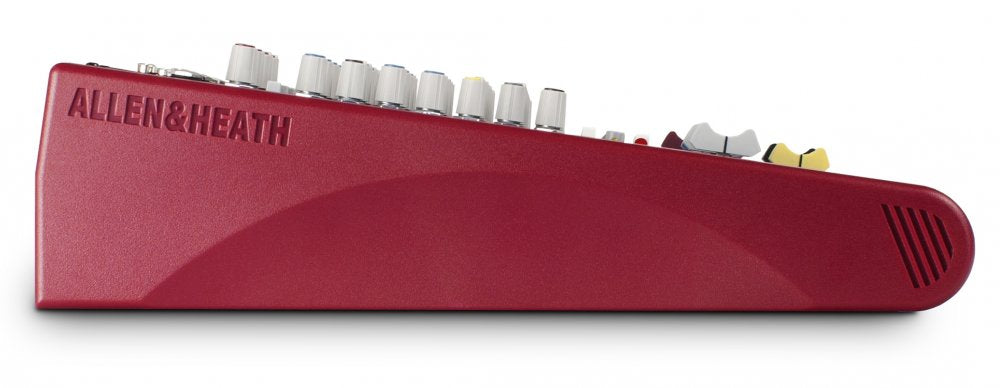

Allen & Heath ZED60-14FX

MPN #ZED60-14FX

$829.00

Save 10.6%, MSRP $927.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

8 mic/line inputs, 2 stereo TRS, 1 stereo RCA, onboard FX, 2 Hi-Z guitar inputs, USB audio I/O, 3-band EQ with sweep mid, XLR outs, 60mm faders

The Allen & Heath ZED60-14FX is a versatile, small-format analogue mixer built for musicians, performers, and venues seeking a robust yet compact solution for live sound and recording. With eight mic/line inputs and a 2-in/2-out USB audio interface, it effortlessly bridges the gap between stage and studio. Ideal for small bands or solo performers, the ZED60-14FX offers a rich feature set including two high-impedance (Hi-Z) inputs designed specifically for guitars, allowing direct connection without DI boxes.

Engineered with premium 60mm faders and Allen & Heath's signature MusiQ EQ, it provides hands-on, responsive control and tonal shaping. A standout feature is the integrated effects engine, delivering 16 professional-grade FX presets like reverb, delay, and modulation to enhance any live mix. With multiple stereo input options (TRS and RCA), XLR main outputs with insert points, and a rugged build quality, the ZED60-14FX is a reliable workhorse that adapts easily to a wide range of live and recording environments.

Features

8 Mic/Line Channels: Includes both XLR and TRS jack inputs for microphones and line-level sources.

2 Hi-Z Guitar Inputs: Plug guitars directly into the mixer without needing a DI box-ideal for live setups.

Onboard Digital Effects: Built-in FX section with 16 high-quality reverb, delay, and modulation effects for enhancing vocals or instruments.

USB Audio Interface (2 In / 2 Out): Easily connect to a computer for stereo recording or playback.

Flexible Stereo Inputs: Two stereo channels with TRS jacks and one additional stereo input via RCA connectors.

3-Band MusiQ EQ: Specially tuned EQ with sweepable mids for easy and musical sound shaping.

XLR Main Outputs with Inserts: Balanced outputs for connecting to PA systems or audio interfaces, with insert points for external processing.

Premium 60mm Faders: Smooth, precise control over all input channels for a traditional mixing feel.

Compact and Portable: Designed for small bands, solo artists, and live or home recording environments.

Specifications

General Specifications

model: ZED60 14FX

analog live and recording mixer

small format desktop design

60mm professional quality faders on all channels

2 in / 2 out USB audio interface

16 built-in digital FX presets (reverb, delay, modulation)

illuminated PFL indicators

12 bar LED metering

Input Channels

8 mono mic/line inputs with XLR and TRS jack sockets

2 stereo line inputs via TRS jack sockets

1 stereo input via RCA

2 high impedance guitar DI inputs with Class A FET circuitry and Boost switch

all mono channels feature 3-band EQ with sweepable midrange (MusiQ EQ design)

independent level control for each input

Output Routing

main LR mix outputs on XLR with insert points

stereo monitor outputs

dedicated stereo record output

stereo playback input

separate aux and FX sends

1 pre-fade aux send

1 post-fade FX send

USB Interface

2 channel USB audio in/out

16 bit / 44.1kHz or 48kHz sampling rate

routing options:

main mix L R

aux and FX bus

separate stereo record bus

return routing to playback input or stereo channel

Integrated FX

16 internal FX programs tailored for live performance

adjustable via dedicated FX return and channel send

tap tempo and parameter control from front panel

Monitoring and Control

comprehensive monitoring section with separate level control

headphone output with cue mix control

signal present and peak LEDs per channel

Construction

rugged metal chassis

Neutrik connectors for mic and jack inputs

compact and portable, suited for live and project studio use
