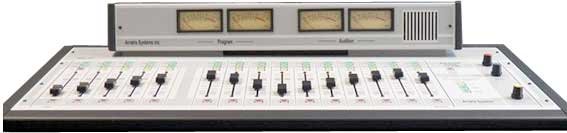

ARC-15BP

15 Channels. Analog Console. Flexible & Powerful.

15 Channels - with 15 channels you can connect more and do more. 8 to 12 Line In inputs allows you to connect to CD players, mp3 players and other analog sources. It's a lot of board for not a big price.

Mic Channels - chose between 1 to 5 mic channels with optional 48V phantom power.

Real VU Meters - stylish and easy to use VU meters for Program & Audition buses.

No More RF - has balanced inputs & outputs for use in high RF environments.

Built Tough - professional throughout, with multi-million operation LED lighted switches and

electronic audio switching. Built for ANY environment.

Socketed IC's - one IC is surface mounted, all of the rest are socketed for ease of service.

2 Stereo output buses.

Program & Audition with mono mixdowns.

Active balanced - All outputs & inputs are active balanced.

Stereo or Mono - Both stereo & mono outputs for 2 output buses.

Listen - Monitor & 8 ohm Headphone output as well as built in Cue speaker talkback system with built-in amplifier.

4 types of Inputs.

More options, more power.

1 - 5 Mic Channel - Channel 1 is a dedicated mic channel for the board operator. Channel 2-5 can be internally set up as either mono mic or stereo line level inputs. The console therefore supports up to 5 mics and is perfect for talk studio applications. Mic channels 2-5 have remote logic control for turret applications.

Stereo Line level Channel - Channels 6-13 are stereo, line level input channels appropriate for source devices like CD players, MP3 players, network feeds, etc. The unbalanced model is ideal for studios where these sources are located locally in the studio itself. The balanced model allows you to connect to sources (such as a satellite feed) that are originated in other studios where the wiring could be long and introduce hum & noise.

PC-USB input Channel - Play & Record in digital with a Windows PC or MAC, USB sound card functionality built directly into the module, record audio onto a PC or playback audio from the PC over the air, & LED illuminated swtiches.

Telephone Channel - Channel fifteen (15) is a dedicated telephone channel that easily connects to an external telephone hybrid. The caller can talk to you through the Cue system while a 'Push to Talk' button enables the Control Room mic to talk off-line to the caller. Just select the Air or Recording bus then turn the channel on. What could be easier

Phone line system.

Connect your phone hybrid for a powerful phone system.

Phone Channel - channel 15 is a dedicated telephone channel that easily connects to an external telephone hybrid.

Talkback Cue System - the caller can talk to you through the Cue system while a Talkback button enables the Control Room mic to talk off-line to the caller.

USB input channel.

Connect to any PC (Windows XP, 7) or MAC for play & record.

Use any software - Use any automation or production software to either play or record.

Playback - play any audio from your PC onto the board and then over the air. Play YouTube clips or any audio from your PC or MAC.

Recording - record audio coming from your board onto your PC or MAC with any production software.

Easy Setup - connect with a simple USB cable.

Start & Stop Automation - with our automation system, you may start & stop the automation system.

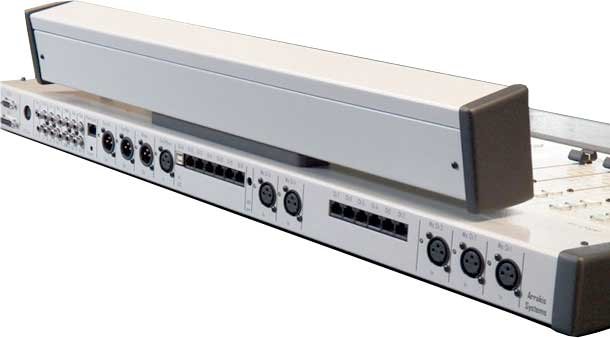

RJ45 Connections.

Quick & easy install with RJ45 connections.

World Standard - all IO is world standard RJ45.

Cables Provided - 10 foot cables (connectorized at one end with molded RJ45 connectors) are provided for the inputs. This is en expensive option for most consoles but is standard with the ARC-15.

Quick Setup - as simple as plug and play.

Premade wiring - optional cables are available for common connections such as XLR & RCA. Check the accessories section for more information.

Low Profile Design.

Defining what attractive is.
Modern & Timeless - The ARC series has a modern low profile & sleek design that is timeless.

110 or 220VAC.

Autosensing international power supply.
Autosensing - power supply autosenses between 110 & 220 VAC for domestic or international installations.

Stereo Line Input

Freq Response:

+(-).5dB 20-20kHz

S/N:

-82dB typ, +8dBu in, +8 dBu out

THD:

.01% typ, +8dBu in, +8 dBu out

CMRR:

-75dB typ 1kHz

Max Input:

+23dBu, balanced

Mono Mic Input

Freq Response:

+(-).5dB 20-20kHz

EIN:

-115dBu typ, -50dBu in, +8 dBu out

THD:

.05% typ , -50dBu in, +8 dBu out

CMRR:

-60dB typ 1kHz

Impedances

Mic Input:

> 2000 ohms

Line Input:

> 10000 ohms

Outputs:

< 100 ohms

System

Max Output:

+23dBu balanced

Stereo Separation:

-75dB typ 1KHz

Pgm to Aud XTalk:

-80dB typ 1KHz, -70dB typ 20kHz

Cue to Pgm XTalk:

-90dB typ 1KHz, -75dB typ 20kHz

On Air Light Logic:

12VDC/ground logic, 50mA max

Power Supply

110vac:

220 VAC, 50-60 hz, autosensing

Certified:

UL, CE, CS, CB

External inline module:

3"W x 5 3/4"L x 1 3/4"D

15 Channels. Analog Console. Flexible & Powerful.

15 Channels:

with 15 channels you can connect more and do more. 8 to 12 Line In inputs allows you to connect to CD players, mp3 players and other analog sources. It's a lot of board for not a big price.

Mic Channels:

chose between 1 to 5 mic channels with optional 48V phantom power.

Real VU Meters:

stylish and easy to use VU meters for Program & Audition buses.

No More RF:

has balanced inputs & outputs for use in high RF environments.

Built Tough:

professional throughout, with multi-million operation LED lighted switches and electronic audio switching. Built for ANY environment.

Socketed IC's:

one IC is surface mounted, all of the rest are socketed for ease of service.

2 Stereo output buses. Program & Audition with mono mixdowns.

Active balanced:

All outputs & inputs are active balanced.

Stereo or Mono:

Both stereo & mono outputs for 2 output buses.

Listen:

Monitor & 8 ohm Headphone output as well as built in Cue speaker talkback system with built-in amplifier.

4 types of Inputs. More options, more power.

1-5 Mic Channel:

Channel 1 is a dedicated mic channel for the board operator. Channel 2-5 can be internally set up as either mono mic or stereo line level inputs. The console therefore supports up to 5 mics and is perfect for talk studio applications. Mic channels 2-5 have remote logic control for turret applications.

Stereo Line level Channel:

Channels 6-13 are stereo, line level input channels appropriate for source devices like CD players, MP3 players, network feeds, etc. This balanced model allows you to connect to sources (such as a satellite feed) that are originated in other studios where the wiring could be long and introduce hum & noise.

PC-USB input Channel:

Play & Record in digital with a Windows PC or MAC, USB sound card functionality built directly into the module, record audio onto a PC or playback audio from the PC over the air, & LED illuminated swtiches.

Telephone Channel:

Channel fifteen (15) is a dedicated telephone channel that easily connects to an external telephone hybrid. The caller can talk to you through the Cue system while a 'Push to Talk' button enables the Control Room mic to talk off-line to the caller. Just select the Air or Recording bus then turn the channel on. What could be easier

Phone line system. Connect your phone hybrid for a powerful phone system.

Phone Channel:

channel 15 is a dedicated telephone channel that easily connects to an external telephone hybrid.

Talkback Cue System:

the caller can talk to you through the Cue system while a Talkback button enables the Control Room mic to talk off-line to the caller.

USB input channel. Connect to any Windows PC or MAC for play & record.

Use any software:

Use any automation or production software to either play or record.

Playback:

play any audio from your PC onto the board and then over the air. Play YouTube clips or any audio from your PC or MAC.

Recording:

record audio coming from your board onto your PC or MAC with any production software.

Easy Setup:

connect with a simple USB cable.

Start & Stop Automation:

with our automation system, you may start & stop the automation system.

RJ45 Connections. Quick & easy install with RJ45 connections.

World Standard:

all IO is world standard RJ45.

Quick Setup:

as simple as plug and play.

Premade wiring:

optional cables are available for common connections such as XLR & RCA. Check the accessories section for more information.

Low Profile Design. Defining what attractive is.

Modern & Timeless:

The ARC series has a modern low profile & sleek design that is timeless.

110 or 220VAC. Autosensing international power supply.

Autosensing:

power supply autosenses between 110 & 220 VAC for domestic or international installations.

CONSOLE DIMENSIONS

Depth:

15 inches / 381mm

Height:

6 inches / 153mm

Width:

33 inches / 839mm

SHIPPING DIMENSIONS

BOX #1

Weight:

40 pounds/ 18kg

Depth:

37 inches / 940mm

Height:

19 inches / 483mm

Width:

12 inches / 305mm

*These values may change at any time without notice.

PACKAGE CONTENT

ARC-15 Console

Operations Manual

Power Supply (110V / 220V auto-sensing)

15-pin, sub-D, solder cup, DB15M connector

RCA audio cable

RJ45 cable (qty 6)

DB9MF molded serial cable

USB cable

3.5 mm audio cable
