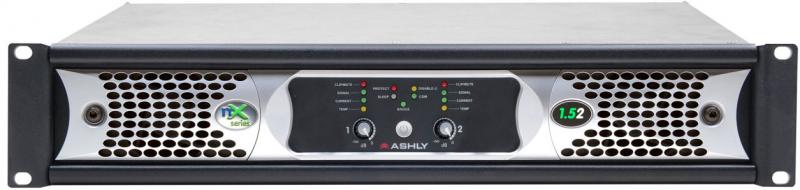

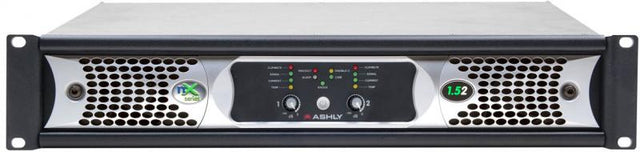

The Ashly nx1.52 is a 2 channels amplifier with programmable output. Use the rear panel DIP switches to program each channel.
The unit shall be a 2 channel multi-mode amplifier capable of driving 2 Ohm loads at full power. The maximum rated output power shall be 1,500W per channel at Low Z and 70V modes, and 1,250W in 100V mode. There shall be an automatic but defeatable sleep mode consuming <1W. A switch mode power supply shall auto-detect 120VAC or 240VAC mains, and a Neutrik powerCON shall be used for the AC cord. Each channel shall have selectable output mode of Low Z, 70V, or 100V, an 80Hz high-pass filter, input limiter, and input gain settings of 26dB, 32dB, 38dB, or 1.4V. Each channel shall have remote DC level control. Input connectors shall be Neutrik XLR/TRS combo jack and Euroblock, while output connectors shall be Neutrik speakON.
The unit shall have a front panel power switch and level controls that can be disabled. LEDs shall indicate Protect, Sleep, Disabled, and Bridge mode status, as well as Temperature, Output Current, Output Signal, and Clipping/Mute status per channel. The amplifier shall have temperature dependent variable speed forced-air cooling. The unit shall weigh <22 lbs (10kg), measure 19"W x 3.5"H x 16.8"D (483mm x 89mm x 428mm), and mount in a standard 19" rack. There shall be a five year warranty for units purchased in the US. No other unit shall be acceptable unless all specifications represented herein are met or exceeded and submitted in writing by an independent testing agent.
Power Amplifier 2 x 1,500 Watts @ 2High output: Up to 12,000W in 2UAutomatic sleep-mode, <1W on all nX amplifiersEthernet monitoring and control, RTC event scheduler and integrated programmable power sequencing delay (nXe & nXp only)Load impedance monitoring (nXp only)Optional AES3 digital-in w/ pass-through, CobraNet and DanteNetworkable, serial, and passive remote control optionsCombo and Euroblock inputs and Neutrik speakON connectivityNeutrik powerCON easy-disconnect power cord
Voltage Gain : Selectable at 26dB, 32dB, 38dB, or 1.4VDamping Factor : >250 (8 Ohms load <1kHz)Input High Pass Filter : 80Hz 2nd orderDistortion (SMPTE, typical) : <0.5%Distortion (THD-N, typical) : <0.5% (8 Ohms, 10dB below rated power, 20Hz-20kHz)Channel Separation : -75dB (dB from full output, 1kHz)Signal to Noise (20Hz-20kHz, unweighted) : >111dB (all 1.5x models)Frequency Response : 20Hz-20kHz, +/-0.05dBBalanced Input Connector : Euroblock 3.5mm, 1/4" TRS and XLR Combo jackInput Impedance : 10k OhmsMaximum Input Level : +21dBuSpeaker Output Connector : Neutrik speakONRemote DC Level Control : Euroblock 3.5mm - Gnd, CV, V+ per inputAttenuators (per channel) : Front panel and remote. Fully off = MuteAmplifier Protection : Inrush current limitation, temperature monitoring, output over-power protection, mains fusesAirflow : In through sides, Out through frontCooling : Continuously variable temperature controlled axial fan(s)Environmental : 32-113 deg F, (0-45 deg, C) (noncondensing)Unit Weight : 22lb ( 10Kg)Shipping Weight : 28lb ( 12.8Kg )Unit Dimensions : 19"W x 3.5"H x 16.84"D (483mm x 89mm x 428mm)Shipping Dimensions : 24.5"W x 22"H x 5.25"D (622mm x 559mm x 133mm)
