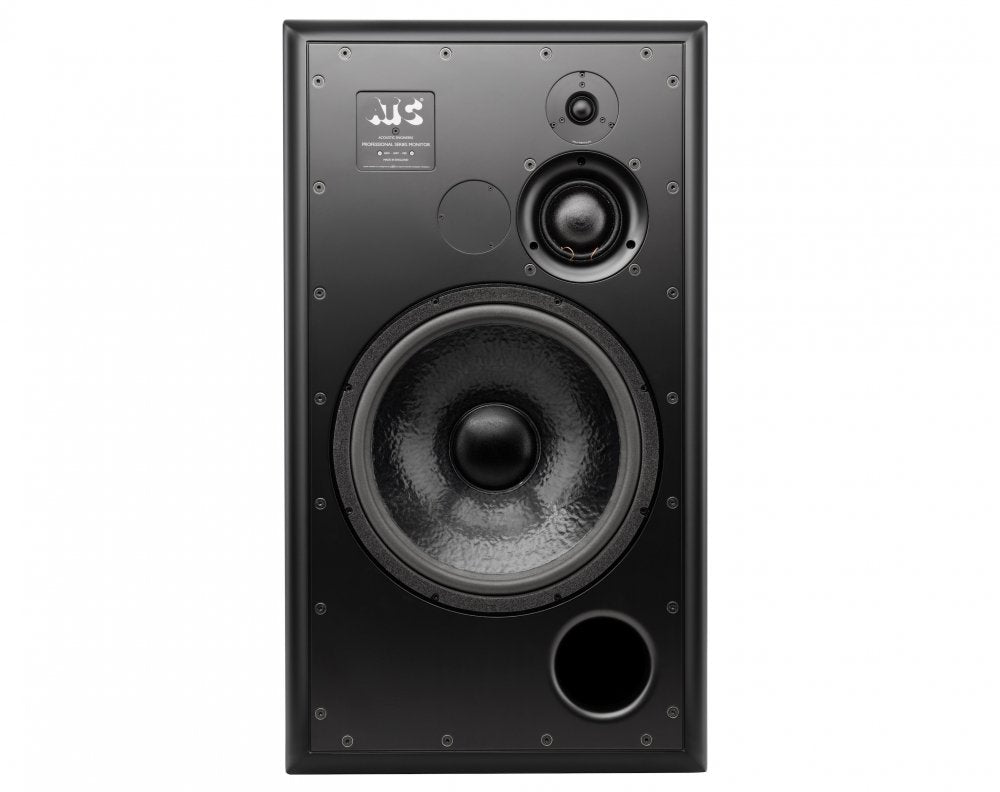

The ATC Loudspeakers SCM150ASL Pro is a further development of the SCM100ASL Pro, featuring an extended bass, greater headroom and a higher dynamic range.
The SCM150ASL Pro substitutes a larger 375mm Super Linear bass driver and increases the enclosure size to 150 litres, adding an extended band with and high dynamic range. These monitors offer medium sized studios the classic ATC quality constuction, and the accurate and aritculate sound needed for producing complex and well balanced mixes. the SCM150ASL Pro are one of the best investments any studio can make.
ATC 25mm/1" Dual Suspension 'S-Spec' Tweeter.Full "SL" spec 15/375mm bass driver.ATC 75mm "Super Dome" mid driver.On board ATC grounded source 350W Tri-Amp Pack.LF contour control.Clip indication.
Drivers: HF 1/25mm, Mid 3/75mm, LF 15/375mm
Amplitude Linearity (±2dB): 60Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 25Hz, 22kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 117dB
Crossover Frequencies: 380Hz, 3.5kHz
Input Connectors: Male XLR
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V - 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10k
Amplifier Output: Bass 200W, Mid 100W, High 50W
Filters: Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
Dimensions (HxWxD): 884 x 498 x 568mm (34.8 x 19.6 x 22.4) Depth with amplifier at rear adds 3
Weight: 75kg / 165lbs
Numéro de pièce du fabricant : SCM150ASLPRO
