TRS out only to DB25 Female Connectors; Quick-Switch? Normalling. Digital Ready.

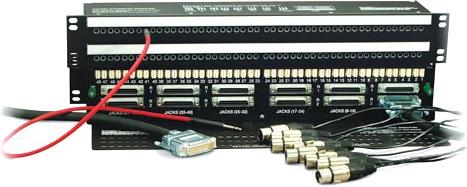

The next generation of Shorti Patchbays has arrived; this 2x48 audio patchbay is wired to DB25 connectors. This unit features exceptional flexibility with the Audio Accessories, Inc. exclusive Quick-Switch normalling system located on the rear of the panel. The Quick-Switch normalling allows you to set the individual normals on a per jack pair basis. This enables you to full-normal (FN), half-normal (HN) or non-normal (NN) by sliding the switches into the appropriate position. You also have grounding options: isolated, bussed, or grounds vertically strapped (GVS).
highlights
2x48x1.5RU MINI (Bantam/TT) Audio Patchbay.
Tip, Ring and Sleeve of each jack wired out to a DB25 Female connector (8 jacks in each).
DB-25 Connector pinned out for ProTools interface.
Reconfigurable normals and ground located on the rear of the unit.
Cabling support tray for bundling down incoming cables.
