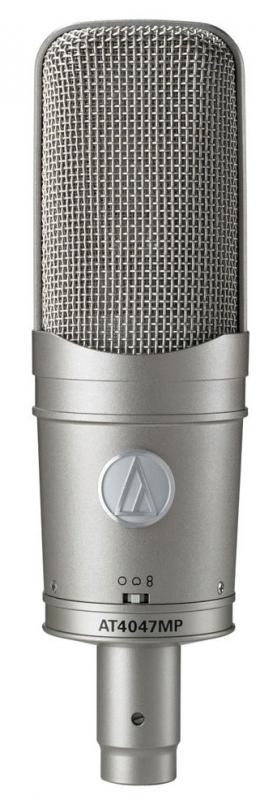

Audio-Technica's AT4047MP delivers vintage sound in a multi-pattern design with selectable omnidirectional, cardioid, and figure-of-eight polar patterns.
The microphone's transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs. With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.
Caractéristiques
Three switchable polar patterns: cardioid, omnidirectional, figure-of-eight
Engineered to meet the critical acoustic requirements of professional recording, broadcast and sound reinforcement
Transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs
Exceptionally low self-noise, wide dynamic range and high SPL capability
Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
Vintage silver-matte finish on microphone and shock mount
Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
Custom shock mount provides superior isolation
Integral 80 Hz high-pass filter switch and 10 dB pad switch
Certified by the METAlliance (Music Engineering and Technology Alliance)
Spécifications
ELEMENT : Externally-polarized (DC bias) condenser POLAR PATTERN : Cardioid and Figure-of-eight FREQUENCY RESPONSE : 20-18,000 Hz LOW FREQUENCY ROLL-OFF : 80 Hz, 12 dB/octave OPEN CIRCUIT SENSITIVITY : -42 dB (7.9 mV), re 1V at 1 Pa IMPEDANCE : 100 ohms MAXIMUM INPUT SOUND LEVEL :
155 dB SPL, 1 kHz at 1% T.H.D.;
165 dB SPL, with 10 dB pad (nominal) NOISE : 14 dB DYNAMIC RANGE (typical) : 141 dB, 1 kHz at Max SPL SIGNAL-TO-NOISE RATIO : 80 dB, 1 kHz at 1 Pa PHANTOM POWER REQUIREMENTS : 48V DC, 3.4 mA typical POLAR SELECTION : Flat, roll-off; 10 dB pad (nominal) WEIGHT : 524 g (18.5 oz) DIMENSIONS :
188.0 mm (7.40") long,
53.4 mm (2.10") maximum body diameter OUTPUT CONNECTORS : Integral 3-pin XLRM-type ACCESSORIES FURNISHED :

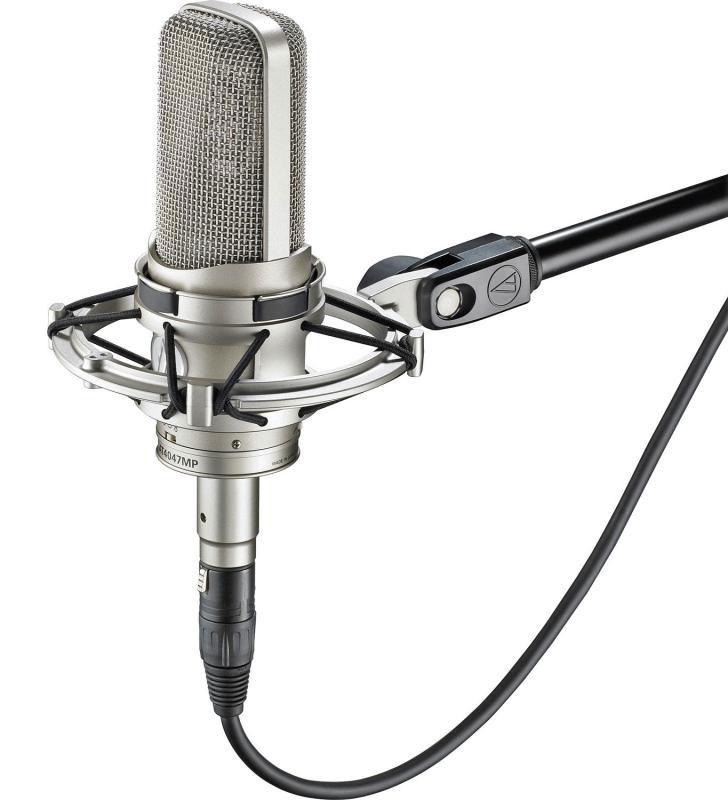

AT8449/SV shock mount for 5/8"-27 threaded stands;
microphone dust cover;
protective carrying case AUDIO-TECHNICA CASE STYLE : R1 POLAR PATTERN : CARDIOID, OMNIDIRECTIONAL, FIGURE-OF-EIGHT
