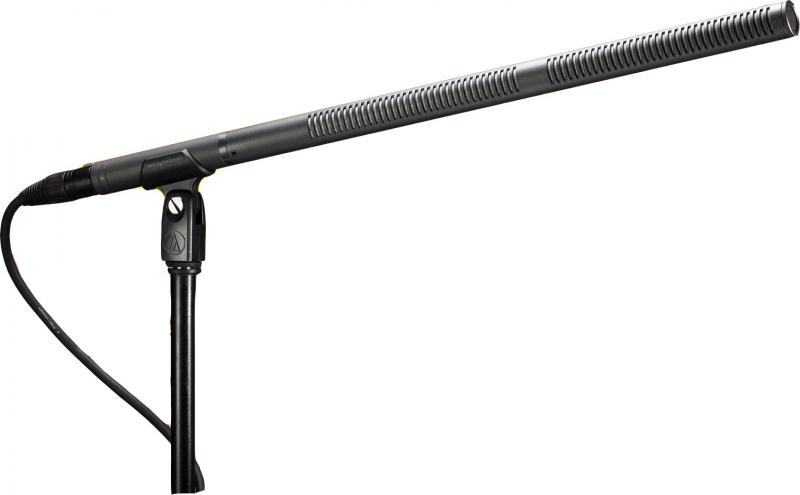

Audio Technica AT8015

The Audio Technica AT8015 Line + Gradient Condenser Microphone, designed for video production and broadcast (ENG/EFP) audio acquisition.

The AT8015 provides the narrow acceptance angle desirable for long-distance sound pickup, along with excellent sound rejection from the sides and rear of mic. The roll-off position reduces the pickup of low-frequency ambient noise (such as traffic, air-handling systems, etc.), room reverberation and mechanically coupled vibrations.
Features
  • Designed for video production and broadcast (ENG/EFP) audio acquisition
  • Provides the narrow acceptance angle desirable for long-distance sound pickup
  • Excellent sound rejection from the sides and rear of mic
  • Switchable low-frequency roll-off
  • Operates on battery or phantom power
  • RoHS compliantfree from all substances specified in the EU directive on hazardous substances
  • Specifications
  • ELEMENT: Fixed-charge back plate, permanently polarized condenser
  • POLAR PATTERN: Line + gradient
  • FREQUENCY RESPONSE: 40-20,000 Hz
  • LOW FREQUENCY ROLL-OFF: 80 Hz, 12 dB/octave
  • OPEN CIRCUIT SENSITIVITY: Phantom: -38 dB (12.5 mV) re 1V at 1 Pa, Battery: -39 dB (11.2 mV) re 1V at 1 Pa
  • IMPEDANCE : Phantom: 250 ohms, Battery: 300 ohms
  • MAXIMUM INPUT SOUND LEVEL: Phantom: 132 dB SPL, 1 kHz at 1% T.H.D.- Battery: 120 dB SPL, 1 kHz at 1% T.H.D.
  • DYNAMIC RANGE (typical): Phantom: 110 dB, 1 kHz at Max SPL, Battery: 98 dB, 1 kHz at Max SPL
  • SIGNAL-TO-NOISE RATIO: 72 dB, 1 kHz at 1 Pa
  • PHANTOM POWER REQUIREMENTS: 11-52V DC, 2 mA typical
  • BATTERY TYPE: 1.5V AA/UM3
  • BATTERY CURRENT / LIFE: 0.4 mA / 1200 hours typical (alkaline)
  • SWITCH: Flat, roll-off
  • WEIGHT: 195 g (6.9 oz)
  • DIMENSIONS: 460.0 mm (18.11") long, 21.0 mm (0.83") diameter
  • OUTPUT CONNECTOR: Integral 3-pin XLRM-type
  • ACCESSORIES FURNISHED: AT8405a stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8135 windscreen; battery; protective carrying case
  • AUDIO-TECHNICA CASE STYLE: SG3
  • Reviews
    Price *
    $595.00
    $429.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the AT8015, please visit the website of Audio Technica
