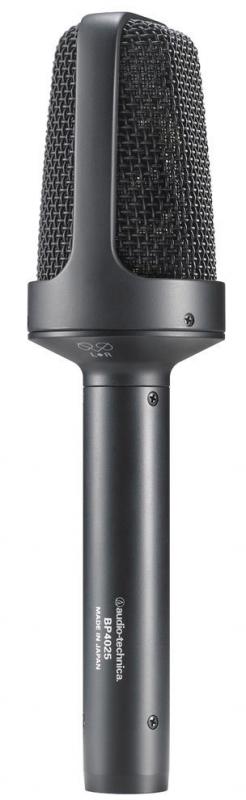

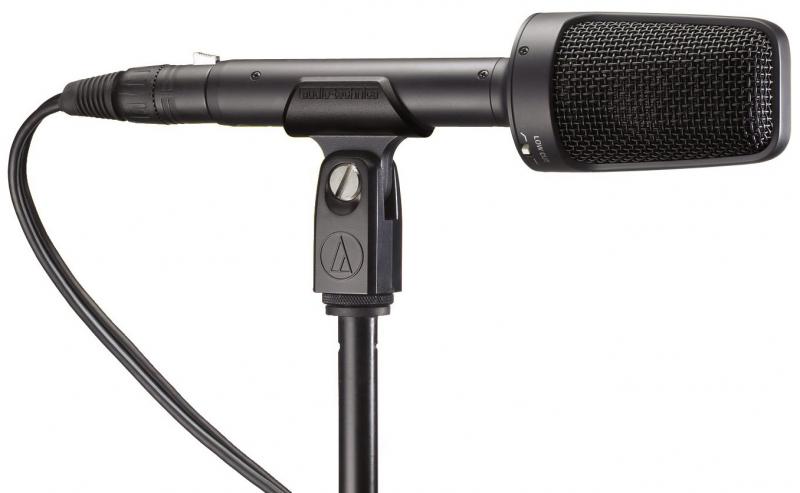

Audio Technica BP4025

The Audio Technica BP4025 is a X/Y Stereo Field Recording Microphone. Innovative coincident capsule configuration produces accurate stereo image in smaller housing.

Designed for broadcast and professional recording, Audio-Technica's BP4025 stereo condenser offers large-diaphragm capsules in an innovative coincident capsule configuration. This allows for a smaller housing while producing an X/Y stereo image with the spatial impact and realism of a live sound field. Ideal for use with professional audio and video equipment, the microphone is fully RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS).
Features
  • Large-diaphragm capsules offer pristine sound quality and exceptionally low noise
  • Innovative coincident capsule configuration produces accurate stereo image in smaller housing
  • Compact, lightweight design is ideal for camera-mount use
  • Excellent channel separation
  • Phantom power operation-for use with professional equipment
  • Switchable low-frequency roll-off and 10 dB pad
  • Includes one balanced cable (two 3-pin XLRM-type connectors at output)
  • RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)
  • Specifications
  • ELEMENT: Fixed-charge back plate permanently polarized condenser
  • POLAR PATTERN: X/Y Stereo
  • FREQUENCY RESPONSE: 20-17,000 Hz
  • LOW FREQUENCY ROLL-OFF: 80 Hz, 12 dB/octave
  • OPEN CIRCUIT SENSITIVITY: -32 dB (25.1 mV) re 1V at 1 Pa
  • CHANNEL BALANCE: <2.5 dB
  • IMPEDANCE: 170 ohms
  • MAXIMUM INPUT SOUND LEVEL: 145 dB SPL, 1 kHz at 1% T.H.D. - 155 dB SPL, with 10 dB pad (nominal)
  • DYNAMIC RANGE (typical): 131 dB, 1 kHz at Max SPL
  • SIGNAL-TO-NOISE RATIO: 80 dB, 1 kHz at 1 Pa
  • PHANTOM POWER REQUIREMENTS: 11-52V DC, 7 mA typical (both channels total)
  • SWITCH: Flat, roll-off; 10 dB pad (nominal)
  • WEIGHT: 269 g (9.5 oz)
  • DIMENSIONS: 186.0 mm (7.32") long, 47.6 mm (1.87") head diameter 21.0 mm (0.83") body diameter
  • OUTPUT CONNECTOR: Integral 5-pin XLRM-type
  • CABLE: 5.0 m (16.5') long, 8 conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end
  • ACCESSORIES FURNISHED: AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; soft protective pouch
  • AUDIO-TECHNICA CASE STYLE: S12
  • Reviews
    Price *
    $1299.00
    $935.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the BP4025, please visit the website of Audio Technica
